URD Cable vs USE-2 Cable: What's the Difference?
2026-05-18
As modern power distribution networks expand, underground electrical systems are increasingly used to improve reliability and reduce environmental impact. Two commonly used cable types in underground installations are URD cable and USE-2 cable.
Although these cables may appear similar, they serve different purposes in secondary distribution networks, service entrances, and underground utilities.
What is URD Cable?
URD Cable stands for Underground Residential Distribution cable, a type of insulated cable used for underground electrical distribution systems.
It is widely used by utility companies to deliver power from distribution transformers to residential or commercial buildings.
URD Cable Definition
|
Term |
Description |
|
URD Cable |
Underground cable used for residential power distribution |
|
Insulated power cable designed for underground installations |
|
|
Aluminum URD Cable |
Most common URD conductor material |
|
XLPE Insulation |
Cross-linked polyethylene insulation |
Most URD cables are manufactured with aluminum conductors and XLPE insulation, making them suitable for direct burial applications and underground power systems.
URD Cable Structure
URD cables typically consist of multiple insulated conductors assembled together.
Typical URD Cable Construction
|
Component |
Function |
|
Transmits electrical current |
|
|
XLPE insulation |
Provides electrical insulation |
|
Ground reference |
|
|
Jacket (optional) |
Mechanical protection |
URD cables are often manufactured in triplex or quadruplex configurations, depending on the distribution system design.
Common URD Cable Types
URD cables used in residential power networks include several configurations.
|
URD Cable Type |
Description |
|
Triplex URD cable |
Two phase conductors + one neutral |
|
Quadruplex URD cable |
Three phase conductors + neutral |
|
Aluminum URD cable |
Lightweight and cost effective |
|
Direct burial URD cable |
Designed for underground burial |
These cables are widely used for secondary distribution from pole-mounted or pad-mounted transformers.
Triplex vs Quadruplex URD Cable Guide
In Underground Residential Distribution (URD) systems, two of the most common cable configurations are triplex URD cable and quadruplex URD cable. Both are designed for secondary distribution and underground utilities, but they differ in structure, application scenarios, and power distribution capability.
Understanding the differences between these two cable types helps engineers and contractors select the correct cable for service entrances, underground feeders, and residential power networks.
What is Triplex URD Cable?
Triplex URD cable is a three-conductor assembly typically used in single-phase residential distribution systems.
Triplex Cable Structure
|
Component |
Function |
|
Phase conductor 1 |
Carries electrical current |
|
Phase conductor 2 |
Carries electrical current |
|
Neutral conductor |
Ground reference and return path |
Triplex cables are commonly manufactured using aluminum URD cable conductors with XLPE insulation, making them suitable for direct burial applications.
Typical Triplex URD Cable Applications
|
Application |
Description |
|
Residential service lines |
Power supply from the transformer to the house |
|
Small commercial buildings |
Secondary distribution |
|
Underground feeder circuits |
Local power networks |
Because of their simple structure, triplex URD cables are widely used in single-phase distribution systems.

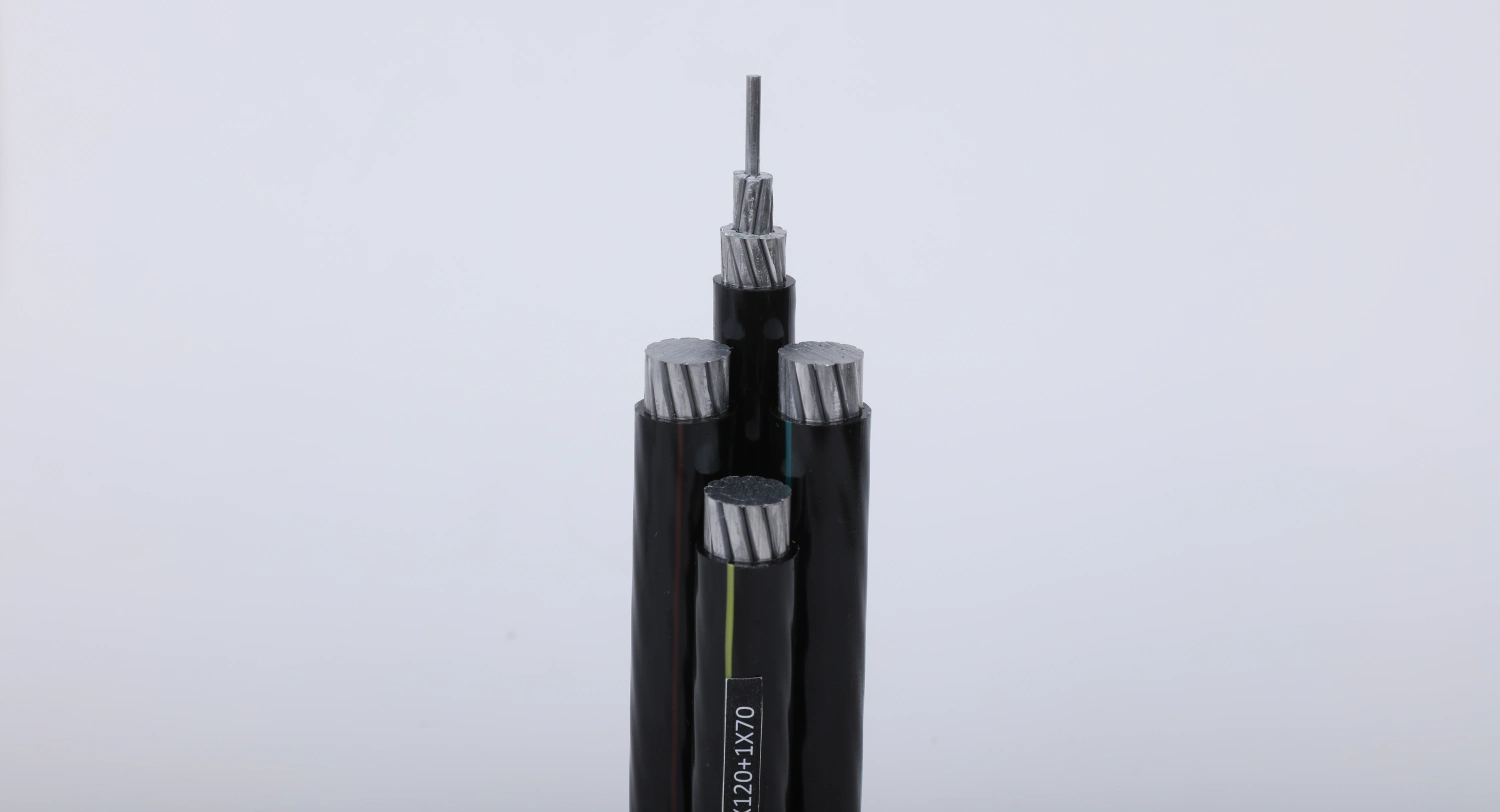

What is Quadruplex URD Cable?
Quadruplex URD cable contains four conductors and is typically used in three-phase underground distribution systems.
Quadruplex Cable Structure
|
Component |
Function |
|
Phase conductor A |
Phase power |
|
Phase conductor B |
Phase power |
|
Phase conductor C |
Phase power |
|
Neutral conductor |
Ground reference |
Quadruplex cables allow utilities to supply three-phase power to residential complexes, commercial facilities, and small industrial loads.
Structural Differences
The primary difference between triplex and quadruplex URD cables is the number of conductors and system configuration.
Triplex vs Quadruplex Structure
|
Feature |
Triplex URD Cable |
Quadruplex URD Cable |
|
Number of conductors |
3 |
4 |
|
Power system type |
Single phase |
Three phase |
|
Neutral conductor |
Yes |
Yes |
|
Typical installation |
Residential service lines |
Distribution networks |
Electrical Performance Comparison
Both cable types are designed for secondary distribution networks, but their electrical capacity differs.
Electrical Characteristics
|
Parameter |
Triplex URD Cable |
Quadruplex URD Cable |
|
Voltage rating |
600V – 15kV |
600V – 15kV |
|
Load capacity |
Moderate |
High |
|
Distribution capability |
Residential |
Commercial and industrial |
|
Installation |
Direct burial |
Direct burial |
Because quadruplex cables support three-phase power, they can deliver higher power loads compared to triplex cables.
Installation Scenarios
Different underground electrical installations require different URD cable configurations.
Recommended Applications
|
Installation Type |
Recommended Cable |
|
Single-family homes |
Triplex URD cable |
|
Residential neighborhoods |
Triplex URD cable |
|
Commercial buildings |
Quadruplex URD cable |
|
Industrial facilities |
Quadruplex URD cable |
|
Utility secondary distribution |
Quadruplex URD cable |
Utility companies often deploy quadruplex URD cables in underground distribution networks, while triplex cables are commonly used for service entrances.
Engineering Selection Tips
When selecting between triplex and quadruplex URD cables, engineers should evaluate several factors.
|
Selection Factor |
Consideration |
|
Electrical load |
Higher loads require a quadruplex |
|
Distribution system |
Single-phase or three-phase |
|
Installation environment |
Underground burial conditions |
|
Future load growth |
Cable capacity requirements |
Choosing the correct configuration ensures safe power distribution, efficient underground utilities, and reliable electrical service.
What is USE-2 Cable?
USE-2 Cable stands for Underground Service Entrance cable, a type of insulated conductor designed primarily for service entrance and underground power supply connections.
USE-2 Cable Definition
|
Term |
Description |
|
USE-2 Cable |
Underground service entrance cable |
|
Cable USE-2 |
Insulated conductor used for service connections |
|
Single conductor |
Most USE-2 cables are single-conductor |
|
XLPE insulation |
High-temperature-rated insulation |
Unlike URD cables, USE-2 cables are typically manufactured as single conductors rather than multi-conductor assemblies.
USE-2 Cable Construction
USE-2 cables are designed to withstand harsh environmental conditions, including underground moisture and high temperatures.
USE-2 Cable Structure
|
Component |
Function |
|
Electrical current transmission |
|
|
XLPE insulation |
Electrical and environmental protection |
|
UV resistance |
Suitable for outdoor installations |
USE-2 cables are rated for wet and dry locations, making them suitable for a wide range of burial applications.

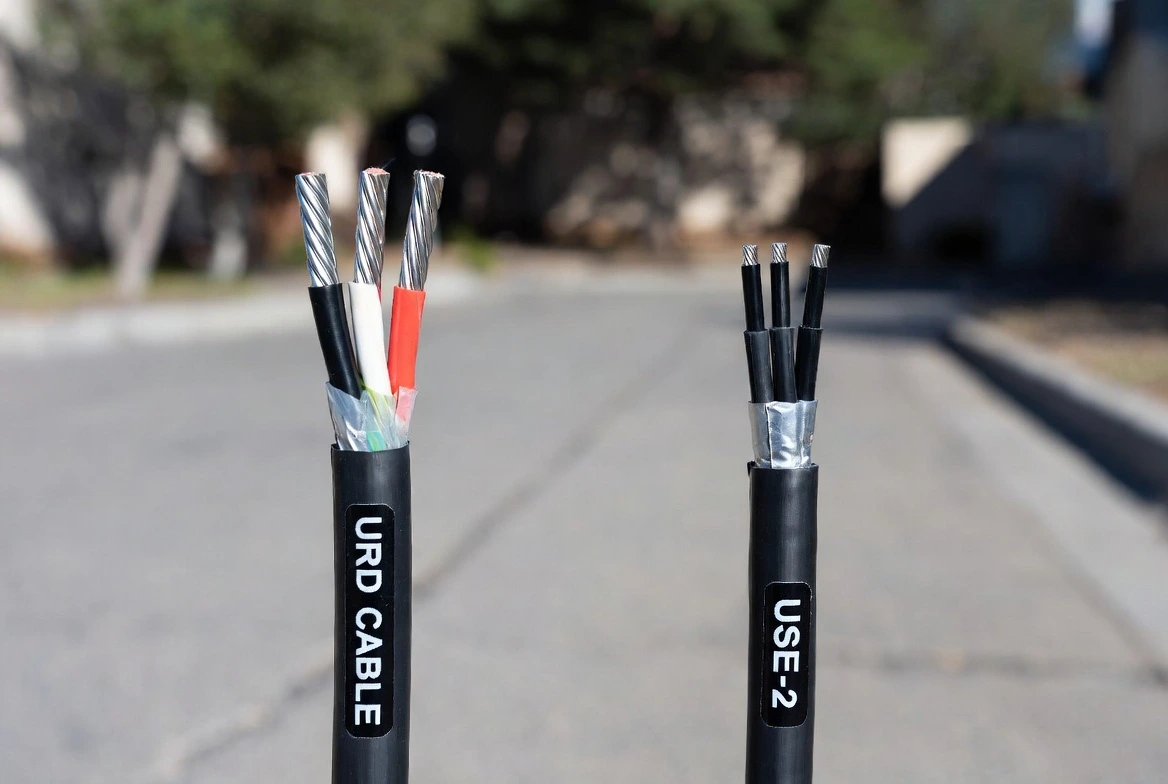

Key Differences Between URD Cable and USE-2 Cable
Although both cables are designed for underground electrical installations, their design and applications differ significantly.
URD vs USE-2 Comparison Table
|
Feature |
URD Cable |
USE-2 Cable |
|
Cable structure |
Multi-conductor assembly |
Single conductor |
|
Typical configuration |
Triplex or quadruplex |
Single conductor |
|
Primary application |
Secondary distribution |
Service entrance |
|
Installation type |
Direct burial of underground utilities |
Underground service connections |
|
Conductor material |
Aluminum |
Aluminum or copper |
|
Insulation |
XLPE insulation |
XLPE insulation |
In short, URD cables are used for distribution networks, while USE-2 cables are used for service entrance connections.
Electrical Performance Comparison
Electrical performance also differs depending on cable design.
Performance Comparison
|
Parameter |
URD Cable |
USE-2 Cable |
|
Voltage rating |
600V – 15kV |
600V |
|
Installation method |
Direct burial |
Conduit or burial |
|
Flexibility |
Moderate |
High |
|
Distribution capability |
High |
Moderate |
Because URD cables contain multiple conductors, they are better suited for secondary power distribution networks.
URD Cable Size Chart ( AWG / kcmil)
In Underground Residential Distribution (URD) cable systems, selecting the correct conductor size is critical for ensuring safe current carrying capacity, minimal voltage drop, and long-term reliability.
URD cables are commonly manufactured using aluminum conductors with XLPE insulation, and they are available in a wide range of sizes to meet different secondary distribution and service entrance requirements. The following chart lists commonly used URD cable sizes in AWG and kcmil, along with their approximate cross-sectional areas and typical applications.
URD Cable Size Reference Table
|
Conductor Size (AWG/kcmil) |
Cross Section (mm²) |
Typical Ampacity |
Typical Application |
|
6 AWG |
13.3 mm² |
65 A |
Small service feeders |
|
4 AWG |
21.1 mm² |
85 A |
Residential branch supply |
|
2 AWG |
33.6 mm² |
115 A |
Small residential distribution |
|
1 AWG |
42.4 mm² |
130 A |
Service entrances |
|
1/0 AWG |
53.5 mm² |
150 A |
Underground residential feeders |
|
2/0 AWG |
67.4 mm² |
175 A |
Secondary distribution |
|
3/0 AWG |
85.0 mm² |
200 A |
Large residential feeders |
|
4/0 AWG |
107 mm² |
230 A |
Transformer connections |
|
250 kcmil |
127 mm² |
255 A |
Underground utilities |
|
350 kcmil |
177 mm² |
310 A |
Large distribution systems |
|
500 kcmil |
253 mm² |
380 A |
Utility power distribution |
|
750 kcmil |
380 mm² |
475 A |
Heavy load underground networks |
Engineering Notes for URD Cable Sizing
When selecting URD electrical cables, engineers must evaluate several key factors:
|
Design Factor |
Importance |
|
Load current |
Determines conductor size |
|
Voltage drop |
Affects system efficiency |
|
Installation distance |
Longer distances require larger cables |
|
Soil conditions |
Thermal properties influence ampacity |
|
Future expansion |
Allows additional load capacity |
For most secondary distribution systems, utilities select 1/0 to 4/0 aluminum URD cable sizes, which provide a balance between cost efficiency and electrical capacity.
Typical Applications
Both cables are widely used in underground electrical infrastructure.
URD Cable Applications
|
Application |
Description |
|
Residential power distribution |
From the transformer to the homes |
|
Underground utilities |
Utility distribution systems |
|
Secondary distribution networks |
Local electrical supply |
USE-2 Cable Applications
|
Application |
Description |
|
Service entrances |
Utility to building connection |
|
Underground feeder circuits |
Electrical supply lines |
|
PV array connections |
Installation Considerations
When installing underground cables, several factors must be evaluated.
Key Installation Factors
|
Factor |
Importance |
|
Soil conditions |
Affect cable protection |
|
Burial depth |
Required for safety |
|
Conduit usage |
Protects cables in high-traffic areas |
|
Temperature rating |
Prevents insulation degradation |
Both URD and USE-2 cables typically use XLPE insulation, which provides excellent resistance to moisture, chemicals, and high temperatures.
Advantages of URD Cable & USE-2 Cable
URD Cable Key Benefits
URD cables offer several benefits for utility distribution systems.
|
Advantage |
Explanation |
|
Cost effectiveness |
Aluminum conductors reduce cost |
|
Reliable distribution |
Designed for secondary networks |
|
Direct burial capability |
No conduit required |
|
Long service life |
Durable XLPE insulation |
These features make URD cables ideal for underground residential distribution systems.
USE-2 Cable Key Benefits
USE-2 cables are widely used because of their installation flexibility and durability.
|
Advantage |
Explanation |
|
High temperature rating |
Up to 90°C |
|
Moisture resistance |
Suitable for wet locations |
|
UV resistance |
Outdoor installation capable |
|
Flexible installation |
Suitable for service entrances |
These characteristics make the USE-2 cable a reliable solution for underground power supply connections.
Choosing the Right Cable
Selecting the correct cable type depends on the electrical system design and application requirements.
Selection Guidelines
|
Application |
Recommended Cable |
|
Secondary distribution networks |
URD Cable |
|
Underground service entrance |
USE-2 Cable |
|
Utility residential distribution |
URD Cable |
|
Solar system feeder |
USE-2 Cable |
Understanding these differences ensures safe and efficient electrical installations.
URD Cable Size Calculator
Selecting the correct URD cable size ensures safe and efficient power distribution in underground networks.
A simplified sizing method commonly used by engineers is based on current demand and voltage drop limits.
Basic Cable Sizing Formula
Cable Size = Load Current × Distance × Correction FactorVoltage Drop Formula
Voltage Drop (%) = (2 × Current × Resistance × Distance) / System VoltageExample Calculation
|
Parameter |
Example Value |
|
Load current |
180 A |
|
Distance |
120 m |
|
System voltage |
240 V |
|
Recommended cable |
3/0 URD cable |
Engineering Guidelines
When sizing URD cables, engineers should consider:
- Maximum load current
- Acceptable voltage drop (usually 3–5%)
- Installation environment
- Future load expansion
Correct cable sizing ensures stable secondary distribution and long-term reliability of underground utilities.
URD vs USE-2 vs XHHW Cable Comparison
Although URD cable and USE-2 cable are widely used in underground systems, another cable type frequently used in electrical installations is XHHW wire.
Each cable type has different design characteristics and application scenarios.
Cable Type Comparison Table
|
Feature |
URD Cable |
USE-2 Cable |
XHHW Cable |
|
Cable structure |
Triplex or quadruplex |
Single conductor |
Single conductor |
|
Primary application |
Secondary distribution |
Service entrance |
|
|
Installation type |
Direct burial |
Burial or conduit |
Conduit installation |
|
Conductor material |
Aluminum |
Aluminum or copper |
Copper or aluminum |
|
Insulation |
XLPE insulation |
XLPE insulation |
XLPE insulation |
|
Voltage rating |
Up to 15kV |
600V |
600V |
Application Overview
|
Cable Type |
Typical Use |
|
URD Cable |
Underground residential distribution |
|
USE-2 Cable |
Service entrance and feeders |
|
XHHW Wire |
Industrial and commercial wiring |
Understanding these cable differences helps electrical engineers select the most appropriate cable for underground power systems, service entrances, and building wiring.
Conclusion
Both URD Cable and USE-2 Cable play important roles in modern underground electrical systems.
- URD cables are primarily used for secondary power distribution in residential networks.
- USE-2 cables are designed for service entrances and underground feeder circuits.
While both cable types feature XLPE insulation and underground installation capability, their design, structure, and applications differ significantly.
Selecting the correct cable ensures reliable power distribution, safe electrical installations, and long-term system performance in underground utilities and service entrance systems.
FAQ Section
What is the URD cable used for?
URD cable is primarily used for underground residential distribution systems, delivering electricity from transformers to homes and buildings.
Is the URD cable the same as the USE-2 cable?
No. URD cables are multi-conductor distribution cables, while USE-2 cables are single conductors used for service entrance and feeder circuits.
Can the URD cable be used for direct burial?
Yes. Most URD electrical cables are designed for direct burial applications, thanks to durable XLPE insulation.
What insulation is used in URD cables?
URD cables typically use cross-linked polyethylene (XLPE) insulation, which provides excellent resistance to moisture and heat.
Related Articles
Related Products
125kVA Oil Immersed Transformer
125kVA Oil Immersed Transformer has the characteristics of high efficiency and low loss, which can reduce power consumption and operation cost, and has significant social benefits. The NPC ELECTRIC 125kva Oil Immersed Transformer, manufactured and supplied by a leading Chinese manufacturer, is are highly advanced electrical device engineered to meet the rigorous demands of modern power distribution systems. These transformers are renowned for their exceptional durability, efficiency, and reliability. As a trusted supplier in China, the manufacturer offers a comprehensive range of 125kVA Oil Immersed Transformers tailored to suit various applications, ensuring optimal performance and long-term value to customers worldwide.
4 Spaniel Aluminum Conductor Duplex Overhead Service Drop Cable
Introducing the 4 Spaniel Duplex Service Drop Cable, a versatile overhead solution for low-voltage secondary distribution. Built with two 4 AWG aluminum conductors (7-strand) insulated with polyethylene or XLPE and formed into a duplex assembly, it meets ASTM and ICEA requirements for 600V service. The tough insulation offers outstanding protection against UV rays, moisture, tree contact, and abrasion. Compact duplex design provides self-support and easy pulling during installation. The 4 Spaniel Duplex Service Drop Cable supports efficient power transfer with low voltage drop and high durability in extreme temperatures. Popular for its lightweight construction and reduced installation time, it is the go-to choice for electricians and utilities. Widely deployed in housing developments, farm services, and temporary power setups, this cable ensures safe, long-lasting overhead connections from distribution transformers to customer service entrances worldwide.
10kV Oil Immersed Transformer
The 10kV Oil Immersed Transformer is a high-performance, three-phase distribution transformer engineered for reliable medium-voltage power conversion in AC 50/60Hz systems. Featuring a fully sealed corrugated tank design, it eliminates the need for an oil conservator while providing excellent moisture resistance and extended service life. This transformer excels in energy savings, with up to 30% lower no-load losses compared to older models, making it ideal for modern grid upgrades and sustainable power distribution.
High Quality 20 Gauge Galvanized Steel Conductor Wire Supplier
The 20 Gauge Galvanized Steel Conductor Wire is designed for applications requiring flexibility, precision, and corrosion resistance. Manufactured from premium steel and coated with a durable zinc layer through hot-dip galvanization, it provides long-lasting protection against environmental damage. Its thin 20 gauge diameter allows for easy bending and shaping, making it ideal for crafts, packaging, binding, and light industrial applications. The wire offers sufficient tensile strength while maintaining excellent flexibility. The consistent zinc coating enhances durability and minimizes maintenance, especially in outdoor environments. The smooth surface ensures safe handling and efficient installation. Produced under strict quality control standards, the 20 Gauge Galvanized Steel Conductor Wire ensures uniform diameter and coating thickness. It meets international standards and can be customized to suit different application needs, making it a reliable and economical choice.
477 MCM PELICAN ACSR Conductor Cable
The ACSR CAA 477 MCM 18/1F PELICAN conductor is a high-performance Aluminium Conductor Steel Reinforced (ACSR) cable designed for use in overhead transmission and distribution line systems. Constructed with 18 strands of hard-drawn 1350-H19 aluminium helically stranded around a single galvanized steel wire, this conductor offers a well-balanced combination of electrical conductivity, lightweight design, and mechanical strength. Manufactured in compliance with ASTM B232, the PELICAN configuration is ideal for long-span installations where tensile strength, corrosion resistance, and current-carrying capability are critical. The galvanized steel core, available with Class A or B galvanization, provides excellent protection against environmental degradation while reinforcing the aluminium layers with the mechanical support required for demanding utility applications. Its 18/1 stranded design makes the PELICAN conductor particularly suitable for medium- and high-voltage overhead systems where both performance and cost-efficiency are important.
XLPE-HDPE Tree Cable Aluminum 25kV 1x120mm²
The XLPE-HDPE Tree Cable Aluminum 25kV 1x120mm² is designed for medium-voltage overhead distribution systems requiring very high current capacity. Perfect for long-distance transmission lines in rural, coastal, or high-load industrial areas, this cable combines superior durability, environmental resistance, and reliable electrical performance to ensure stable power delivery with minimal energy loss and maintenance. The inner insulation uses cross-linked polyethylene (XLPE), rated for continuous conductor operation at 90°C, fully compliant with ICEA S-121-733 standards. The robust outer jacket is made from high-density polyethylene (HDPE), providing excellent resistance to weathering, ultraviolet radiation, mechanical abrasion, and electrical sparking up to 2.75kV. Standard gray cables feature ASTM B230 markings and sequential metering, while blue cables with spark resistance over 5kV are recommended for harsher environmental conditions. With its ultra high current capacity, robust construction, and environmental resilience, the XLPE-HDPE 25kV tree cable 1x120mm² delivers reliable, long-term power distribution for demanding overhead network applications, ensuring efficiency, safety, and minimal maintenance.
954 MCM RAIL ACSR Conductor Cable
The ACSR CAA 954 MCM 45/7F RAIL is a robust Aluminium Conductor Steel Reinforced (ACSR) cable designed to meet the demanding requirements of modern overhead transmission and distribution systems. It consists of 45 hard-drawn 1350-H19 aluminium strands concentrically wound around 7 galvanized steel strands, forming a high-capacity conductor with a reliable strength-to-conductivity ratio. Manufactured in accordance with ASTM B232, the RAIL configuration is ideal for long-span installations where increased tensile strength and environmental durability are essential. The galvanized steel core, coated to Class A or B standards, provides corrosion resistance and mechanical reinforcement against environmental stressors like wind, ice loading, and mechanical tension. This ACSR design supports efficient power delivery across overhead transmission networks, while also serving as a dependable solution for primary and secondary distribution lines. Suitable for voltages up to 230kV in distribution lines, the Rail ACSR Conductor Cable minimizes line losses and withstands harsh weather, including wind and ice loading.
PLTC Shielded Instrumentation Tray Cable - 300V Copper Multi-Pair Cable
The PLTC Shielded Instrumentation Cable is a versatile power-limited tray cable engineered for precise signal transmission in industrial environments. It consists of stranded copper conductors with PVC insulation, twisted pairs or triads, aluminum foil shielding with drain wire for EMI protection, and a flame-retardant PVC jacket. This design ensures clean signal integrity, mechanical durability, and easy installation in cable trays. Rated 300V, the cable is suitable for control, instrumentation, and monitoring circuits. Compliant with UL 13 and NEC Article 725, the PLTC Shielded Instrumentation Cable undergoes extensive quality testing from raw materials to finished product, delivering consistent performance, safety, and reliability for modern industrial automation and process control applications.
167kVA Conventional Type Single Phase Pole Mounted Transformer
NPC ELECTRIC'S 167kVA Single Phase pole Mounted transformer is a high capacity single phase distribution transformer designed for medium to high load distribution systems. It is mainly used in residential, commercial, agricultural and light industrial applications to provide stable single phase power to ensure reliable operation of user-side equipment. It complies with international standards such as ANSI/IEEE C57, IEC60076 and other standards to ensure its high quality and stability. Standard features include mineral oil insulation (ONAN cooling), aluminum or copper windings, primary voltages 2.4kV–34.5kV grounded wye or delta (common: 7200/12470GrdY, 7620/13200GrdY, 12470GrdY/7200, 24940GrdY/14400, 34500GrdY/19920), secondary 120/240V or 240/120V split-phase (options for 277V/480V or custom), BIL ratings 95–150kV HV / 30kV LV, impedance typically 1.5–4.5%, ±2×2.5% or 5-position tap changer, conventional or CSP (completely self-protected) configurations with internal fuses, lightning arresters, weak-link protection, pressure relief valve, oil sight gauge, and ANSI 70 gray tank finish. Efficiency typically reaches 99.33% at 50% load per DOE levels (with 2029 amendments targeting further reductions for units ≥100 kVA), with low sound levels and corrosion-resistant hardware for extended outdoor service.
1/0 AWG Poppy AAC Cable
The 1/0 AWG Poppy AAC Cable represents premium All Aluminum Conductor technology for overhead power applications. Manufactured with seven strands of high-conductivity 1350-H19 aluminum, this bare conductor delivers an optimal balance of electrical efficiency and mechanical performance. Its 0.368-inch diameter and 1,990 lbs breaking strength support reliable operation with 247 amps capacity and minimal sag. Weighing just 99.1 lbs per 1000 ft, the Poppy AAC reduces structural loading and installation expenses while providing excellent corrosion resistance for extended outdoor service. Compliant with ASTM B-230 and B-231, the 1/0 AWG Poppy AAC Cable offers low DC resistance of 0.164 ohms/1000 ft at 20°C. It undergoes stringent quality testing from raw materials through finished product, making it an ideal choice for new builds and upgrades in transmission and distribution systems requiring dependable, lightweight bare conductors.
1/0 Echinus Aluminum Conductor Triplex Overhead Service Drop Cable
NPC Electric 1/0 Echinus Triplex Service Drop Cable provides reliable overhead secondary distribution for residential applications. Consisting of two 1/0 AWG aluminum phase conductors and one neutral messenger (7-strand) insulated with cross-linked polyethylene (XLPE) and twisted in triplex form, it meets ASTM, ICEA, and international standards. The robust insulation resists sunlight, moisture, and mechanical damage for decades of outdoor service. Lightweight design simplifies installation with low sag and easy handling. The 1/0 Echinus Triplex Service Drop Cable ensures minimal losses, high current capacity, and excellent weather performance up to 600V. Self-supporting messenger reduces pole loading. Flame-retardant options enhance safety. Commonly chosen for two-phase power delivery with neutral in subdivisions, rural homes, and temporary connections requiring safe, economical aerial bundled solutions with proven durability.
(N)TMCGEWOU - 12/20kV, 14/25kV and 18/30kV Cable
The (N)TMCGEWOU - 12/20kV, 14/25kV and 18/30kV Cable is a robust, flexible single-core medium-voltage power cable built for extreme industrial and mining demands. It includes class 5 finely stranded tinned copper conductors for flexibility and corrosion resistance, semi-conductive conductor and insulation screens for field control, high-grade EPR (ethylene propylene rubber) insulation offering superior dielectric strength and 90°C continuous operation, tinned copper wire braid screen for EMI shielding and grounding, and a tough halogen-free rubber outer sheath (type 5GM5) resistant to oil, flame, abrasion, moisture, and mechanical damage. Compliant with DIN VDE 0250 Part 813 and IEC equivalents, it handles high test voltages (29kV for 12/20kV, 36kV for 14/25kV, 43kV for 18/30kV) and supports short-length or mobile connections with excellent bending and tensile performance. The (N)TMCGEWOU delivers safe, reliable high-voltage power in harsh environments.
CANTON AAAC Conductor Cable
CANTON AAAC (All Aluminum Alloy Conductor) cables are manufactured in accordance with ASTM B399 standards, offering high tensile strength, good electrical conductivity, and corrosion resistance. With 800 mm² nominal area and 61-strand design, it uses heat-treated aluminum-magnesium-silicon alloy (6201-T81) for enhanced strength (295 MPa min) and conductivity (53% IACS min). Meeting ASTM B398, B399, IEC 61089, and BS EN 50182 standards, this cable handles ampacity up to 1200A at 75°C and voltages up to 33kV. The all-alloy construction avoids bimetallic corrosion, providing better resistance in harsh conditions than ACSR. Reduced weight minimizes sag and installation expenses, supporting longer spans. The Canton AAAC Conductor Cable delivers low electrical losses, high mechanical endurance, and excellent weather tolerance. Flame-retardant variants available. Perfect for urban grids, renewable projects, and coastal setups, it provides cost-effective, low-maintenance power delivery in overhead applications globally, excelling in reliability and lifespan over conventional conductors.
477 MCM Cosmos AAC Cable
The 477 MCM Cosmos AAC Cable represents premium All Aluminum Conductor technology for overhead power applications. Built with 19 strands of high-conductivity 1350-H19 aluminum, this bare conductor delivers an optimal balance of electrical efficiency and mechanical robustness. With a 0.793-inch diameter, 8,360 lbs breaking strength, and 639 amps ampacity, the Cosmos AAC offers low DC resistance of 0.0362 ohms per 1000 ft at 20°C and a weight of 447.8 lbs per 1000 ft. This design minimizes sag while providing excellent corrosion resistance for extended outdoor service. Manufactured to meet ASTM B-230 and B-231 standards, the 477 MCM Cosmos AAC Cable undergoes extensive quality testing from raw materials through finished product. It is the ideal solution for new installations and upgrades in transmission and distribution systems that demand lightweight, high-conductivity bare aluminum conductors.
Type 209 Flexible Copper Screened Mining Cable
The Type 209 Flexible Copper Screened Mining Cable is a medium-voltage rubber-insulated cable designed for heavy-duty mining operations. It features tinned annealed copper conductors, EPR insulation, and a flexible copper wire/polyamide braid screen for superior electrical shielding. The extra heavy-duty PCP sheath provides oil resistance, flame retardancy, and high mechanical strength, making it ideal for trailing, feeder, and drilling applications in mining. Available in 1.1kV, 3.3kV, 6.6kV, and 11kV ratings, this cable complies with AS/NZS 2802 and ensures long service life under extreme conditions.Welcome your inquiry
Honesty, Integrity, Frugality, Activeness and Passion
