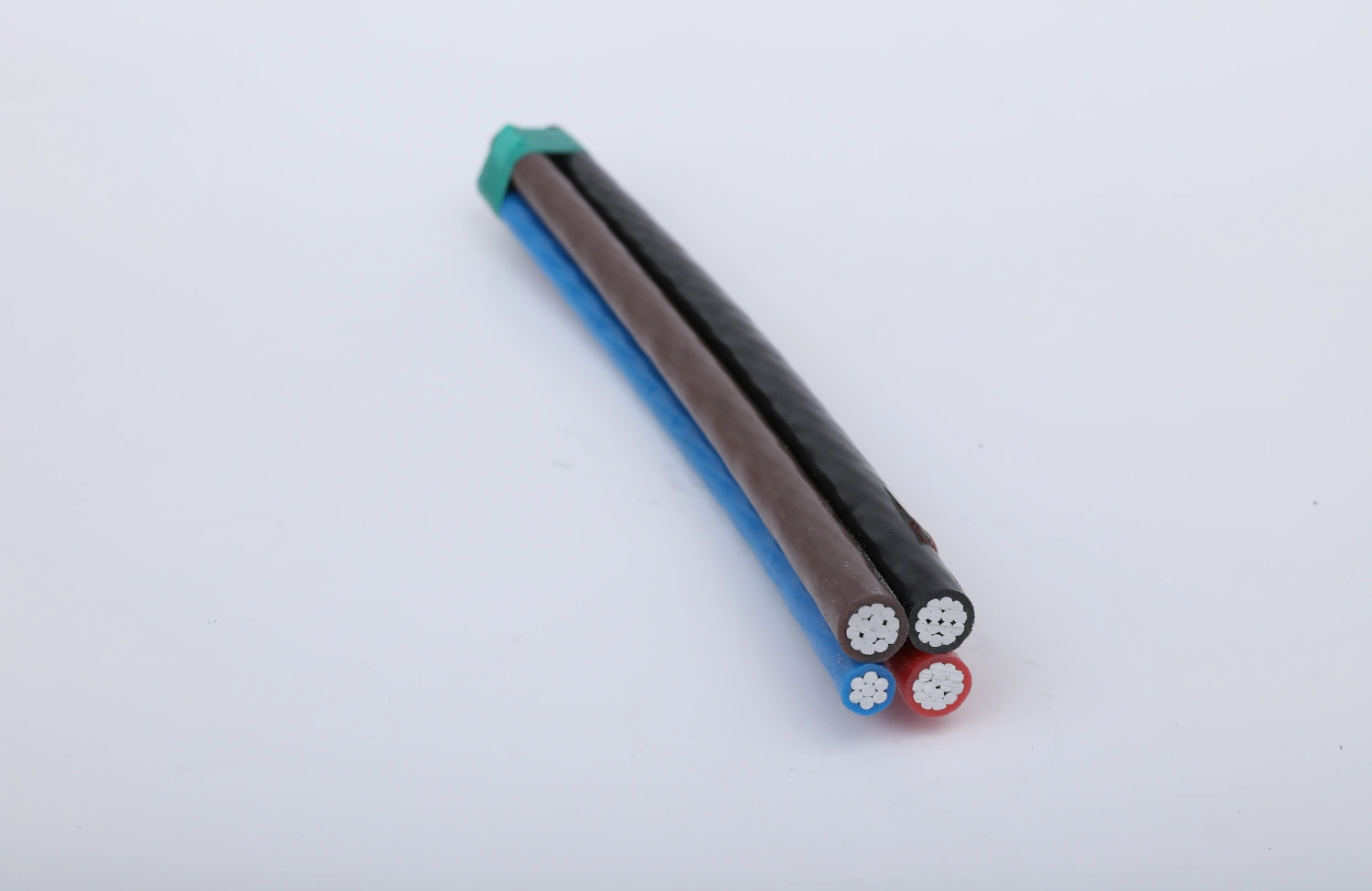

1. URD Cable
URD cable, short for Underground Residential Distribution Cable, is a type of low-voltage power cable used in secondary power distribution networks. These cables are specifically designed for direct burial underground applications without the need for conduit systems.
URD electrical cable plays a critical role in modern underground distribution infrastructure, allowing utilities to deliver power safely and reliably from distribution transformers to residential neighborhoods, small commercial buildings, and service entrances.
Compared with overhead systems, underground secondary distribution cables provide:
- Higher reliability
- Reduced weather-related outages
- Improved urban aesthetics
- Lower maintenance requirements
Most URD cables operate at 600 volts, making them suitable for secondary voltage distribution networks between transformers and end users.
2. URD Cable Definition and Construction
What is URD Cable?
The URD cable definition refers to an insulated underground power cable system designed for direct burial service in underground distribution networks.
URD cable stands for Underground Residential Distribution cable, a type of direct burial electrical cable used to deliver power from distribution transformers to residential or commercial buildings. These cables typically operate at 600 volts and are designed for wet and dry underground environments.
Typical URD cables consist of:
- Aluminum conductor
- XLPE insulation
- Neutral conductor wires
- Optional sunlight-resistant jacket
The cables are engineered for operation in wet and dry locations, which is essential for underground environments where moisture exposure is common.

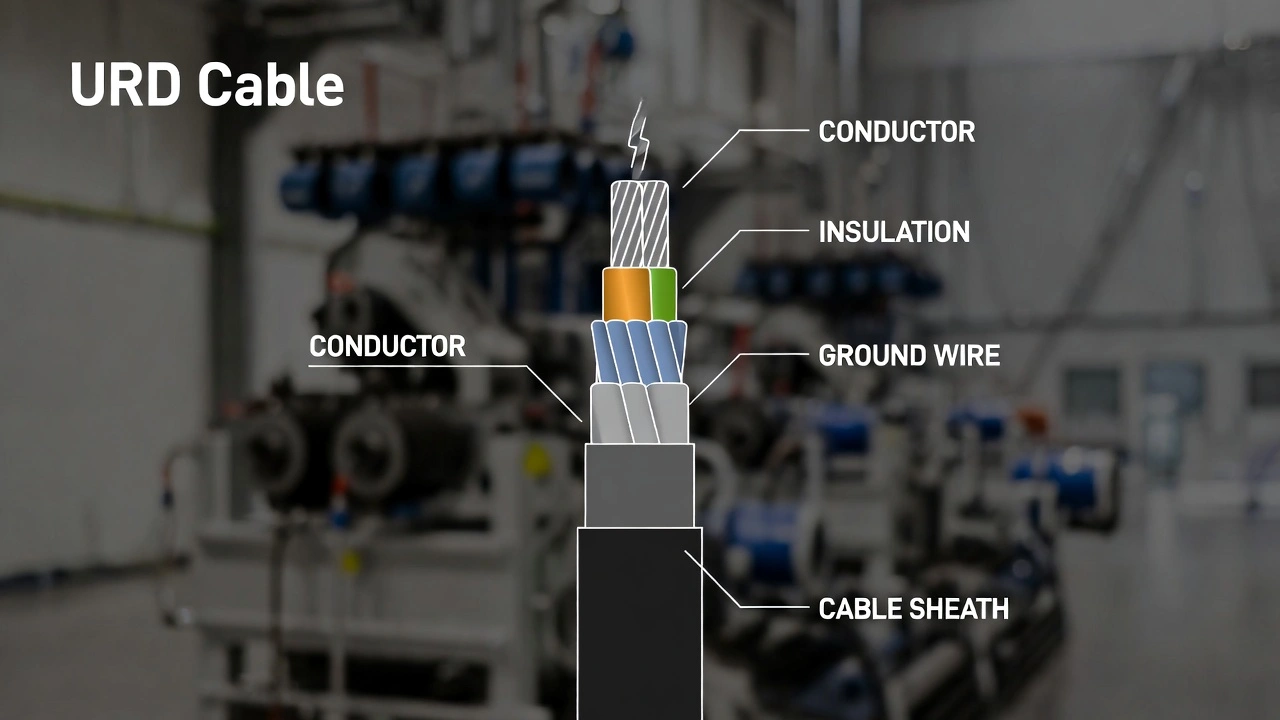

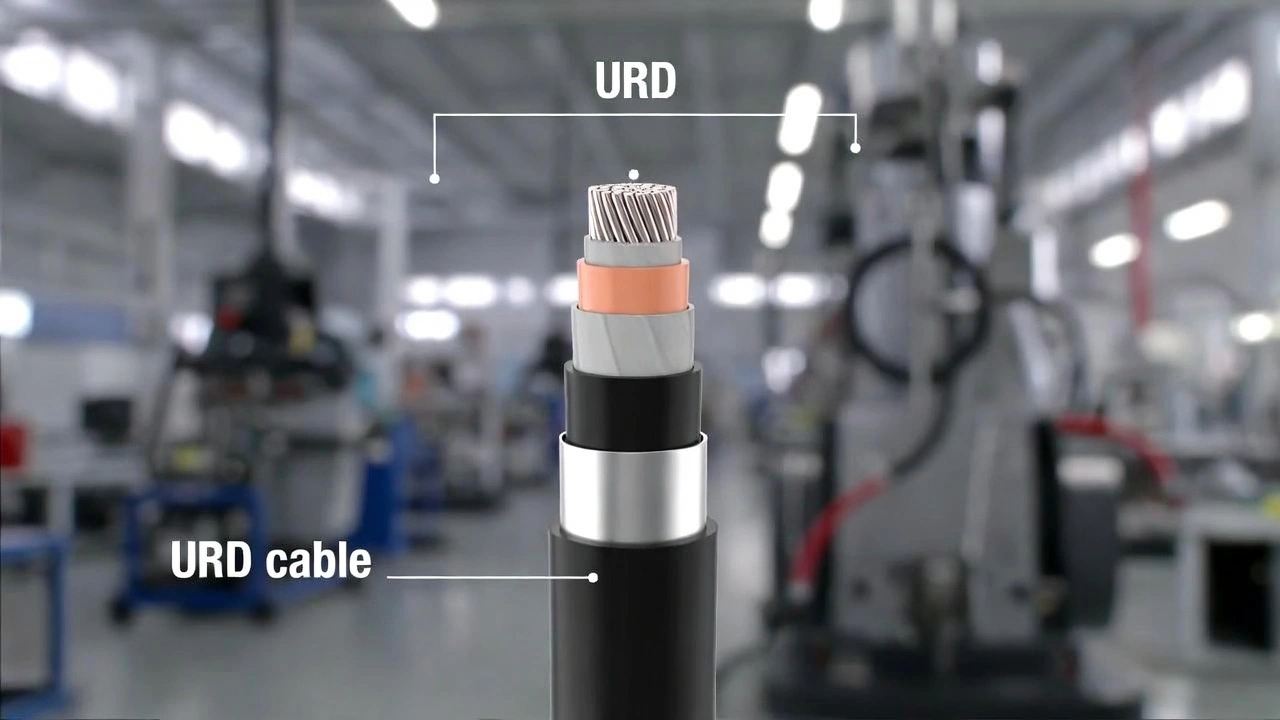

Typical URD Cable Construction
|
Component |
Description |
Function |
|
Conductor |
Aluminum stranded conductor |
Electrical current transmission |
|
Insulation |
XLPE insulation |
Electrical insulation and thermal resistance |
|
Neutral Conductor |
Bare aluminum wires |
Grounding and return path |
|
Jacket (optional) |
Polyethylene or PVC |
Additional mechanical protection |
Because of this robust design, URD direct burial cable can operate reliably for decades in harsh soil conditions.
3. Types of URD Cable Used in Power Distribution
URD cables are manufactured in several configurations depending on the distribution system design.
Common URD Cable Types
|
Cable Type |
Configuration |
Typical Application |
|
Duplex URD |
1 phase conductor + 1 neutral |
Street lighting systems |
|
Triplex URD |
2 phase conductors + 1 neutral |
Single-phase residential service |
|
Quadruplex URD |
3 phase conductors + 1 neutral |
Three-phase distribution |
|
Service Entrance URD |
Insulated conductors with neutral |
Connection to the building service entrance |
Among these options, triplex URD cable is the most widely used configuration for residential areas.
4. Aluminum URD Cable vs Copper Cables
In underground distribution systems, aluminum direct burial cable is widely used instead of copper wires.
Technical Comparison
|
Parameter |
Aluminum URD Cable |
Copper Cable |
|
Weight |
Lightweight |
Heavy |
|
Conductivity |
~61% of copper |
High |
|
Cost |
Much lower |
Expensive |
|
Corrosion Resistance |
Excellent |
Good |
|
Installation |
Easier handling |
Harder due to weight |
Due to these advantages, aluminum URD cable provides a cost-effective solution for large-scale power distribution projects.

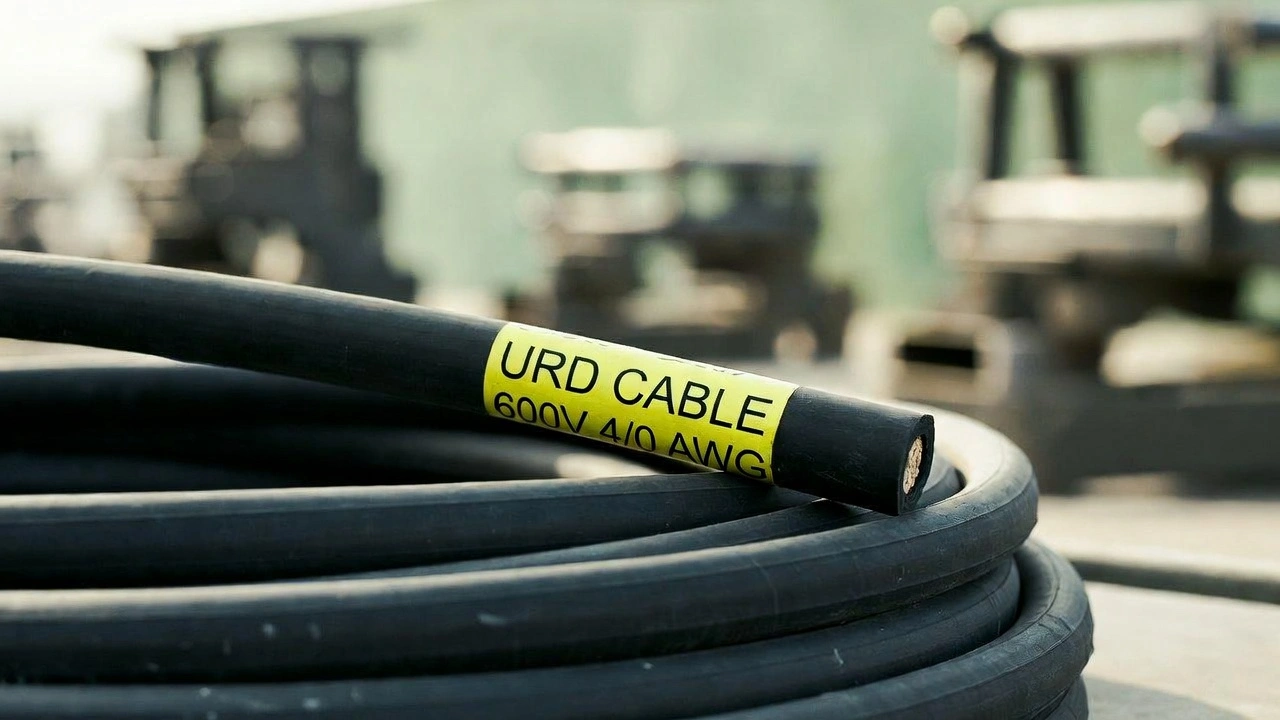

5. Standard URD Cable Sizes
URD cables are available in multiple conductor sizes to match different power load requirements.
Typical Aluminum URD Cable Sizes
|
Cable Size |
Conductor Type |
Typical Application |
|
1/0 URD cable |
Aluminum |
Residential services |
|
2/0 URD cable |
Aluminum |
Small commercial loads |
|
3/0 URD cable |
Aluminum |
Larger residential feeders |
|
4/0 URD cable |
Aluminum |
Distribution transformer output |
For example:
- 1/0 URD cable is commonly used in residential service entrances.
- 3/0 URD cable is often used in neighborhood distribution feeders.
Proper cable sizing ensures safe and efficient secondary power distribution.
6. URD Cable Ampacity Chart
The ampacity of URD electrical cable depends on factors such as conductor size, insulation temperature rating, and installation conditions.
Typical URD Cable Ampacity
|
Cable Size |
Aluminum Conductor |
Ampacity (Approx.) |
Voltage Rating |
|
1/0 AWG |
Aluminum |
150 A |
600 volts |
|
2/0 AWG |
Aluminum |
175 A |
600 volts |
|
3/0 AWG |
Aluminum |
200 A |
600 volts |
|
4/0 AWG |
Aluminum |
230 A |
600 volts |
These values may vary depending on:
- Soil temperature
- Burial depth
- Cable spacing
- Installation method
Utilities often follow NEC and IEEE standards when determining final ampacity ratings.
7. URD Direct Burial Cable Installation Considerations
URD cable systems must be installed according to electrical engineering best practices to ensure long-term reliability.
Key Installation Requirements
|
Factor |
Engineering Recommendation |
|
Burial Depth |
600–900 mm typical |
|
Soil Conditions |
Non-corrosive soil preferred |
|
Mechanical Protection |
Sand bedding or protective tape |
|
Thermal Environment |
Avoid high temperature zones |
Because URD cables are installed underground, they must be designed to withstand moisture, soil pressure, and thermal cycling.
8. Applications of URD Cable in Underground Power Systems
URD cables are widely used in underground electrical infrastructure across urban and suburban regions.
Major Application Areas
|
Application |
Function |
|
Residential Distribution |
Power supply to homes |
|
Underground Secondary Networks |
Utility distribution systems |
|
Service Entrance Connections |
Transformer to building |
|
Commercial Areas |
Small business power supply |
These cables are commonly used in conjunction with:
- Pad-mounted transformers
- Underground distribution boxes
- Secondary distribution panels
This architecture ensures reliable power delivery to end users.
9. URD Cable Price Factors in International Markets
For utilities and EPC contractors, URD cable pricing depends on multiple factors.
Key Cost Influencing Factors
|
Factor |
Impact |
|
Aluminum price |
Major cost driver |
|
Conductor size |
Larger cables cost more |
|
Insulation material |
XLPE cost variation |
|
Export standards |
IEC / ASTM compliance |
|
Order quantity |
Bulk discounts |
Typical URD cable price ranges depend heavily on raw material markets and project specifications.
10. Quality Standards for URD Cables
International manufacturers produce URD cables according to strict quality standards.
Common Standards
|
Standard |
Region |
Scope |
|
ICEA S-105-692 |
North America |
URD cable performance |
|
ASTM B800 |
International |
Aluminum conductor |
|
UL standards |
North America |
Safety certification |
|
IEEE distribution specs |
Utilities |
System integration |
Compliance ensures safe operation in underground electrical networks.
11. URD Cable Size Calculator
In underground power distribution projects, selecting the correct URD cable size is essential to ensure safe current carrying capacity, acceptable voltage drop, and long-term reliability.
Engineers typically calculate cable size based on:
- Load current
- Circuit length
- Voltage level
- Conductor material
- Temperature conditions
Basic URD Cable Sizing Formula
For simplified engineering estimation:
For aluminum conductors:
Typical current density range:
1.2 – 1.6 A/mm²
Example:
Load = 180A
Closest standard cable: 3/0 URD cable
Voltage Drop Calculation (Important for Underground Systems)
Voltage drop must typically remain below 3% for feeders.
Voltage drop formula:
Where:
|
Parameter |
Meaning |
|
L |
Cable length (meters) |
|
I |
Load current |
|
R |
Conductor resistance |
Underground installations usually require larger cable sizes to compensate for heat dissipation limitations.
URD Cable Size Selection Table
|
Load Current |
Recommended URD Cable |
Typical Application |
|
100 A |
1/0 URD cable |
Small residential service |
|
150 A |
2/0 URD cable |
Medium home load |
|
200 A |
3/0 URD cable |
Residential feeders |
|
230 A |
4/0 URD cable |
Transformer secondary |
This simplified URD cable size calculator is widely used during preliminary project planning.
For final system design, engineers must consider:
- Soil thermal resistivity
- Cable spacing
- Ambient temperature
- Installation depth
12. Future Trends in Underground Distribution Cables
The demand for URD electrical cable continues to grow as utilities modernize electrical grids.
Major trends include:
- Expansion of underground distribution networks
- Smart grid infrastructure
- Renewable energy integration
- Increased urban underground power systems
As a result, high-quality wires and cables for underground power distribution will remain critical for global power infrastructure development.
13. URD Cable FAQ
This section answers common industry questions about URD cable, improving SEO visibility, and helping users quickly find technical information.
What is the URD cable used for?
URD cables are primarily used for:
- Residential underground power distribution
- Transformer secondary connections
- Service entrance electrical supply
- Underground commercial power networks
They allow utilities to deliver power safely without overhead lines.
Is the URD cable rated for direct burial?
Yes. URD direct burial cable is specifically designed for underground installation without conduit. The cable insulation and neutral conductor structure protect it from moisture, soil pressure, and environmental stress.
What is the difference between URD and USE cable?
|
Feature |
URD Cable |
USE Cable |
|
Application |
Distribution systems |
Service entrance |
|
Conductor |
Aluminum |
Aluminum |
|
Insulation |
XLPE |
XLPE |
|
Voltage Rating |
600 V |
600 V |
|
Configuration |
Duplex/Triplex/Quadruplex |
Single or multi-conductor |
URD cables are commonly used in secondary distribution networks, while USE cables are primarily used for building service connections.
What size URD cable is used for residential service?
Typical residential service uses:
|
Service Rating |
URD Cable Size |
|
100 Amp |
1/0 URD cable |
|
150 Amp |
2/0 URD cable |
|
200 Amp |
3/0 URD cable |
|
225 Amp |
4/0 URD cable |
Correct cable sizing ensures safe current capacity and voltage stability.
Is aluminum URD cable reliable?
Yes. Modern Aluminum URD cable uses high-quality stranded aluminum conductors and XLPE insulation, offering:
- Excellent corrosion resistance
- Lightweight installation
- Lower cost compared with copper wires
- Long service life in underground environments
Can the URD cable be used in wet locations?
Yes. URD cables are specifically designed for wet and dry underground locations, making them suitable for direct burial installations where moisture exposure is common.
URD cable is an essential component of modern underground secondary power distribution systems. With its aluminum conductor design, XLPE insulation, and direct burial capability, URD cables provide a reliable and cost-effective solution for residential and commercial power delivery.
From 1/0 URD cable to 3/0 URD cable, these underground distribution cables support a wide range of electrical loads while ensuring durability in wet and dry underground environments.
For utilities, contractors, and infrastructure developers, selecting the correct URD direct burial cable is critical for ensuring long-term power system performance.
Related Articles
Related Products
12 Gauge Galvanized Steel Conductor Wire
The 12 Gauge Galvanized Steel Conductor Wire is engineered for demanding utility applications, delivering reliable high-strength performance with outstanding corrosion resistance. Produced with heavy hot-dip galvanizing, this 12 AWG wire features a uniform zinc coating that effectively protects against rust in challenging environments. It performs exceptionally well as overhead ground wire, static wire, or guy wire for pole guying in power transmission and distribution systems. Meeting ASTM A475 requirements, the 12 Gauge Galvanized Steel Conductor Wire provides excellent tensile strength and long service life with minimal maintenance. Rigorous quality testing throughout production ensures consistent mechanical properties and coating integrity, making it a cost-effective and dependable solution for shielding and structural support in overhead lines.
FR-N30XA8E-R 18/30kV Cable Gen to NF C 33-226 - Cu/XLPE/MDPE
The NF C 33-226 Cu-XLPE-MDPE 18/30kV Cable is a robust medium voltage power cable designed for safe and reliable energy transmission in fixed installations. It features a Class 2 stranded copper conductor, cross-linked polyethylene (XLPE) insulation, and a medium-density polyethylene (MDPE) outer sheath, ensuring outstanding electrical conductivity, insulation integrity, and mechanical protection. Complying with NF C 33-226, IEC 60502-2, and EN 60228, this cable is ideal for power distribution in industrial plants, substations, municipal grids, and commercial facilities. It provides excellent resistance to water (AD7) and UV radiation (ISO 4892), while being halogen-free (IEC/EN 60754-1) to ensure environmental and operational safety. With a voltage rating of 18/30 (36)kV and maximum operating temperature of 90°C, the Cu-XLPE-MDPE construction guarantees stable, efficient, and long-lasting performance in medium- and high-voltage networks.
RHZ1-2OL-AL Medium Voltage Power Cable(8.7/15kV, 12/20kV, 18/30kV)
RHZ1-2OL-AL Medium Voltage Power Cable (8.7/15kV, 12/20kV, 18/30kV) is an economical, fire-safe cable for medium voltage distribution. Featuring stranded aluminium conductors, cross-linked polyethylene (XLPE) insulation, metallic screen, and low smoke zero halogen (LSZH) outer sheath, it complies with UNE 21123-4 and CPR standards. In fire conditions, the LSZH sheath emits minimal smoke and no toxic halogen gases, ensuring safety in populated areas. Lightweight aluminium reduces costs and handling effort while providing reliable current capacity. Superior partial discharge resistance, low dielectric losses, and high thermal stability guarantee efficient, long-lasting performance. Suitable for direct burial, ducts, or indoor installations. The RHZ1-2OL-AL Medium Voltage Power Cable is widely used in utilities, hospitals, schools, tunnels, and infrastructure projects requiring cost-effective, environmentally friendly medium voltage cabling with enhanced fire safety and durability worldwide.2Y-high-voltage-power-cable-2.webp)
High Voltage / 2XS(F)2Y, A2XS(F)2Y 110kV Power Cable
The 2XS(F)2Y / A2XS(F)2Y 110kV High Voltage Power Cable is engineered for underground high-voltage transmission networks with a maximum operating voltage of 110kV (123kV highest). Built with Class 2 copper or aluminum Milliken conductors, extruded semi-conductive XLPE screens, and XLPE insulation, it ensures excellent electrical performance and long service life. Its copper wire screen with counter-helical copper tape offers enhanced shielding, while the water-swellable tapes provide longitudinal water-blocking. The HDPE outer sheath delivers high abrasion resistance and durability, making it ideal for installation in environments with existing mechanical protection. Manufactured to IEC 60840, HRN HD 632, and IEC/EN 60228 standards, this cable is well-suited for high-load and long-distance transmission applications.
11/0.4kV 630kVA Oil-Immersed Power Transformer Distribution Type
Discover our premium 11/0.4kV 630kVA Oil-Immersed Power Transformer, engineered for superior high-efficiency distribution in modern electrical grids. This robust transformer features advanced silicon steel cores that minimize energy losses, ensuring up to 98% efficiency under full load. Ideal for urban and rural power networks, it incorporates eco-friendly insulating oil with high dielectric strength, providing reliable voltage step-down from 11kV to 0.4kV while handling demanding loads up to 630kVA. Built with corrosion-resistant tanks and precision-wound copper coils, this distribution transformer guarantees long-term durability, reduced maintenance, and compliance with international standards like IEC 60076. Whether for residential complexes, commercial facilities, or industrial applications, it optimizes power delivery, lowers operational costs, and supports sustainable energy practices. Experience unmatched performance with this high-efficiency oil-immersed transformer designed for seamless integration into your power system.
630kVA Three-Phase Oil-Immersed Outdoor Substation Transformer | 220V to 380V Step-Up Transformer
This 630kVA three-phase oil-immersed transformer is designed for outdoor substations, providing reliable voltage conversion from 220V to 380V. With a robust oil-immersed cooling system, it ensures excellent heat dissipation, stable performance, and long service life. Ideal for industrial facilities, commercial power distribution, and utility applications, this step-up transformer delivers consistent efficiency even under heavy load conditions.
Type 440 Flexible Copper Screened Mining Cable With Three Pilot Core Interstitial
The Type 440 Flexible Copper Screened Mining Cable is a medium-voltage mining cable designed for heavy-duty applications in draglines, shovels, and large drills.It features tinned annealed copper conductors, EPR insulation, and a flexible copper wire screen for superior electrical shielding. Its three pilot cores allow for enhanced monitoring and control in mining operations. The extra heavy-duty PCP sheath provides oil resistance, abrasion protection, and flame retardancy, making it suitable for harsh mining environments. Compliant with AS/NZS 2802 and related standards, this cable ensures long service life and high mechanical performance in demanding conditions. Its flexible construction allows for repeated bending and movement under harsh operating conditions. The outer sheath provides excellent resistance to abrasion, oil, moisture, impact, and environmental aging. Manufactured under strict quality control procedures, the Type 440 mining cable undergoes comprehensive raw material testing, process inspection, and finished product testing to ensure compliance with mining regulations and long-term performance.
XLPE-HDPE Tree Cable Aluminum 25kV 1x150mm²
The XLPE-HDPE Tree Cable Aluminum 25kV 1x150mm² is engineered for medium-voltage overhead distribution systems requiring very high current capacity. Ideal for long-distance transmission in rural, coastal, and industrial areas, this cable provides exceptional reliability, efficient energy delivery, and long-term performance while minimizing line losses and maintenance costs. Constructed with high-conductivity aluminum alloy 1350 wires, the conductor features round compacted, class 2 stranding, with minimum conductivity of 61% IACS and tensile strength of at least 130 MPa. Optional conductor shielding with extruded semiconductor thermosetting compound is available for enhanced performance in 15kV and 25kV applications. Rated at 25kV, the XLPE-HDPE tree cable allows reduced line clearance compared to bare conductors while maintaining electrical safety. A comprehensive quality control system, including raw material testing, process inspection, and finished product testing, ensures consistent performance and compliance with IEC and utility standards.
20kV Oil Immersed Transformer
The 20kV Oil Immersed Transformer is a high-capacity, three-phase power distribution transformer designed for robust step-down performance in 50/60Hz AC grids up to 20kV primary voltage. It utilizes a fully sealed corrugated tank with advanced thermal fins for oil expansion, eliminating conservators and delivering unmatched resistance to humidity, contamination, and oxidation for over 30-year service life. High-efficiency cold-rolled silicon steel cores with step-lap construction slash no-load losses by up to 40%, complemented by electrolytic copper windings (H62 conductivity).
336.4 Nannynose Aluminum Conductor Triplex Overhead Service Drop Cable
Built for high-demand overhead applications, the 336.4 Nannynose Aluminum Conductor Triplex Overhead Service Drop Cable provides robust power transmission. It features three 336.4 MCM (19/w) 1350-H19 aluminum conductors: two black XLPE-insulated phases for superior dielectric and environmental protection, cabled around a bare 336.4 MCM (19/w) AAC neutral messenger for excellent tensile strength and sag control. Rated 600V with 90°C conductor temperature and ampacity up to 420A (XLPE), this cable complies with ASTM B-230/B-231 and ICEA S-76-474. Lightweight, corrosion-resistant, and cost-effective, the 336.4 Nannynose ensures dependable performance in large secondary distribution and service drop installations.
NS75/NS90 Duplex Unjacketed Overhead Neutral Supported Cable
Our NS75/NS90 Duplex Unjacketed Overhead Neutral Supported Cable provides economical self-supporting overhead distribution. Consisting of an XLPE-insulated aluminum phase conductor (75 mm² or 95 mm²) supported by a bare ACSR or AAAC neutral messenger without an overall jacket, it meets AS/NZS 3560 and utility requirements. The design reduces material costs while delivering high tracking resistance and mechanical strength for spans up to 100m. Excellent UV and moisture performance ensures longevity in exposed conditions. The NS75/NS90 Duplex Unjacketed Overhead Neutral Supported Cable offers low installation effort, minimal sag, and reliable power delivery for 600/1000V networks. Widely favored in Australia and New Zealand for residential, commercial, and rural service drops requiring lightweight, neutral-supported overhead cables with proven compliance and durability in diverse climates.
Instrumentation Cables—Mica Tapped, XLPE Insulated, Individual &Overall Screened, Wire Armoured LSZH Sheathed Cables(CU/GMT/XLPE/IOSCR/SWA/LSZH)
CU/GMT/XLPE/IOSCR/SWA/LSZH instrumentation cables are engineered for precise signal and control transmission in environments with high electrical noise and strict safety requirements. The mica tape layer protects the copper conductor during fire exposure, while XLPE insulation ensures stable electrical characteristics and heat resistance. Individual screening of each circuit, combined with an overall screen, provides superior protection against electromagnetic interference, enabling accurate and stable signal performance. Steel wire armour enhances mechanical durability and protects the cable from external damage. The LSZH sheath limits smoke emission and corrosive gases, making the cable suitable for enclosed and public installations. This robust design makes the cable ideal for complex industrial applications requiring both signal integrity and safety compliance.
3000kVA Dry Type Transformer
3000kVA Dry Type Transformer is a high-performance, reliable power solution designed to meet the needs of large industrial and commercial facilities. With a 3000kVA capacity, it utilizes advanced dry-type insulation, ensuring exceptional safety, minimal maintenance, and extended durability. Built for demanding environments, this transformer provides stable, efficient, and low-noise operation while minimizing environmental impact. The NPC ELECTRIC 3000kVA Dry Type Transformer is the ideal choice for ensuring reliable and efficient power distribution in large-scale applications. Core features include three-phase design, primary voltages 208V–600V (e.g., 480V Delta, 600V Delta), secondary voltages such as 208Y/120V, 480Y/277V, or custom, aluminum or copper windings, 150°C rise (standard) or 115°C/80°C with 220°C insulation class, ±2×2.5% primary taps, NEMA 1 ventilated enclosure (NEMA 3R/encapsulated options), natural convection cooling (AN), electrostatic shielding, and low sound levels per NEMA.
1600kVA Single Phase Pad Mounted Transformer
The 1600kVA Single Phase Pad Mounted Transformer represents the pinnacle of high-capacity underground distribution technology, engineered to handle the most demanding residential and commercial loads with outstanding efficiency and longevity. Conforming to the latest ANSI C57.12.38, IEEE C57.12.00, and DOE 2016/2020 efficiency tiers, this 1600kVA single-phase padmount provides reliable step-down from primary voltages up to 46kV to versatile secondary configurations, supporting massive loop-feed networks with superior overload tolerance and virtually silent operation.
BUTTE AAAC Conductor Cable
BUTTE AAAC (All Aluminum Alloy Conductor) cables comply with ASTM B399 standards and offer high strength, good conductivity, and corrosion resistance. Named "Butte" for its 400 mm² nominal area with 37-strand configuration, it offers superior conductivity (53% IACS) and tensile strength (295 MPa min) compared to ACSR. Made from heat-treated aluminum-magnesium-silicon alloy (6201-T81), this cable provides excellent corrosion resistance, low weight, and reduced sag for longer spans. Compliant with ASTM B398, B399, IEC 61089, and BS EN 50182 standards, it supports voltages up to 33kV with ampacity up to 800A at 75°C. The homogeneous alloy construction eliminates bimetallic corrosion and ensures uniform mechanical properties. The Butte AAAC Conductor Cable minimizes line losses, withstands harsh weather, and requires minimal maintenance. Ideal for rural electrification, urban upgrades, and renewable energy integrations, it delivers reliable, cost-effective power in overhead lines worldwide, outperforming traditional conductors in corrosive or coastal environments.Welcome your inquiry
Honesty, Integrity, Frugality, Activeness and Passion
