45kVA & 75kVA Three-Phase Pad-Mounted Transformer Testing in Progress

Recently, the transformers of two core products — the 45kVA Three Phase Pad Mounted Transformer and the 75kVA Three Phase Pad Mounted Transformer, produced by the NPC Electric Factory, are about to undergo quality testing and performance testing.

These products are vital for modern energy systems, and their successful validation marks a crucial milestone before full-scale production and Pad Mounted Transformer installation.

Product Introduction: Compact, Efficient & Utility-Ready

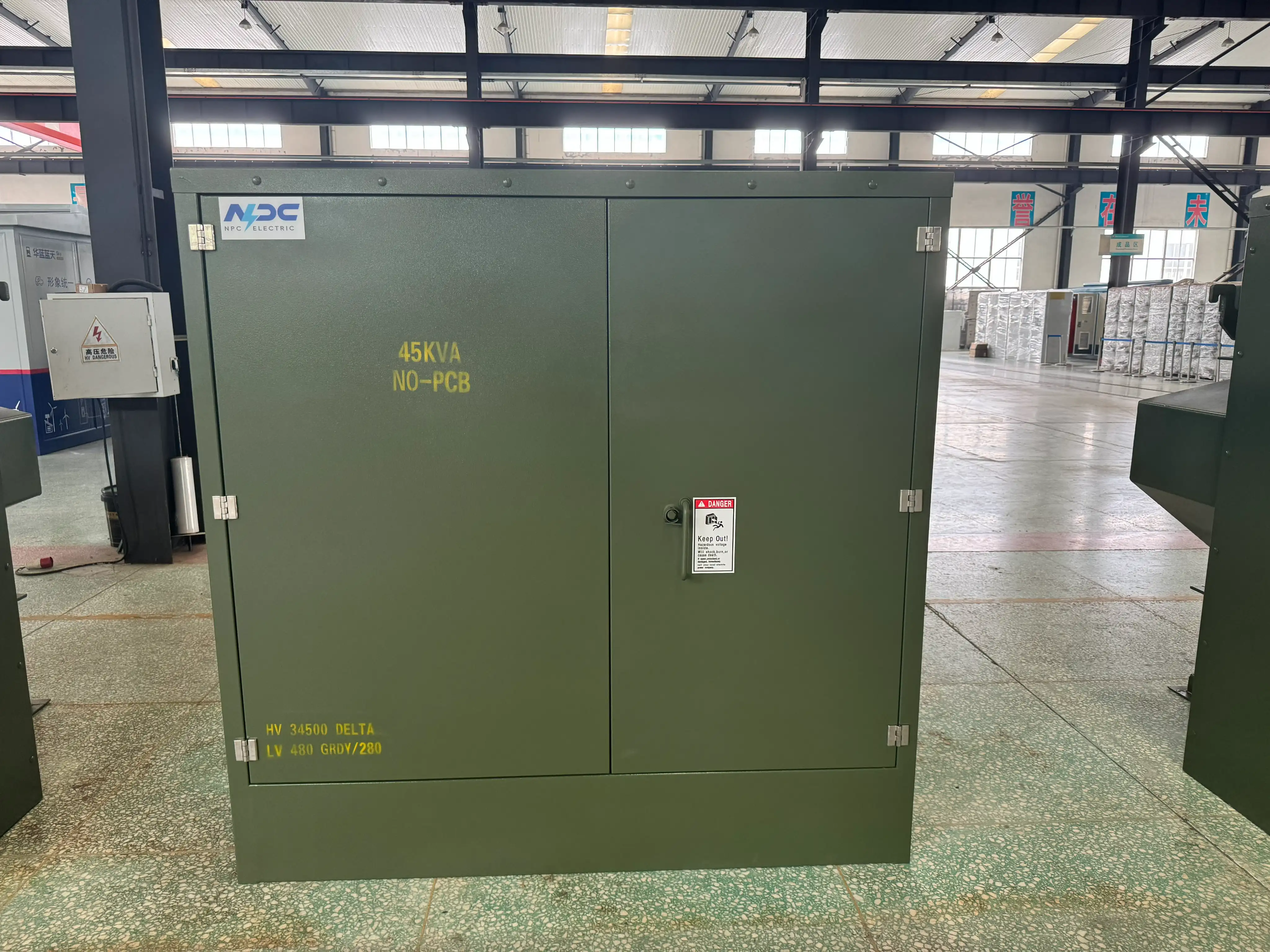

45kVA Three Phase Pad Mounted Transformer

Because compact distribution solutions are needed in residential, light commercial, and educational facilities, the 45kVA Three Phase Pad Mounted Transformer has been engineered for environments that require high reliability in a small footprint. This pad-mounted transformer features:

• Dead-front construction for operator safety,
• Oil-filled and sealed design for outdoor use,
• Low-noise and low-loss core for energy efficiency,
• Support for both radial and loop-feed systems.

Its three-phase configuration ensures stable voltage delivery, while its tamper-proof cabinet enables long-term outdoor operation in public-access areas.

75kVA Three Phase Pad Mounted Transformer

Because certain commercial, industrial, and healthcare facilities demand higher energy loads, the 75kVA Three Phase Pad Mounted Transformer is designed to meet increased performance expectations. With its larger capacity, it supports:

• Critical facilities like hospitals, warehouses, and data centers,
• Enhanced cooling features for better thermal management,
• Multiple secondary voltage outputs for flexible system integration,
• Corrosion-resistant enclosure suitable for all weather conditions.

Both products adhere to IEEE, ANSI, and DOE standards, ensuring they meet the highest expectations for safety, durability, and environmental compatibility.

Comprehensive Pad Mounted Transformer Test Procedures

Because safety and performance cannot be compromised in power distribution, each Three Phase Pad Mounted Transformer undergoes a comprehensive series of tests based on IEEE C57.12 and internal quality protocols.

The Pad Mounted Transformer Test sequence includes:

1. Dielectric Testing – to ensure electrical insulation strength.
2. Turns Ratio Testing (TTR) – verifying correct voltage transformation.
3. Winding Resistance Measurement – detecting internal faults or imbalances.
4. Insulation Resistance Testing (Megger Test) – validating insulation integrity under high-voltage conditions.
5. Leakage and Pressure Tests – to verify tank integrity and ensure oil containment.
6. Temperature Rise Test – measuring thermal stability under full load.

Because these tests simulate real-world operating conditions, any deficiencies are identified and addressed before the unit reaches the field.

In addition, functional tests on terminal bushings, grounding connectors, pressure relief valves, and control wiring are conducted. Specialized software is used to analyze test results in real time and generate a digital certification report for each unit.

Pad Mounted Transformer Quality Control: Precision at Every Stage

Because high product reliability starts at the design and manufacturing stages, a multi-tier Pad Mounted Transformer Quality Control system is enforced across the lifecycle of each transformer.

Key QC checkpoints include:

• Raw Material Verification: All electrical steel, copper conductors, and transformer oil are sourced from certified vendors and tested before use.
• In-Process Inspection: Core assembly, coil winding, and tank fabrication are each monitored with barcode tracking and digital logs.
• Post-Assembly Review: After full assembly, all connections, gaskets, and seals are visually and electrically inspected.
• Final Certification: Each transformer receives a serialized quality report based on its Pad Mounted Transformer Test results and compliance audit.

Because of this rigorous system, both the 45kVA and 75kVA units consistently achieve above-industry-standard performance ratings, ensuring long-term operation with minimal maintenance.

Preparing for Pad Mounted Transformer Installation

Because proper deployment is critical to product lifespan and user safety, our engineering team supports customers through every stage of Pad Mounted Transformer installation.

Before installation, customers receive:

• A customized wiring diagram and configuration file,
• A foundation preparation guide specific to transformer weight and cooling clearance,
• Oil fill documentation and valve location references.

During installation, our field engineers can support:

• Voltage phasing verification,
• Grounding system integrity checks,
• Load balancing and SCADA system integration.

Because installation environments vary — from residential neighborhoods to industrial yards — every unit is designed with flexible mounting options and preconfigured for easy connection to underground cables.

Looking Ahead: Scalable, Reliable, and Future-Ready

Because the energy landscape is changing rapidly, these Pad Mounted Transformers are built with future upgrades in mind. Optional features include:

• Smart metering and IoT sensors,
• SCADA-compatible communication ports,
• Arc-fault detection and real-time diagnostics.

Our design philosophy ensures that both the 45kVA and 75kVA Three Phase Pad Mounted Transformers remain compatible with evolving grid infrastructure, making them long-term assets in any distribution system.

Because energy reliability, safety, and efficiency cannot be left to chance, the testing and quality control of Pad Mounted Transformers remain our top priority. The ongoing evaluation of the 45kVA and 75kVA Three Phase Pad Mounted Transformers exemplifies our commitment to delivering world-class solutions for power distribution networks.

As these transformers move closer to final certification and deployment, utility providers, contractors, and end-users can trust that each unit has been thoroughly tested and carefully engineered — ready for immediate Pad Mounted Transformer installation.
