2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable
The 2XS(FL)2Y MDPE High Voltage Power Cable is a single-core aluminum conductor cable with XLPE insulation and an MDPE sheath, rated 26/45(52) kV. Designed for medium- and high-voltage power transmission, it meets IEC 60502 and IEC 60840 standards, offering excellent electrical performance, mechanical protection, and environmental resistance. Its robust construction features a copper conductor, semi-conductive screens, water-blocking tape, metallic screen, aluminum tape with PE coating, and a durable MDPE sheath, ensuring reliable operation in power stations, industrial facilities, and distribution networks. Suitable for underground, underwater, outdoor, indoor, and duct installations. A comprehensive quality management system governs production of the 2XS(FL)2Y power cable. Raw material testing, process inspection, and finished product testing are strictly implemented to ensure consistent quality, safety, and long-term operational stability.
- Voltage Rating(Uo/U)(Um) 26/45 kV (52 kV)
Construction
Technical Specifications
Quality Control
Application
Construction

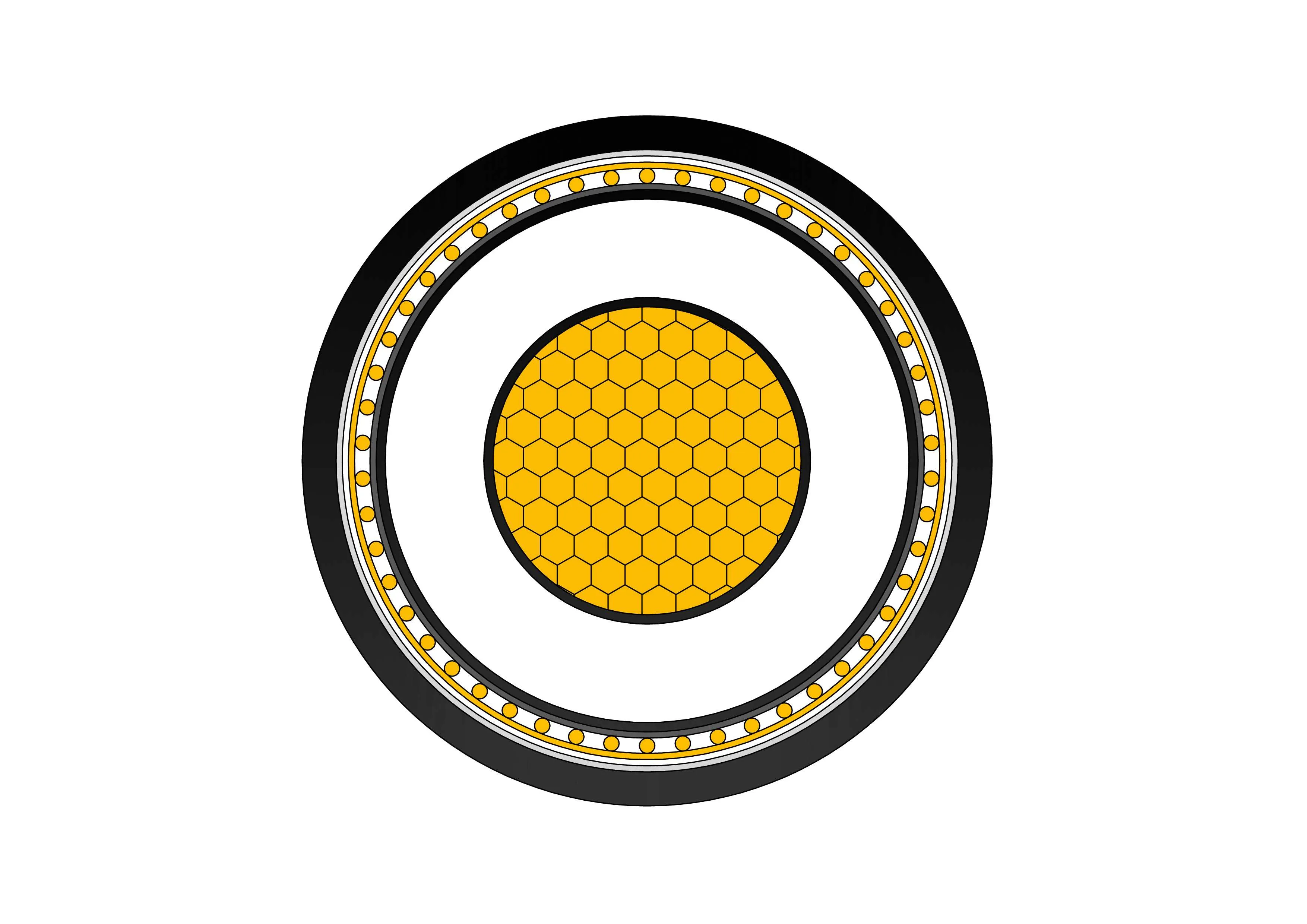

2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable Constrution
Conductor
Copper conductor (optional watertightness – WTC)
Conductor Screen
Semi-conductive screen extruded on the phase conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive screen extruded on insulation
Wrapping
Semi-conductive water swelling tape
Metallic Screen
Copper wires and equalising tape
Sheath
MDPE (Medium Density Polyethylene) Optional —semi-conductive layer
Sheath Colour
Black
Manufacturer Standard
IEC 60840
Tape
Longitudinally applied aluminium tape coated with PE copolymer
Application
2XS(FL)2Y MDPE High Voltage 26/45 (52) kV Power Cable is suitable for distribution networks and connections to generation units, plants, and processes, with versatile installation options including underground, underwater, outdoor, indoor, and cable ducts.
Technical Specifications
2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable
2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable
| No. Of Cores |
NOMINAL CROSS SECTIONAL AREA mm² |
INSULATION mm |
METALLIC SCREEN |
NOMINAL WEIGHT kg/km |
MAXIMUM PULLING FORCE kN |
||
| Nominal Thickness |
Nominal Diameter Over |
Nominal Cross Section mm² |
Nominal Diameter Over mm |
||||
| 1 | 95RM | 9.0 | 30.7 | 35 | 34.5 | 2270 | 4.8 |
| 1 | 120RM | 9.0 | 32.0 | 35 | 35.8 | 2550 | 6.0 |
| 1 | 150RM | 9.0 | 33.6 | 35 | 37.4 | 2860 | 7.5 |
| 1 | 185RM | 9.0 | 35.0 | 35 | 38.8 | 3240 | 9.3 |
| 1 | 240RM | 9.0 | 37.7 | 35 | 41.5 | 3940 | 12.0 |
| 1 | 300RM | 9.0 | 39.7 | 35 | 43.5 | 4500 | 15.0 |
| 1 | 400RM | 9.0 | 43.2 | 35 | 47.4 | 5480 | 20.0 |
| 1 | 500RM | 9.0 | 46.0 | 35 | 50.2 | 6600 | 25.0 |
| 1 | 630RM | 9.0 | 50.1 | 35 | 54.3 | 8020 | 31.5 |
| 1 | 800RM | 9.0 | 54.5 | 35 | 58.7 | 9770 | 40.0 |
| 1 | 1000RM | 9.0 | 58.5 | 35 | 63.1 | 11910 | 50.0 |
| 1 | 1200RMS | 9.0 | 63.8 | 50 | 68.4 | 14260 | 60.0 |
| 1 | 1400RMS | 9.0 | 68.0 | 50 | 72.6 | 16130 | 70.0 |
| 1 | 1600RMS | 9.0 | 71.8 | 50 | 76.4 | 18300 | 80.0 |
| 1 | 1800RMS | 9.0 | 75.4 | 50 | 80.0 | 20650 | 90.0 |
| 1 | 2000RMS | 9.0 | 76.8 | 50 | 81.4 | 22200 | 100.0 |
| 1 | 2500RMS | 9.0 | 83.2 | 50 | 88.2 | 27340 | 100.0 |
| 1 | 3000RMS | 9.0 | 91.6 | 50 | 96.6 | 33410 | 100.0 |
Quality Control
2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable
Raw Material Test
Raw material testing is the first quality assurance stage for the 2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable. Conductors are tested for electrical conductivity, tensile strength, elongation, and dimensional accuracy to ensure efficient current transmission and mechanical reliability. XLPE insulation compounds undergo dielectric strength testing, thermal aging tests, tensile strength, and elongation measurements to confirm long-term electrical and thermal stability at high voltage levels. Semi-conductive screening materials are tested for resistivity uniformity and adhesion compatibility with the insulation. All raw materials used in the 2XS(FL)2Y cable are fully traceable and documented. Only materials that meet all technical and quality requirements are released into production, ensuring a reliable foundation for high-voltage performance and long service life.
Process inspection
Process inspection ensures consistent manufacturing quality of the 2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable throughout all production stages. During conductor stranding and compaction, inspections verify strand structure, conductor diameter, surface smoothness, and concentricity. During XLPE insulation extrusion, critical parameters such as temperature, pressure, and line speed are continuously monitored. Insulation thickness, eccentricity, and surface quality are measured in real time. Cross-linking conditions are strictly controlled to ensure optimal dielectric performance. Process inspections also include spark testing and dimensional checks. All inspection data is recorded, reviewed, and traceable. Any deviation triggers immediate corrective action to maintain stable quality of the 2XS(FL)2Y power cable.
Finished Product
Finished product testing verifies the overall quality and safety of the 2XS(FL)2Y MDPE High Voltage 26/45 (52)kV Power Cable before shipment. Electrical tests include conductor resistance measurement, partial discharge testing, and AC voltage withstand testing according to rated voltage requirements. Mechanical tests evaluate tensile strength, bending performance, and impact resistance to ensure installation reliability. Thermal tests confirm insulation stability under continuous operating conditions. Water penetration and sheath integrity tests verify moisture protection performance. Dimensional inspections confirm conductor size, insulation thickness, screen construction, and sheath thickness. Final visual inspection ensures correct marking, smooth surface finish, and defect-free construction.
Application
The 2XS(FL)2Y MDPE 26/45 (52)kV power cable is used for underground high-voltage power transmission in utility networks, substations, industrial plants, renewable energy projects, and large infrastructure developments.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
Related Products
Type 450 Flexible Copper Screened Mining Cable With Two Earth And One Pilot Core
The Type 450 Flexible Copper Screened Mining Cable is a medium-voltage, heavy-duty mining cable designed for power supply in draglines, slow reeling, and industrial applications requiring two earth cores and one pilot core. It features tinned annealed copper conductors, EPR (XR-EP-90) insulation, and a tinned copper/polyamide braid screen for electrical shielding. The double-layer HD-PCP sheath provides extra heavy-duty protection, including oil resistance, flame retardancy, and chemical durability. Available in voltage ratings from 3.3kV to 33kV, the cable meets AS/NZS 2802 and related standards, ensuring high performance and reliability in harsh mining environments.
1/0 Purpura Aluminum Conductor Triplex Overhead Service Drop Cable
The 1/0 Purpura Aluminum Conductor Triplex Overhead Service Drop Cable is engineered for dependable secondary overhead power distribution from utility poles to residential and light commercial service entrances. The triplex configuration consists of two insulated aluminum phase conductors helically stranded around a bare aluminum neutral messenger, which provides both mechanical support and grounding functionality. With a 1/0 Purpura conductor size, this cable delivers enhanced current-carrying capacity, improved tensile strength, and controlled sag performance, making it suitable for longer spans and higher service loads. Aluminum conductors offer excellent corrosion resistance, reduced overall weight, and ease of handling during installation. Manufactured to meet ASTM and utility specifications, the 1/0 Purpura Aluminum Conductor Triplex Overhead Service Drop Cable ensures stable electrical performance, long service life, and consistent mechanical reliability in outdoor environments.
AMES AAAC Conductor Cable
AMES AAAC (All Aluminum Alloy Twisted) cables comply with ASTM B399 standards and have excellent conductivity and corrosion resistance. With 250 mm² nominal area and 19-strand design, it uses heat-treated aluminum-magnesium-silicon alloy (6201-T81) for enhanced strength (295 MPa min) and conductivity (53% IACS min). Meeting ASTM B398, B399, IEC 61089, and BS EN 50182 standards, this cable handles ampacity up to 600A at 75°C and voltages up to 33kV. The all-alloy construction avoids bimetallic corrosion, providing better resistance in harsh conditions than ACSR. Reduced weight minimizes sag and installation expenses, supporting longer spans. The Ames AAAC Conductor Cable delivers low electrical losses, high mechanical endurance, and excellent weather tolerance. Flame-retardant variants available. Perfect for urban grids, renewable projects, and coastal setups, it provides cost-effective, low-maintenance power delivery in overhead applications globally, excelling in reliability and lifespan over conventional conductors.
NYCY 0.6/1kV Low Voltage Power Cable
NYCY 0.6/1kV are low-voltage power cables designed according to VDE 0276 standard, suitable for fixed installation in indoor, outdoor, underground, cable ducts, or concrete (not exposed to mechanical vibration). Featuring stranded copper conductors, PVC insulation, filler, concentric copper wire screen with counter-helix tape, and robust PVC outer sheath, it complies with VDE 0276-603 and IEC standards. The concentric screen serves as neutral/earth conductor and provides excellent EMI shielding, reducing interference in sensitive areas. Suitable for direct burial, ducts, or indoor fixed installations, it offers good mechanical strength, moisture resistance, and flame-retardant properties. Copper conductors ensure low losses and high current capacity. The NYCY 0.6/1kV Low Voltage Power Cable delivers long service life with minimal maintenance, making it ideal for industrial plants, commercial buildings, residential networks, and infrastructure projects requiring screened, efficient low-voltage copper cabling for safe and interference-free energy transmission worldwide.2Y-high-voltage-power-cable.webp)
A2XS(FL)2Y MDPE High Voltage 64/110 (123) kV Power Cable
The A2XS(FL)2Y MDPE High Voltage 64/110 (123) kV Cable is a single-core aluminum conductor cable with XLPE insulation and an MDPE sheath, designed for extra-high voltage power transmission. Built according to IEC 60840 and IEC 62067 standards, it ensures superior electrical performance, mechanical protection, and water resistance. Suitable for underground, underwater, outdoor, indoor, and duct installations, it features water-blocking tape to prevent water propagation inside, ensuring long-term reliability in power stations, industrial plants, and distribution networks. Compliant with IEC 60840, VDE 0276-620, or equivalent standards, it offers high ampacity, superior water tree resistance, and extended service life even in wet, direct-buried, or aggressive soil conditions. The A2XS(FL)2Y MDPE is ideal for major UHV transmission grids, underground/submarine lines, river crossings, offshore wind connections, and large-scale renewable energy projects where water ingress protection, efficiency, and ultra-reliability are essential.
600/1000V PVC Insulated Cable to IEC 60502-1 Standard
The 600/1000V PVC Insulated Low Voltage Power Cable is designed for reliable power transmission in low-voltage electrical systems. Manufactured with high-quality copper or aluminum conductors and PVC insulation, this cable provides stable electrical performance, good flexibility, and long service life. The PVC insulation offers effective protection against moisture, abrasion, oils, and common chemicals, making the cable suitable for both indoor and outdoor installations. Rated at 600/1000 volts, the cable ensures safe and efficient power distribution under normal operating conditions. Its robust insulation structure supports consistent current flow while maintaining electrical safety. The cable is easy to install, route, and terminate, making it a practical solution for residential, commercial, and industrial power networks. With dependable insulation performance and mechanical durability, this low voltage power cable meets the demands of everyday electrical infrastructure.FAQ From Customers
-
What are the advantages of power cables and overhead lines?(1) Reliable operation, because it is installed in a hidden place such as underground, it is less damaged by external forces, has less chance of failure, and the power supply is safe, and it will not cause harm to people; (2) The maintenance workload is small and frequent inspections are not required; (3) No need to erect towers; (4) Help improve power factor.
-
Which aspects should be considered when choosing the cross section of a power cable?(1) The long-term allowable working current of the cable; (2) Thermal stability once short circuited; (3) The voltage drop on the line cannot exceed the allowable working range.
-
What are the measures for cable fire prevention?(1) Use flame-retardant cables; (2) Use fireproof cable tray; (3) Use fireproof paint; (4) Fire partition walls and fire baffles are installed at cable tunnels, mezzanine exits, etc.; (5) Overhead cables should avoid oil pipelines and explosion-proof doors, otherwise local pipes or heat insulation and fire prevention measures should be taken.
-
What should be paid attention to during the transportation and handling of cables?(1) During transportation, loading and unloading, cables and cable reels should not be damaged. It is strictly forbidden to push the cable reels directly from the vehicle. Generally, cables should not be transported and stored flat. (2) Before transporting or rolling the cable reel, ensure that the cable reel is firm, the cable is wound tightly, the oil pipe between the oil-filled cable and the pressure oil tank should be fixed without damage, the pressure oil tank should be firm, and the pressure indication should meet the requirements.
-
What inspections should be carried out for the acceptance of cable lines?(1) The cable specifications should meet the regulations, the arrangement should be neat, no damage, and the signs should be complete, correct and clear; (2) The fixed bending radius of the cable, the related distance and the wiring of the metal sheath of the single-core power cable should meet the requirements; (3) The cable terminal and the middle head should not leak oil, and the installation should be firm. The oil pressure of the oil-filled cable and the meter setting should meet the requirements; (4) Good grounding; (5) The color of the cable terminal is correct, and the metal parts such as the bracket are completely painted; (6) There should be no debris in the cable trench, tunnel, and bridge, and the cover should be complete.
