N2XY IEC 60502-1 XLPE PVC 0.6/1kV Cable
N2XY cable is a low-voltage power cable consisting of copper conductors, XLPE (cross-linked polyethylene) insulation, and a PVC (polyvinyl chloride) sheath, manufactured in accordance with IEC 60502-1 standards. Designed for 0.6/1kV fixed installations, it offers excellent electrical performance, mechanical strength, and thermal resistance, making it ideal for power transmission in industrial, commercial, and infrastructure projects.
- Flame Retardant Standard IEC/EN 60332-1-2
- Low Smoke Standard DIN EN 61034-1+2 / IEC 61034-1+2
- Halgon Free Standard DIN EN 60754-1 / IEC 60754-1
- Ozone and UV Resistant Standard EN60811-403, EN50396, ENISO4892-1/3
- Voltage Rating Uo/U(Um =1.2kV) 0.6/1kV
- Working Temperature -40℃ to +90℃
- System frequency range(Hz) 49-61
Construction
Technical Specifications
Quality Control
Application
Construction
N2XY IEC 60502-1 XLPE PVC 0.6/1kV Cable Conductor
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded circular or circular compacted
RM: Class 2 stranded circular or circular compacted
Insulation
XLPE (Cross-Linked Polyethylene)
Sheath
PVC (Polyvinyl Chloride)
Bedding
PVC (Polyvinyl Chloride)
Sheath Color
Black or Customize

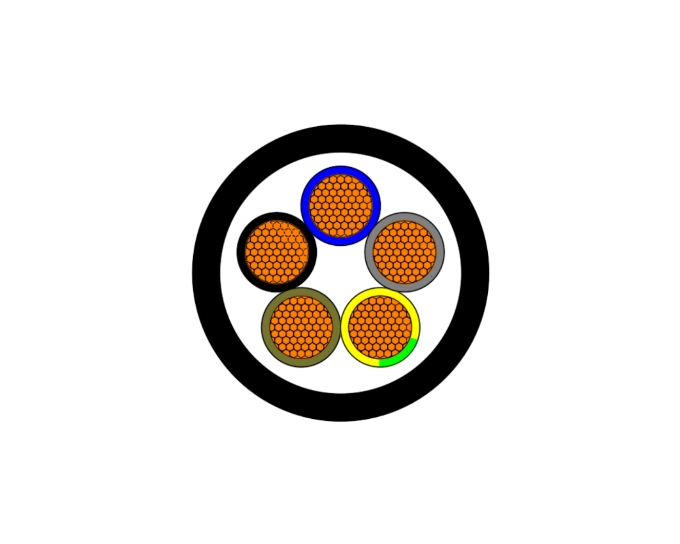

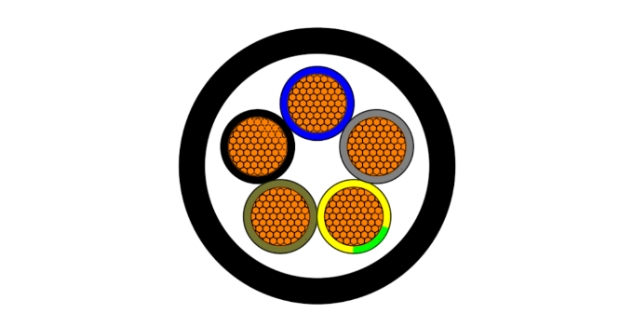

Core Identification
3 core: Green/Yellow, Blue, Brown
4 core: Green/Yellow. Brown, Black, Grey
5 core: Green/Yellow, Blue, Brown, Black, Grey
7 cores and above: Black with White numbers
4 core: Green/Yellow. Brown, Black, Grey
5 core: Green/Yellow, Blue, Brown, Black, Grey
7 cores and above: Black with White numbers
Technical Specifications
N2XY IEC 60502-1 XLPE PVC 0.6/1kV Cable
Dimension
| No .of Cores | Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | mm | mm | kg/km | |
| 1 | 16 | 0.7 | 1.8 | 9.6 | 216 |
| 1 | 25 | 0.9 | 1.8 | 11.5 | 318 |
| 1 | 35 | 0.9 | 1.8 | 12.6 | 415 |
| 1 | 50 | 1 | 1.8 | 14.1 | 543 |
| 1 | 70 | 1.1 | 1.8 | 15.8 | 784 |
| 1 | 95 | 1.1 | 1.8 | 17.8 | 1000 |
| 1 | 120 | 1.2 | 1.8 | 19.2 | 1239 |
| 1 | 150 | 1.4 | 1.8 | 21.2 | 1515 |
| 1 | 185 | 1.6 | 1.8 | 23.1 | 1872 |
| 1 | 240 | 1.7 | 1.8 | 25.6 | 2403 |
| 1 | 300 | 1.8 | 1.8 | 27.8 | 2974 |
| 1 | 400 | 2 | 1.9 | 31.1 | 3934 |
| 1 | 500 | 2.2 | 2 | 34.9 | 4692 |
| 1 | 630 | 2.8 | 2.8 | 46.6 | 6544 |
| 2 | 1.5 | 0.7 | 1.8 | 10.1 | 145 |
| 2 | 2.5 | 0.7 | 1.8 | 10.9 | 179 |
| 2 | 4 | 0.7 | 1.8 | 11.8 | 228 |
| 2 | 6 | 0.7 | 1.8 | 12.8 | 284 |
| 2 | 10 | 0.7 | 1.8 | 13.1 | 395 |
| 2 | 16 | 0.7 | 1.8 | 15 | 416 |
| 2 | 25 | 0.9 | 1.8 | 17 | 581 |
| 2 | 35 | 0.9 | 1.8 | 21.4 | 699 |
| 2 | 50 | 0.9 | 1.8 | 22.5 | 1109 |
| 3 | 1.5 | 0.7 | 1.8 | 10.5 | 162 |
| 3 | 2.5 | 0.7 | 1.8 | 11.4 | 205 |
| 3 | 4 | 0.7 | 1.8 | 12.4 | 286 |
| 3 | 6 | 0.7 | 1.8 | 13.4 | 338 |
| 3 | 10 | 0.7 | 1.8 | 15.8 | 505 |
| 3 | 16 | 0.7 | 1.8 | 18 | 719 |
| 3 | 25 | 0.9 | 1.8 | 21.8 | 1072 |
| 3 | 35 | 0.9 | 1.8 | 23.9 | 1403 |
| 3 | 50 | 1 | 1.9 | 23.8 | 1581 |
| 3 | 16/10 | 0.7 | 1.8 | 19.8 | 875.5 |
| 3 | 25/16 | 0.9/0.7 | 1.8 | 22.4 | 1223 |
| 3 | 35/16 | 0.9/0.7 | 1.8 | 24.3 | 1557 |
| 3 | 50/25 | 1/0.9 | 1.9 | 26.9 | 1863 |
| 3 | 70/35 | 1.1/0.9 | 2 | 30 | 2594 |
| 3 | 95/50 | 1.1/1 | 2.2 | 33.8 | 3505 |
| 3 | 120/70 | 1.2/1.1 | 2.3 | 37 | 4440 |
| 3 | 150/70 | 1.4/1.1 | 2.4 | 41.6 | 5333 |
| 3 | 185 | 1.6/1.1 | 2.6 | 45.8 | 6701 |
| 3 | 240 | 1.7/1.2 | 2.8 | 51.6 | 8674 |
| 3 | 300 | 1.8/1.4 | 3 | 67.2 | 10624 |
| 4 | 1.5 | 0.7 | 1.8 | 11.3 | 188 |
| 4 | 2.5 | 0.7 | 1.8 | 12.2 | 240 |
| 4 | 4 | 0.7 | 1.8 | 13.3 | 314 |
| 4 | 6 | 0.7 | 1.8 | 14.5 | 408 |
| 4 | 10 | 0.7 | 1.8 | 17.1 | 615 |
| 4 | 16 | 0.7 | 1.8 | 19.6 | 885 |
| 4 | 25 | 0.9 | 1.8 | 23.7 | 1330 |
| 4 | 35 | 0.9 | 1.8 | 26.2 | 1758 |
| 4 | 50 | 1 | 2 | 27.1 | 2082 |
| 4 | 70 | 1.1 | 2.1 | 31.4 | 2937 |
| 4 | 95 | 1.1 | 2.2 | 35 | 3955 |
| 4 | 120 | 1.2 | 2.4 | 39.3 | 4979 |
| 4 | 150 | 1.4 | 2.6 | 43.6 | 6129 |
| 4 | 185 | 1.6 | 2.7 | 48 | 7591 |
| 4 | 240 | 1.7 | 2.9 | 53.9 | 9875 |
| 4 | 300 | 1.8 | 2.6 | 68.9 | 15124 |
| 5 | 1.5 | 0.7 | 1.8 | 12.1 | 218 |
| 5 | 2.5 | 0.7 | 1.8 | 13.1 | 281 |
| 5 | 4 | 0.7 | 1.8 | 14.3 | 372 |
| 5 | 6 | 0.7 | 1.8 | 15.6 | 486 |
| 5 | 10 | 0.7 | 1.8 | 18.6 | 740 |
| 5 | 16 | 0.7 | 1.8 | 21.3 | 1071 |
| 5 | 25 | 0.9 | 1.8 | 25.9 | 1619 |
| 5 | 35 | 0.9 | 1.8 | 28.8 | 2138 |
| 5 | 50 | 1 | 2.1 | 29.4 | 2578 |
| 5 | 70 | 1.1 | 2.2 | 33.7 | 3816 |
| 5 | 95 | 1.1 | 2.4 | 38.6 | 4933 |
| 5 | 120 | 1.2 | 2.5 | 42.6 | 6153 |
| 5 | 150 | 1.4 | 2.7 | 47.7 | 7587 |
| 5 | 185 | 1.6 | 2.9 | 52.8 | 9454 |
| 5 | 240 | 1.7 | 3.1 | 58.7 | 12242 |
| 7 | 1.5 | 0.7 | 1.8 | 12.9 | 260 |
| 7 | 2.5 | 0.7 | 1.8 | 14 | 342 |
| 7 | 4 | 0.7 | 1.8 | 15.4 | 461 |
| 10 | 1.5 | 0.7 | 1.8 | 15.6 | 357 |
| 10 | 2.5 | 0.7 | 1.8 | 17.2 | 475 |
| 10 | 4 | 0.7 | 1.8 | 19 | 646 |
| 12 | 1.5 | 0.7 | 1.8 | 16.1 | 394 |
| 12 | 2.5 | 0.7 | 1.8 | 17.6 | 528 |
| 14 | 1.5 | 0.7 | 1.8 | 16.8 | 436 |
| 14 | 2.5 | 0.7 | 1.8 | 18.5 | 592 |
| 16 | 4 | 0.7 | 1.8 | 23 | 971 |
| 19 | 1.5 | 0.7 | 1.8 | 18.4 | 543 |
| 19 | 2.5 | 0.7 | 1.8 | 20.3 | 746 |
| 24 | 1.5 | 0.7 | 1.8 | 21.2 | 675 |
| 24 | 2.5 | 0.7 | 1.8 | 23.4 | 931 |
| 30 | 1.5 | 0.7 | 1.8 | 22.3 | 788 |
| 30 | 2.5 | 0.7 | 1.8 | 26.3 | 1164 |
| 40 | 1.5 | 0.7 | 1.8 | 24.6 | 995 |
| 40 | 2.5 | 0.7 | 1.9 | 27.5 | 1416 |
