N2XH IEC 60502-1 XLPE LSZH 0.6/1kV Cable
N2XH IEC 60502-1 XLPE LSZH 0.6/1kV Cable is a low-voltage, halogen-free, flame-retardant power cable with copper conductors and XLPE (cross-linked polyethylene) insulation. It complies with IEC 60502-1 and other relevant standards, offering enhanced fire safety and minimal smoke emission, making it ideal for use in environments where human safety and equipment protection are critical.
- Standards VDE0276 Part 604, IEC 60502-1, IEC/EN 60332-3-24 Cat.C, IEC/EN 60228, EN 62230, IEC 60340
- Voltage Rating Uo/U(Um =1.2kV) 0.6/1kV
- Working Temperature -40℃ to +90℃
- System Frequency Range(Hz) 49-61
Construction
Technical Specifications
Quality Control
Application

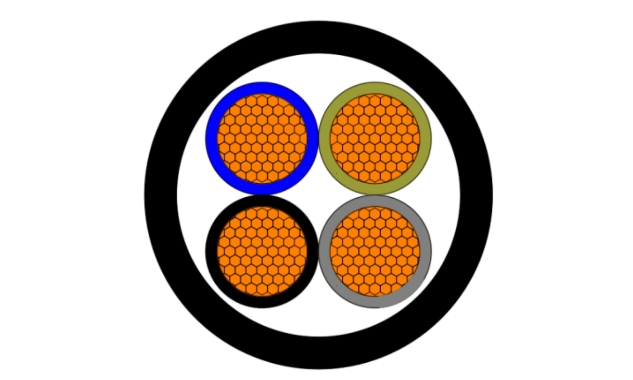

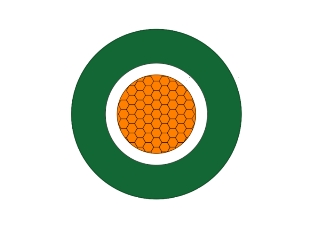

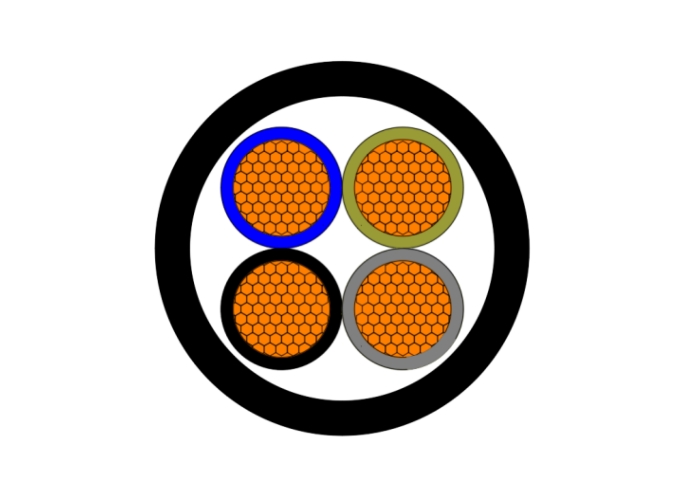

Construction
N2XH Solar Cables Conductor
Conductor
Class 1 solid copper conductor
Class 2 stranded copper conductor
Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Sheath
LSZH (Low Smoke Zero Halogen)
Sheath Colour
Black or Customize
Core Identification
1 core: Black
2 core: Blue, Brown
3 core: Black, Brown, Grey
3 core including earth: Green/Yellow, Blue, Brown
3 core + reduced E: Blue, Brown, Black, Grey
4 core: Blue, Brown, Black, Grey
4 core including earth: Green/Yellow, Brown, Black, Grey
5 core: Blue, Brown, Black, Grey, Black
5 core including earth: Green/Yellow, Blue, Brown, Black, Grey
Technical Specifications
N2XH IEC 60502-1 XLPE LSZH 0.6/1kV Cable
Dimension
| No. of Cores | Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | mm | kg/km | |
| 1 | 1.5 | 0.7 | 7 | 60 |
| 1 | 2.5 | 0.7 | 8 | 75 |
| 1 | 4 | 0.7 | 8.35 | 90 |
| 1 | 6 | 0.7 | 8.90 | 115 |
| 1 | 10 | 0.7 | 9.65 | 165 |
| 1 | 16 | 0.7 | 10.50 | 230 |
| 1 | 25 | 0.9 | 12.05 | 340 |
| 1 | 35 | 0.9 | 13.10 | 440 |
| 1 | 50 | 1 | 14.50 | 570 |
| 1 | 70 | 1.1 | 16.30 | 795 |
| 1 | 95 | 1.1 | 18.00 | 1055 |
| 1 | 120 | 1.3 | 19.50 | 1315 |
| 1 | 150 | 1.4 | 21.70 | 1600 |
| 1 | 185 | 1.6 | 23.50 | 1975 |
| 1 | 240 | 1.7 | 26.40 | 2525 |
| 1 | 300 | 1.8 | 28.70 | 3030 |
| 1 | 400 | 2.0 | 31.90 | 3820 |
| 1 | 500 | 2.2 | 35.30 | 4825 |
| 1 | 630 | 2.4 | 39.60 | 6200 |
| 2 | 1.5 | 0.7 | 9.25 | 125 |
| 2 | 2.5 | 0.7 | 10.10 | 155 |
| 2 | 4 | 0.7 | 11.05 | 195 |
| 2 | 6 | 0.7 | 12.05 | 295 |
| 2 | 10 | 0.7 | 14.50 | 390 |
| 2 | 16 | 0.7 | 16.40 | 560 |
| 2 | 25 | 0.9 | 19.90 | 850 |
| 2 | 35 | 0.9 | 22.20 | 1010 |
| 2 | 50 | 1 | 25.00 | 1364 |
| 2 | 70 | 1.1 | 28.80 | 1924 |
| 2 | 95 | 1.1 | 32.60 | 2578 |
| 2 | 120 | 1.3 | 36.00 | 3307 |
| 2 | 150 | 1.4 | 41.20 | 4005 |
| 2 | 185 | 1.6 | 45.20 | 4964 |
| 2 | 240 | 1.7 | 51.20 | 6503 |
| 3 | 2.5 | 0.7 | 10.60 | 180 |
| 3 | 4 | 0.7 | 11.65 | 235 |
| 3 | 6 | 0.7 | 12.70 | 325 |
| 3 | 10 | 0.7 | 15.35 | 485 |
| 3 | 16 | 0.7 | 17.40 | 705 |
| 3 | 25 | 0.9 | 21.15 | 1080 |
| 3 | 35 | 0.9 | 23.60 | 1425 |
| 3 | 50 | 1 | 26.65 | 1840 |
| 3 | 70 | 1.1 | 30.70 | 2540 |
| 3 | 95 | 1.1 | 35.00 | 3430 |
| 3 | 120 | 1.3 | 38.65 | 4440 |
| 3 | 150 | 1.4 | 44.00 | 5380 |
| 3.0 | 185.0 | 1.6 | 48.30 | 6920 |
| 3 | 240 | 1.7 | 55.00 | 8420 |
| 3 | 300 | 1.8 | 60.30 | 10927 |
| 3 | 400 | 2 | 67.80 | 13709 |
| 3 | 16/10 | 0.7 | 18.45 | 779 |
| 3 | 25/16 | 0.9 | 22.40 | 1175 |
| 3 | 35/16 | 0.9 | 24.30 | 1480 |
| 3 | 50/25 | 1 | 28.00 | 2031 |
| 3 | 70/35 | 1.1 | 31.90 | 2813 |
| 3 | 95/50 | 1.1 | 36.40 | 3772 |
| 3 | 120/70 | 1.3 | 40.65 | 4858 |
| 3 | 150/70 | 1.4 | 45.40 | 5680 |
| 3 | 185/95 | 1.6 | 50.10 | 7082 |
| 3 | 240/120 | 1.7 | 56.70 | 9363 |
| 3 | 300/150 | 1.9 | 62.60 | 11393 |
| 4.0 | 1.5 | 0.7 | 10.5 | 170.0 |
| 4 | 2.5 | 0.7 | 11.40 | 215 |
| 4 | 4 | 0.7 | 12.60 | 290 |
| 4 | 6 | 0.7 | 13.75 | 390 |
| 4 | 10 | 0.7 | 17.00 | 600 |
| 4 | 16 | 0.7 | 19.00 | 870 |
| 4 | 25 | 0.9 | 23.35 | 1365 |
| 4 | 35 | 0.9 | 25.85 | 1875 |
| 4 | 50 | 1 | 29.45 | 2550 |
| 4 | 70 | 1.1 | 34.00 | 3010 |
| 4 | 95 | 1.1 | 38.75 | 3960 |
| 4 | 120 | 1.3 | 42.55 | 5160 |
| 4 | 150 | 1.4 | 48.70 | 6150 |
| 4 | 185 | 1.6 | 53.45 | 7780 |
| 4 | 240 | 1.7 | 60.90 | 9550 |
| 5 | 1.5 | 0.7 | 11.45 | 195 |
| 5 | 2.5 | 0.7 | 12.45 | 255 |
| 5 | 4 | 0.7 | 13.80 | 345 |
| 5 | 6 | 0.7 | 15.10 | 475 |
| 5 | 10 | 0.7 | 18.60 | 735 |
| 5 | 16 | 0.7 | 21.00 | 1070 |
| 5 | 25 | 0.9 | 25.70 | 1605 |
| 5 | 35 | 0.9 | 28.70 | 2139 |
| 5 | 50 | 1 | 32.70 | 2870 |
| 5 | 70 | 1.1 | 37.60 | 4054 |
| 5 | 95 | 1.1 | 42.80 | 5415 |
| 5 | 120 | 1.3 | 47.80 | 7039 |
| 5 | 150 | 1.4 | 54.20 | 8447 |
| 5 | 185 | 1.6 | 59.00 | 10800 |
| 5 | 240 | 1.7 | 69.90 | 14600 |
Quality Control
N2XH IEC 60502-1 XLPE LSZH 0.6/1kV Cable
Raw Material Test
NPC has always chosen raw material suppliers who have a good reputation, possess stable supply capabilities and have passed international quality system certifications (such as ISO 9001). And establish a long-term cooperative relationship with it, forming a stable and reliable raw material supply chain.
We will ensure that all raw materials are subject to strict inspection procedures upon entry to the factory, and can only be stored in the warehouse after they have been confirmed to meet the standards.
Process inspection
NPC has strict quality control procedures for each process in the cable production process.
Process documents: Develop detailed process flow and operation instructions to clarify the operating specifications and quality standards of each process.
Equipment calibration: Regularly calibrate key equipment such as wire drawing machines, stranding machines, extruders, and diameter gauges to ensure that the accuracy meets the requirements.
First piece confirmation: Before each batch of production, the first piece is trial-produced to confirm that the process parameters, product dimensions, electrical performance, etc. meet the standards before mass production can be carried out.
Finished Product
Inspectors conduct ex-factory inspections on cables according to relevant standards and corresponding product inspection specifications to ensure that each ex-factory product complies with the process regulations.
Application
N2XH IEC 60502-1 XLPE LSZH 0.6/1kV Cable is a low-voltage, halogen-free, flame-retardant power cable with copper conductors and XLPE (cross-linked polyethylene) insulation. It complies with IEC 60502-1 and other relevant standards, offering enhanced fire safety and minimal smoke emission, making it ideal for use in environments where human safety and equipment protection are critical.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
