NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable
The NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable is a high-performance flexible medium-voltage trailing/reeling cable engineered for extreme mining and tunneling conditions. It comprises class 5 finely stranded tinned copper phase conductors for superior flexibility and corrosion resistance, semi-conductive conductor and insulation screens for field control, EPR insulation for excellent dielectric strength and 90°C continuous operation, copper wire braid screen for EMI protection and grounding, control conductors, monitoring conductor (ÜL), and a durable rubber outer sheath resistant to oil, flame, abrasion, tearing, and mechanical stress. Compliant with DIN VDE 0250, it handles high tensile loads, fast reeling speeds, tight bending radii, and effective EMC shielding across all voltage levels. The NTSCGEWOU delivers safe, reliable MV power to mobile equipment such as shearers, tunnel boring machines, draglines, and conveyors in harsh underground and opencast environments, minimizing downtime and ensuring long-term operational efficiency.
- Voltage Rating Uo/U 3.6/6kV | 6/10kV | 8.7/15kV | 12/20kV
-
Test Voltage
3.6/6kV: 11kV
6/10kV: 17kV
8.7/15kV: 24kV
12/20kV: 29kV - Maximum Torsional Stress (°/m) ± 25
- Minimum Bending Radius Fixed: 6 x overall diameter
- Maximum Short Circuit Temperature +250°C
- Maximum Working Speed (m/min) 20
- Mobile Condition -25°C to+ 80°C
- Static Condition -40°C to+ 80°C
- Maximum Torsional Stress ±25°/m
Construction
Technical Specifications
Quality Control
Application

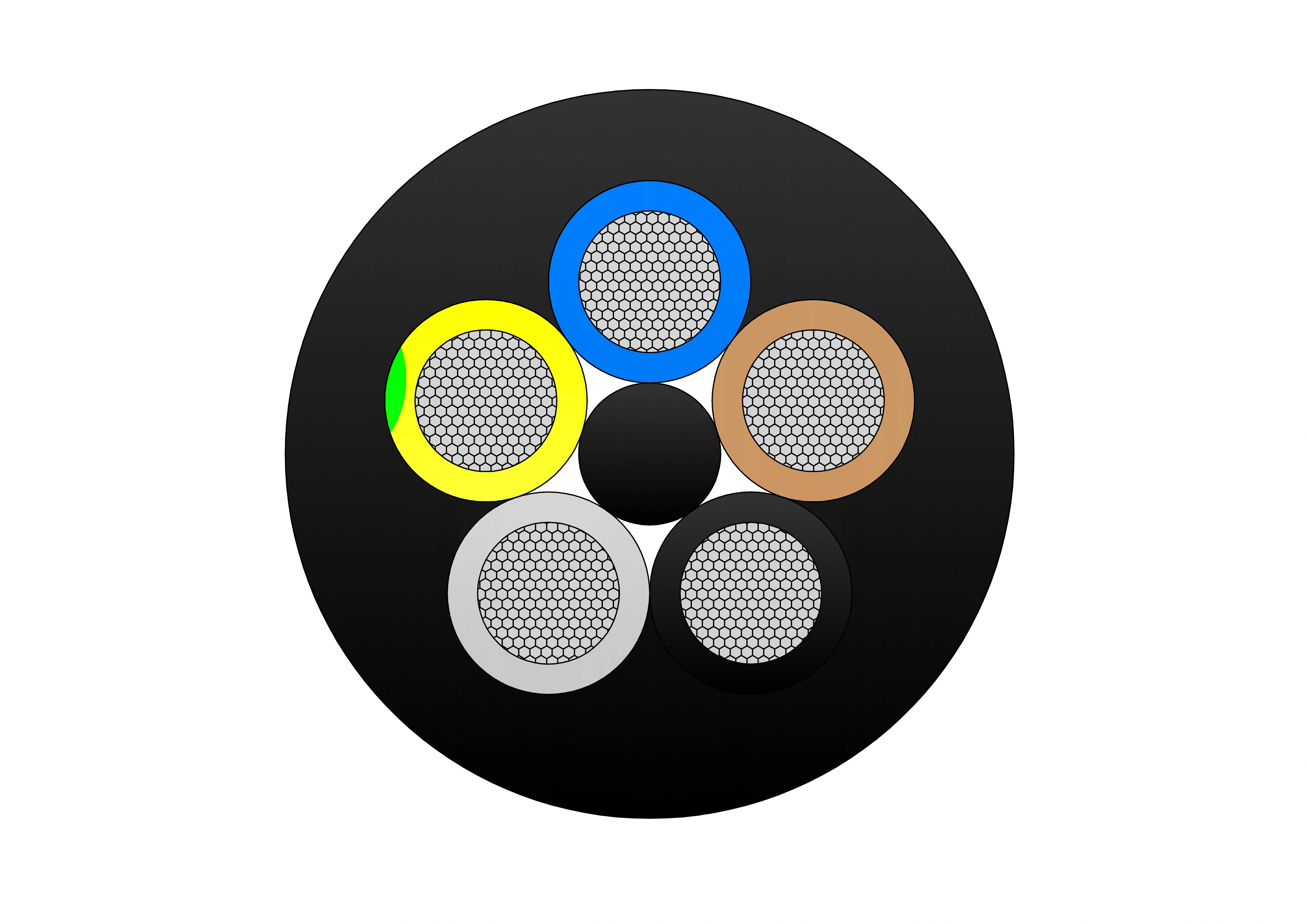

Construction
NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable Constrution
Phase Conductor
Class 5 flexible stranded tinned copper
Insulation
Rubber compound
Earth Conductor
Class 5 tinned copper conductor
Central Filler
Semi-conductive compound on a polyester textile support
Inner Sheath
Rubber compound
Anti-Torsion Braid
Polyester
Outer Sheath
Rubber compound
Sheath Colour
Yellow
Manufacturer Standard
VDE 0250 Part 813, HD 22.16, VDE 0295, EN 60228
Flame Retardant
IEC/EN 60332-1-2
Note
(N)TSCGEWOU ATB is available with Anti-Torsion Braid
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer
Semi-conductive rubber layer on the insulation
Semi-conductive rubber layer on the insulation
Application
NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV cables are used for fixed power distribution in mining operations and along material handling systems. They are suitable for both indoor and outdoor environments, offering reliable performance under tough conditions.
Technical Specifications
NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable
NTSCGEWOU 3.6/6kV Cable
NTSCGEWOU 6/10kV Cable
NTSCGEWOU 8.7/15kV Cable
NTSCGEWOU 12/20kV Cable
|
No. Of Cores |
Nominal Cross Sectional Area mm² |
CONDUCTOR DIAMETER |
NOMINAL OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
|
|
Phase Conductor |
Earth Conductor |
mm | mm | N | kg/km | |
| 3+3 | 25 | 25/3 | 6.9 | 39.7 | 1500 | 2380 |
| 3+3 | 35 | 25/3 | 7.8 | 43.7 | 2100 | 2920 |
| 3+3 | 50 | 25/3 | 9.3 | 46.8 | 3000 | 3520 |
| 3+3 | 70 | 35/3 | 11.1 | 50.7 | 4200 | 4430 |
| 3+3 | 95 | 50/3 | 12.7 | 56.7 | 5700 | 5580 |
| 3+3 | 120 | 70/3 | 14.5 | 60.5 | 7200 | 6770 |
| 3+3 | 150 | 70/3 | 16.7 | 67.15 | 9000 | 8260 |
| 3+3 | 185 | 95/3 | 17.6 | 69 | 11100 | 9400 |
|
No. Of Cores |
Nominal Cross Sectional Area mm² |
CONDUCTOR DIAMETER |
NOMINAL OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
|
|
Phase Conductor |
Earth Conductor |
mm | mm | N | kg/km | |
| 3+3 | 25 | 25/3 | 6.9 | 39.7 | 1500 | 2380 |
| 3+3 | 35 | 25/3 | 7.8 | 43.7 | 2100 | 2920 |
| 3+3 | 50 | 25/3 | 9.3 | 46.8 | 3000 | 3520 |
| 3+3 | 70 | 35/3 | 11.1 | 50.7 | 4200 | 4430 |
| 3+3 | 95 | 50/3 | 12.7 | 56.7 | 5700 | 5640 |
| 3+3 | 120 | 70/3 | 14.5 | 60.5 | 7200 | 6830 |
| 3+3 | 150 | 70/3 | 16.7 | 70.3 | 9000 | 8320 |
| 3+3 | 185 | 95/3 | 17.6 | 69 | 11100 | 9500 |
|
No. Of Cores |
Nominal Cross Sectional Area mm² |
CONDUCTOR DIAMETER |
NOMINAL OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
|
|
Phase Conductor |
Earth Conductor |
mm | mm | N | kg/km | |
| 3+3 | 25 | 25/3 | 6.8 | 45.5 | 1500 | 2860 |
| 3+3 | 35 | 25/3 | 7.8 | 47 | 2100 | 3210 |
| 3+3 | 50 | 35/3 | 9.3 | 50.3 | 3000 | 3830 |
| 3+3 | 70 | 50/3 | 11.1 | 55.9 | 4200 | 5000 |
| 3+3 | 95 | 70/3 | 12.7 | 59.3 | 5700 | 5870 |
| 3+3 | 120 | 70/3 | 14.5 | 65 | 7200 | 7370 |
| 3+3 | 150 | 95/3 | 16.7 | 69.7 | 9000 | 8590 |
| 3+3 | 185 | 25/3 | 17.6 | 71.8 | 11100 | 9750 |
|
No. Of Cores |
Nominal Cross Sectional Area mm² |
CONDUCTOR DIAMETER |
NOMINAL OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
|
|
Phase Conductor |
Earth Conductor |
mm | mm | N | kg/km | |
| 3+3 | 25 | 25/3 | 6.9 | 47.2 | 1500 | 3080 |
| 3+3 | 35 | 25/3 | 7.8 | 52.6 | 2100 | 3460 |
| 3+3 | 50 | 35/3 | 9.3 | 54.6 | 3000 | 4310 |
| 3+3 | 70 | 50/3 | 11.1 | 58.4 | 4200 | 5310 |
| 3+3 | 95 | 70/3 | 12.7 | 61.9 | 5700 | 6180 |
| 3+3 | 120 | 70/3 | 14.5 | 67.5 | 7200 | 7730 |
| 3+3 | 150 | 95/3 | 16.7 | 72.2 | 9000 | 8970 |
Quality Control
NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable
Raw Material Test
Raw Material Test for NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable ensures premium MV-grade materials for mining reliability. The rigorous process includes: Supplier Certification Review: Verify class 5 tinned copper meets DIN EN 60228/IEC 60228 for purity (>99.9% Cu), stranding, and tin coating; EPR insulation and rubber sheath compounds certified to VDE 0250 for multi-voltage performance. Conductor Analysis: Test tinned copper for tensile strength (>200 MPa), elongation (>20%), conductivity (≥97% IACS), and tin layer uniformity to withstand corrosion and mechanical stress. Semi-Conductive & Insulation Testing: Semi-conductive layers checked for resistivity, adhesion, and compatibility; EPR insulation evaluated for tensile (>6.5 MPa), elongation (>300%), dielectric strength (>20 kV/mm), and thermal aging per IEC 60502, scaled to 3.6/6kV up to 12/20kV ratings.
Process inspection
Process Inspection during manufacturing of NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable maintains precision for multi-voltage integrity. Steps include: Conductor Stranding: Monitor fine class 5 stranding of phase/control/monitoring conductors for uniform lay length, compactness, and flexibility. Layer Extrusion: Apply semi-conductive screens and EPR insulation at controlled thicknesses; inline scanners, spark testers, and eccentricity monitors detect voids or defects across voltage configurations. Screening & Assembly: Braid copper wires for earth/screening with precise coverage/tension; integrate control and monitoring conductors. Outer Sheath Extrusion: Apply robust rubber sheath; real-time checks on thickness, surface finish, and adhesion to ensure sealing and durability. Continuous Monitoring: Track conductor resistance, insulation integrity, screen continuity, overall diameter, and voltage-specific parameters throughout production.
Finished Product
Finished Product Test confirms the NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable meets MV standards before shipment. The procedure includes: Visual & Dimensional Inspection: Examine full length for defects, uniformity, markings, and measure outer diameter/weight per meter across all voltage variants. Electrical Tests: Perform DC resistance, insulation resistance (>1000 MΩ·km), high-voltage withstand (11kV for 3.6/6kV, 17kV for 6/10kV, 24kV for 8.7/15kV, 29kV for 12/20kV/5 min), partial discharge, and screen/monitoring continuity per VDE/IEC. Mechanical Evaluation: Test bending radius (6–8× OD), tensile strength, abrasion, tear, and torsional resistance to simulate mining conditions. Sheath & Insulation Performance: Verify oil immersion, flame retardancy (IEC 60332), thermal aging, and moisture resistance for long-term durability.
Application
The NTSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV Cable is ideal for underground/opencast mining trailing/reeling systems, tunnel boring machines, coal cutters, heavy mobile equipment connections, conveyor power feeds, and switchgear links requiring flexible, screened MV cable with monitoring in high-mechanical-stress environments.
