(N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV ATB Cable
The (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV ATB Cable is a medium voltage flexible power cable designed in compliance with VDE 0250 standards. It features Class 5 tinned copper conductors, EPR rubber insulation, semi-conductive layers, halogen-free flame-retardant rubber sheath, and an earth detection conductor. The ATB construction ensures superior mechanical strength, oil resistance, abrasion resistance, and flame retardancy, making it ideal for open-pit mining, tunneling, and other heavy-duty mobile equipment applications under extreme mechanical stress. It includes tinned class 5 copper phase conductors, semi-conductive screens, EPR insulation for reliable dielectric and thermal performance (90°C rating), copper braid screen, control conductors, monitoring conductor (ÜL), anti-torsion braid to reduce twisting under load, and a robust rubber sheath resistant to oils, flames, abrasion, and mechanical damage.
- Voltage Rating Uo/U 3.6/6kV | 6/10kV | 8.7/15kV | 12/20kV
-
Test Voltage
3.6/6kV: 11kV
6/10kV: 17kV
8.7/15kV: 24kV
12/20kV: 29kV -
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -25°C to +80°C -
Minimum Bending Radius
Fixed: 6 x overall diameter
Flexed: 10 x overall diameter - Maximum Short Circuit Temperature +250°C
Construction
Technical Specifications
Quality Control
Application
Construction

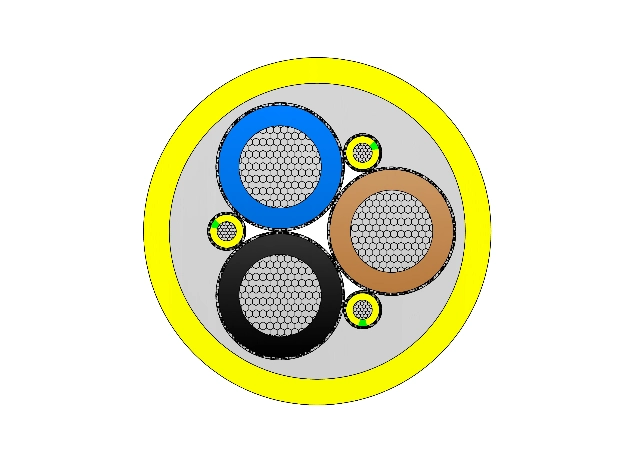

(N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV ATB Cable Constrution
Phase Conductor
Class 5 tinned copper conductor
Insulation
Rubber compound
Earth Conductor
Class 5 tinned copper conductor
Central Filler
Semi-conductive compound on a polyester textile support
Inner Sheath
Rubber compound
Anti-Torsion Braid
Polyester braid between the inner and outer sheath
Outer Sheath
Abrasion-resistant rubber compound
Sheath Colour
Yellow
Manufacturer Standard
VDE 0250 Part 813, VDE 0295, EN 60228
Flame Retardant
IEC/EN 60332-1-2
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer
semi-conductive rubber layer on the insulation
semi-conductive rubber layer on the insulation
Application
(N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV ATB cables are medium voltage flexible cables according to VDE specifications, designed for heavy mobile equipment in open pit mines subjected to extreme mechanical stress and abrasion under towing operations. The cables have an earth detection conductor and are suitable for power supply applications in harsh environments, both indoors and outdoors.
Technical Specifications
(N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV ATB Cable
(N)TSCGEWOU 3.6/6kV ATB Cable
(N)TSCGEWOU 6/10kV ATB Cable
(N)TSCGEWOU 8.7/15kV ATB Cable
(N)TSCGEWOU 12/20kV ATB Cable
|
No. Of Cores |
Nominal Cross Sectional Area mm² |
CONDUCTOR DIAMETER |
MINIMUM OVERALL DIAMETER |
MAXIMUM OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
|
|
Phase N Conductor |
Earth Conductor |
mm | mm | mm | N | kg/km | |
| 3+3 | 25 | 25/3 | 6.8 | 39.9 | 41.6 | 1500 | 2390 |
| 3+3 | 35 | 25/3 | 7.8 | 42.9 | 44.6 | 2100 | 2970 |
| 3+3 | 50 | 25/3 | 9.4 | 46 | 47.7 | 3000 | 3600 |
| 3+3 | 70 | 35/3 | 11.2 | 49.8 | 51.6 | 4200 | 4600 |
| 3+3 | 95 | 50/3 | 12.7 | 55.8 | 57.6 | 5700 | 5800 |
| 3+3 | 120 | 70/3 | 14.4 | 59.6 | 61.4 | 7200 | 7070 |
| 3+3 | 150 | 70/3 | 16.3 | 66 | 68.3 | 9000 | 8870 |
| 3+3 | 185 | 95/3 | 17.6 | 67.9 | 70.2 | 11100 | 9980 |
|
No. Of Cores CONTROL+UL) |
Nominal Cross Sectional Area mm² |
CONDUCTOR DIAMETER |
MINIMUM OVERALL DIAMETER |
MAXIMUM OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
|
|
Phase N Conductor |
Earth Conductor |
mm | mm | mm | N | kg/km | |
| 3+3 | 25 | 25/3 | 6.8 | 39.9 | 42.2 | 1500 | 2430 |
| 3+3 | 35 | 25/3 | 7.8 | 42.9 | 45.2 | 2100 | 3010 |
| 3+3 | 50 | 25/3 | 9.4 | 46 | 48.3 | 3000 | 3640 |
| 3+3 | 70 | 35/3 | 11.2 | 49.8 | 52.2 | 4200 | 4640 |
| 3+3 | 95 | 50/3 | 12.7 | 55.8 | 58.2 | 5700 | 5900 |
| 3+3 | 120 | 70/3 | 14.4 | 59.6 | 62.1 | 7200 | 7160 |
| 3+3 | 150 | 70/3 | 16.3 | 66 | 69 | 9000 | 8970 |
| 3+3 | 185 | 95/3 | 17.6 | 67.9 | 70.9 | 11100 | 10120 |
|
No. Of Cores CONTROL+UL) |
Nominal Cross Sectional Area mm² |
CONDUCTOR DIAMETER |
MINIMUM OVERALL DIAMETER |
MAXIMUM OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
|
|
Phase N Conductor |
Earth Conductor |
mm | mm | mm | N | kg/km | |
| 3+3 | 25 | 25/3 | 6.8 | 44.7 | 46.4 | 1500 | 2800 |
| 3+3 | 35 | 25/3 | 7.8 | 46.2 | 47.9 | 2100 | 3160 |
| 3+3 | 50 | 25/3 | 9.4 | 49.4 | 51.2 | 3000 | 3950 |
| 3+3 | 70 | 35/3 | 11.2 | 55 | 56.8 | 4200 | 5020 |
| 3+3 | 95 | 50/3 | 12.7 | 58.4 | 60.2 | 5700 | 5840 |
| 3+3 | 120 | 70/3 | 14.4 | 63.9 | 66.2 | 7200 | 7420 |
| 3+3 | 150 | 70/3 | 16.3 | 68.5 | 70.9 | 9000 | 8620 |
|
No. Of Cores CONTROL+UL) |
Nominal Cross Sectional Area mm² |
CONDUCTOR DIAMETER |
MINIMUM OVERALL DIAMETER |
MAXIMUM OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
|
|
Phase N Conductor |
Earth Conductor |
mm | mm | mm | N | kg/km | |
| 3+3 | 25 | 25/3 | 6.8 | 47.3 | 49 | 1500 | 3340 |
| 3+3 | 35 | 25/3 | 7.8 | 48.8 | 50.6 | 2100 | 3690 |
| 3+3 | 50 | 25/3 | 9.4 | 53.7 | 55.5 | 3000 | 4640 |
| 3+3 | 70 | 35/3 | 11.2 | 57.5 | 59.3 | 4200 | 5720 |
| 3+3 | 95 | 50/3 | 12.7 | 60.8 | 63.1 | 5700 | 6660 |
| 3+3 | 120 | 70/3 | 14.4 | 66.4 | 68.7 | 7200 | 8200 |
Quality Control
(N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV ATB Cable
Raw Material Test
Raw Material Test for (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV ATB Cable prioritizes anti-torsion and multi-voltage quality. Steps include: Certification Verification: Tinned copper, EPR, rubber sheath, and anti-torsion braid meet VDE 0250/IEC standards for voltage compatibility. Conductor Testing: Tensile, elongation, conductivity, tin coating analysis to ensure corrosion resistance. Insulation/Screen Evaluation: EPR dielectric/thermal properties; semi-conductive adhesion/resistivity per voltage. Sheath & ATB Checks: Abrasion/oil/flame resistance, anti-torsion braid tensile/torsional performance. Braid & Monitoring Validation: Coverage, strength, conductivity; monitoring conductor continuity.
Process inspection
Process Inspection for (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV ATB Cable enforces precision. The procedure features: Stranding Control: Uniform tinned copper phases/control/monitoring. Extrusion Monitoring: Semi-conductive screens, EPR insulation with defect detection for voltages. Screening & ATB: Precise braid application and anti-torsion integration. Real-Time Checks: Resistance, integrity, diameter monitoring. Optimization: Extrusion parameters adjusted. Correction: Immediate fixes. This guarantees the (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15k,V and 12/20kV ATB Cable excels in MV electrical, torsional, and mechanical performance.
Finished Product
Finished Product Test validates the (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV ATB Cable for deployment. Steps include: Inspection: Visual/dimensional/marking verification. Electrical: Resistance, insulation, withstand (11–29kV), partial discharge. Mechanical: Bending, tensile, abrasion, torsional (ATB) checks.Performance: Oil/flame/thermal aging verification. Validation: Voltage rating and short-circuit capability confirmed. Release: Only passing (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV, and 12/20kV ATB Cable approved for dependable mining/tunneling MV use.
Application
Ideal for (N)TSCGEWOU 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV ATB Cable in opencast mining trailing, heavy mobile equipment (excavators, draglines, shovels), tunnel boring power feeds, conveyor systems, and reeling drums needing anti-torsion, flexible screened MV cable with monitoring and strong mechanical protection.
