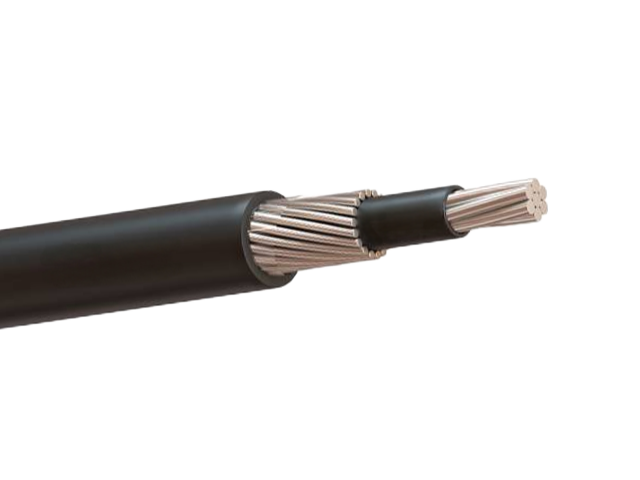

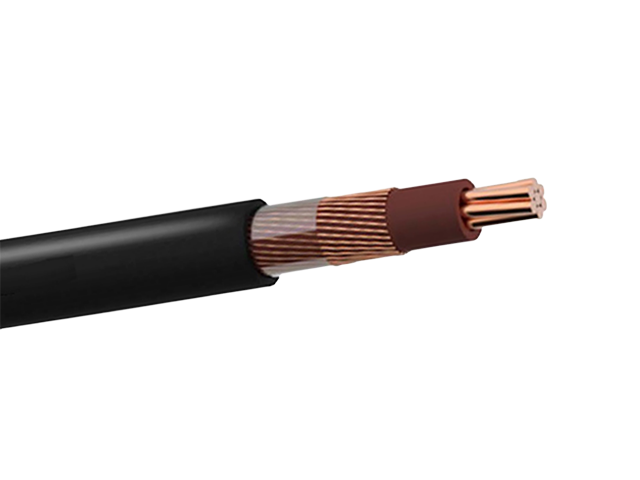

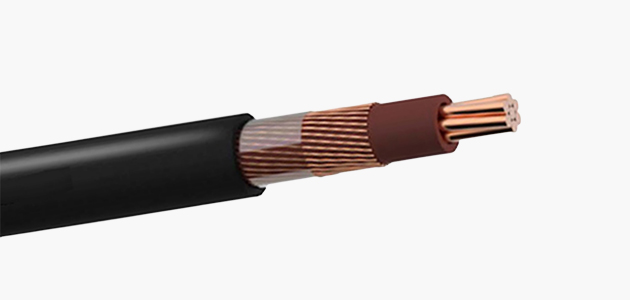

CONCENTRIC CABLE
NPC Electric Concentric Cable is designed with a central phase conductor surrounded by an evenly distributed concentric neutral conductor, providing a stable electrical return path and enhanced system safety. The concentric construction ensures uniform current distribution, reduces electromagnetic interference, and improves grounding reliability. High-purity copper or aluminum conductors are combined with durable insulation materials that offer excellent resistance to moisture, heat, and environmental stress. This cable structure is widely used in low-voltage power distribution, where mechanical protection and electrical stability are critical. The concentric neutral layer also enhances fault current handling and minimizes voltage drop during operation. With strong mechanical strength, long service life, and consistent electrical performance, concentric cables are suitable for underground installation and utility networks requiring dependable power delivery.
Construction
Technical Specifications
Quality Control
Application
Construction
Concentric Cable
Standard
ASTM B 8,ASTM B 3, ASTM 193,ASTM B 800, ASTM B 801,NEC Numeral 310, UL 44, UL 854, UL 1581
Conductor
Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000
Insulation
XLPE or PVC or customized
Neutral Conductor
Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000
Binder Tape
Polyester Tape or customized
Outer Sheath
XLPE or PVC or customized
Technical Specifications
CONCENTRIC CABLE

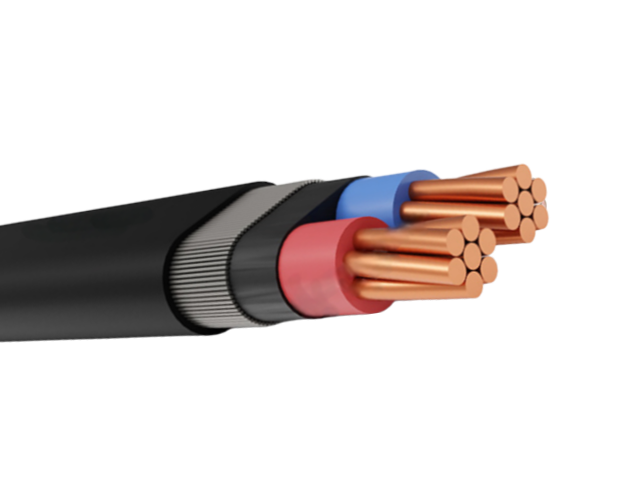

Circular Type Concentric Cables

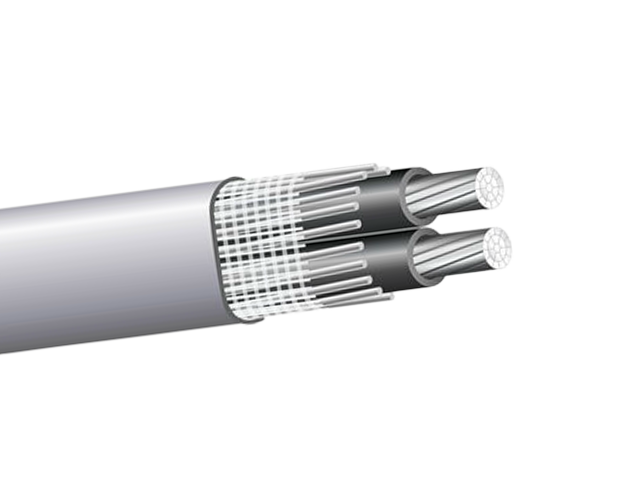

Flat Type Concentric Cables
| Size | Phase Conductor | XLPE Insulation | Neutral Conductor | XLPE Sheath | Approx.Weight | |||||
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | CU | AL | |
| AWG | No./mm | mm | mm | mm | No./mm | mm | mm | mm | kg/km | kg/km |
| 2x8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 25/0.65 | 7.27 | 1.14 | 9.84 | 202 | 97 |
| 2x10 | 7/0.98 | 2.94 | 1.14 | 5.22 | 25/0.52 | 6.26 | 1.14 | 8.83 | 141 | 74 |
| Size | Phase Conductor | XLPE Insulation | Inner Sheath |
Neutral Conductor |
XLPE Sheath | Approx.Weight | ||||
| Structure | O.D | Thickness | O.D | Thickness | Structure | Thickness | O.D | CU | AL | |
| AWG | No./mm | mm | mm | mm | mm | No./mm | mm | mm | kg/km | kg/km |
| 3x8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 0.7 | 65/0.41 | 1.14 | 16.59x10.62 | 396 | 227 |
| 3x6 | 7/1.55 | 4.65 | 1.14 | 6.93 | 0.7 | 65/0.52 | 1.14 | 18.73x11.80 | 551 | 297 |
| 3x4 | 7/1.96 | 4.98 | 1.14 | 8.16 | 0.7 | 65/0.65 | 1.52 | 22.21x14.05 | 830 | 427 |
| 3x2 | 7/2.47 | 7.41 | 1.14 | 9.69 | 0.7 | 65/0.83 | 1.52 | 25.63x15.94 | 1233 | 587 |
Quality Control
CONCENTRIC CABLE
Raw Material Test
Raw Material Test ensures all incoming materials meet strict quality requirements before manufacturing. Conductors are tested for purity, electrical conductivity, tensile strength, and dimensional accuracy. Insulation materials are evaluated for heat resistance, aging performance, mechanical strength, and uniformity. Only materials that pass chemical, physical, and electrical inspections are approved for production, ensuring consistent quality and stable electrical performance of the concentric cable.
Process inspection
Process Inspection monitors critical parameters throughout cable manufacturing. Conductor assembly is inspected for correct stranding and alignment, while insulation extrusion is checked for thickness consistency and concentricity. The formation of the concentric neutral conductor is carefully controlled to ensure uniform distribution and secure bonding. Ongoing inspections and in-process tests help maintain product reliability and prevent deviations from design specifications.
Finished Product
Finished Product Testing verifies the overall electrical, mechanical, and safety performance of the concentric cable. Tests include conductor resistance measurement, insulation resistance, voltage withstand testing, and continuity of the concentric neutral layer. Mechanical tests such as bending, tensile strength, and dimensional verification are also performed. Visual inspection confirms surface quality and marking accuracy. Only cables that fully comply with technical specifications and relevant standards are approved for delivery.
Application
Concentric cables are widely used in low-voltage underground power distribution, utility service connections, residential networks, and commercial electrical systems where reliable grounding and stable power transmission are required.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions

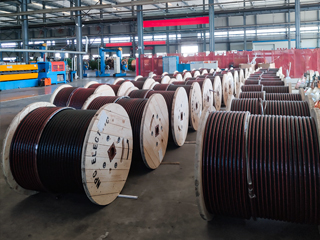

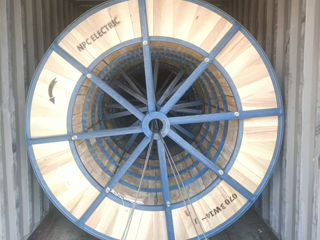

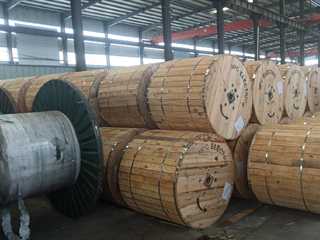

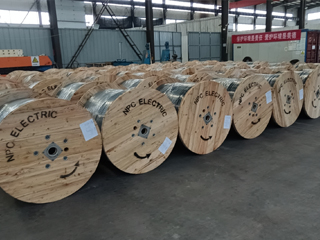

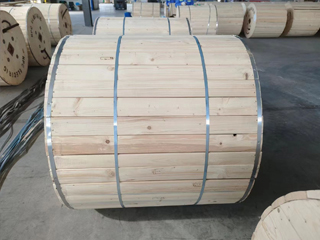

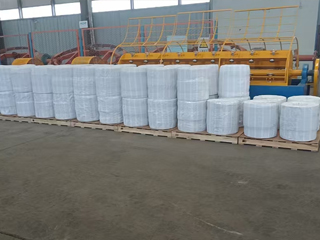

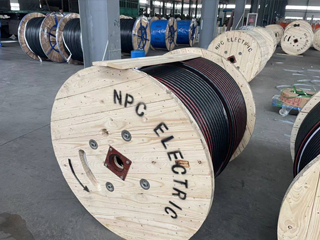

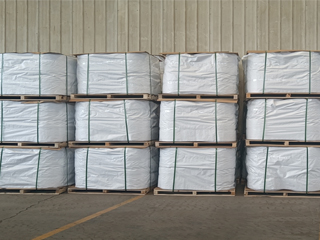

Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
