H05VV-F
H05VV-F wires from NPC Electric are flexible PVC insulated and sheathed cables designed for light-duty power connections in household and commercial electrical equipment. Featuring finely stranded copper conductors, these wires provide excellent flexibility, making them easy to install and suitable for applications involving frequent movement.
The double PVC insulation structure offers reliable electrical protection, good mechanical strength, and resistance to abrasion, ensuring safe operation under normal indoor conditions. Manufactured in accordance with harmonized standards, NPC Electric H05VV-F wires deliver stable conductivity, consistent insulation thickness, and dependable performance. They are widely used where flexibility, safety, and ease of handling are essential, making them a practical choice for appliances, extension cords, and portable equipment.
- Standard EN 50525-2-11
Construction
Technical Specifications
Quality Control
Application

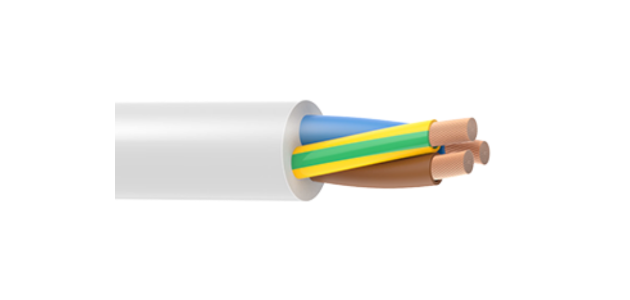

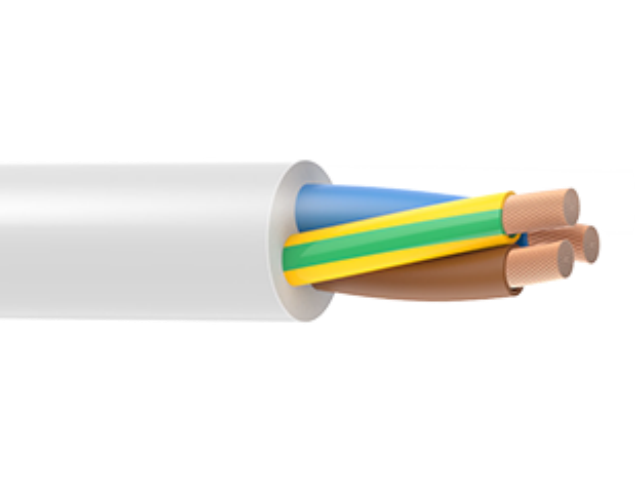

Construction
H05VV-F Building Wires IEC Standard
Conductor
Class 5 flexible copper
Insulation
Polyvinyl Chloride (PVC)
Outer Sheath
Polyvinyl Chloride (PVC)
Characteristic
Maximum conductor operating temperature: +60°C
Temperature range:
flexing -5 °C to +70 °C
fixed installation -40 °C to +70 °C
Nominal voltage:Uo/U: 300/ 500 V
Test voltage: 2000V
Minimum bending radius:6xD(cable diameter)
Temperature range:
flexing -5 °C to +70 °C
fixed installation -40 °C to +70 °C
Nominal voltage:Uo/U: 300/ 500 V
Test voltage: 2000V
Minimum bending radius:6xD(cable diameter)
Technical Specifications
H05VV-F
H05VV-F Building Wires
|
Nominal Cross Section Area |
Number of wires /Diameter of wires |
Approx. Diameter of Conductor |
Thickness of Insulation |
Thickness of Sheath |
Approx. Overall Diameter |
Approx. Weight of cable |
Max. Conductor Resistance at 20°C |
Min. Insulation Resistance at 70°C |
| mm² | No./mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ.km |
| 2 x 0.75 | 24/0.2 | 1.12 | 0.6 | 0.8 | 6.24 | 54 | 26.0 | 0.011 |
| 2 x 1.0 | 34/0.2 | 1.29 | 0.6 | 0.8 | 6.58 | 62 | 19.5 | 0.010 |
| 2 x 1.5 | 30/0.25 | 1.57 | 0.7 | 0.8 | 7.54 | 84 | 13.3 | 0.010 |
| 2 x 2.5 | 49/0.25 | 2.02 | 0.8 | 1.0 | 9.24 | 130 | 7.98 | 0.0095 |
| 2 x 4.0 | 56/0.3 | 2.9 | 0.8 | 1.1 | 11.20 | 193 | 4.95 | 0.0078 |
| 3 x 0.75 | 24/0.2 | 1.12 | 0.6 | 0.8 | 6.60 | 65 | 26.0 | 0.0110 |
| 3 x 1.0 | 34/0.2 | 1.29 | 0.6 | 0.8 | 6.96 | 76 | 19.5 | 0.0100 |
| 3 x 1.5 | 30/0.25 | 1.57 | 0.7 | 0.9 | 8.20 | 106 | 13.3 | 0.0100 |
| 3 x 2.5 | 49/0.25 | 2.02 | 0.8 | 1.1 | 10.00 | 163 | 7.98 | 0.0095 |
| 3 x 4.0 | 56/0.3 | 2.9 | 0.8 | 1.2 | 12.10 | 242 | 4.95 | 0.0078 |
| 4 x 0.75 | 24/0.2 | 1.12 | 0.6 | 0.8 | 7.20 | 78 | 26.0 | 0.0110 |
| 4 x 1.0 | 34/0.2 | 1.29 | 0.6 | 0.9 | 7.81 | 95 | 19.5 | 0.0100 |
| 4 x 1.5 | 30/0.25 | 1.57 | 0.7 | 1.0 | 9.17 | 134 | 13.3 | 0.0100 |
| 4 x 2.5 | 49/0.25 | 2.02 | 0.8 | 1.1 | 10.94 | 199 | 7.98 | 0.0095 |
| 4 x 4.0 | 56/0.3 | 2.9 | 0.8 | 1.2 | 13.26 | 297 | 4.95 | 0.0078 |
| 5 x 0.75 | 24/0.2 | 1.12 | 0.6 | 0.9 | 8.06 | 96 | 26.0 | 0.0110 |
| 5 x 1.0 | 34/0.2 | 1.29 | 0.6 | 0.9 | 8.52 | 113 | 19.5 | 0.0100 |
| 5 x 1.5 | 30/0.25 | 1.57 | 0.7 | 1.1 | 10.22 | 163 | 13.3 | 0.0100 |
| 5 x 2.5 | 49/0.25 | 2.02 | 0.8 | 1.2 | 12.17 | 242 | 7.98 | 0.0095 |
| 5 x 4.0 | 56/0.3 | 2.9 | 0.8 | 1.4 | 14.95 | 367 | 4.95 | 0.0078 |
Quality Control
H05VV-F
Raw Material Test
NPC Electric conducts comprehensive Raw Material Tests for all H05VV-F wires prior to production. Copper conductors are inspected for electrical conductivity, mechanical strength, dimensional accuracy, and surface cleanliness. PVC insulation and sheath compounds are tested for heat resistance, tensile strength, elongation, and aging performance. Only materials that pass all required inspections are released for manufacturing, ensuring consistent electrical safety and long-term reliability of NPC Electric H05VV-F wires.
Process inspection
During production, Process Inspection closely monitors each manufacturing step of NPC Electric H05VV-F wires. Conductor stranding processes are checked to ensure correct flexibility and uniform construction. Insulation and sheath extrusion are continuously measured for thickness consistency, concentricity, and surface quality. Regular in-process inspections help maintain stable production quality and ensure compliance with harmonized standards.
Finished Product
Finished Product Testing verifies the overall quality of NPC Electric H05VV-F wires. Electrical tests include resistance measurement, insulation integrity checks, and voltage withstand testing. Mechanical evaluations assess bending performance, flexibility, and sheath strength. Final visual inspection confirms marking accuracy and workmanship. Only products that fully meet technical specifications are approved for shipment.
Application
H05VV-F wires are suitable for indoor connections of household appliances, office equipment, power strips, lighting systems, and portable electrical devices requiring flexible cables.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
