FR-N20XA8E-AR 12/20kV Cable Gen to NF C 33-226 - AL/XLPE/MDPE
The NF C 33-226 AL-XLPE-MDPE 12/20(24)kV Cable is a high-quality medium voltage power cable designed for safe and efficient fixed installations. Constructed with a Class 2 stranded aluminum conductor, cross-linked polyethylene (XLPE) insulation, and a medium-density polyethylene (MDPE) outer sheath, it offers outstanding electrical performance, mechanical strength, and long service life.
Complying with NF C 33-226, IEC 60502-2, and EN 60228 standards, this cable is ideal for industrial facilities, municipal networks, and commercial power supply systems. It provides superior resistance to water (AD7) and UV radiation (ISO 4892), while being halogen-free (IEC/EN 60754-1) for enhanced environmental and operational safety.
With a rated voltage of 12/20 (24)kV and a maximum conductor operating temperature of 90°C, the AL-XLPE-MDPE construction ensures reliable, stable, and efficient power transmission in medium-voltage distribution networks.
- Voltage Rating(Uo/U) 12/20 (24)kV
- Maximum operating temp 90°C
- Initial temp at S.C.C 80°C
- Maximum temp during S.C 250°C
- Minimum Bending Radius 20 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

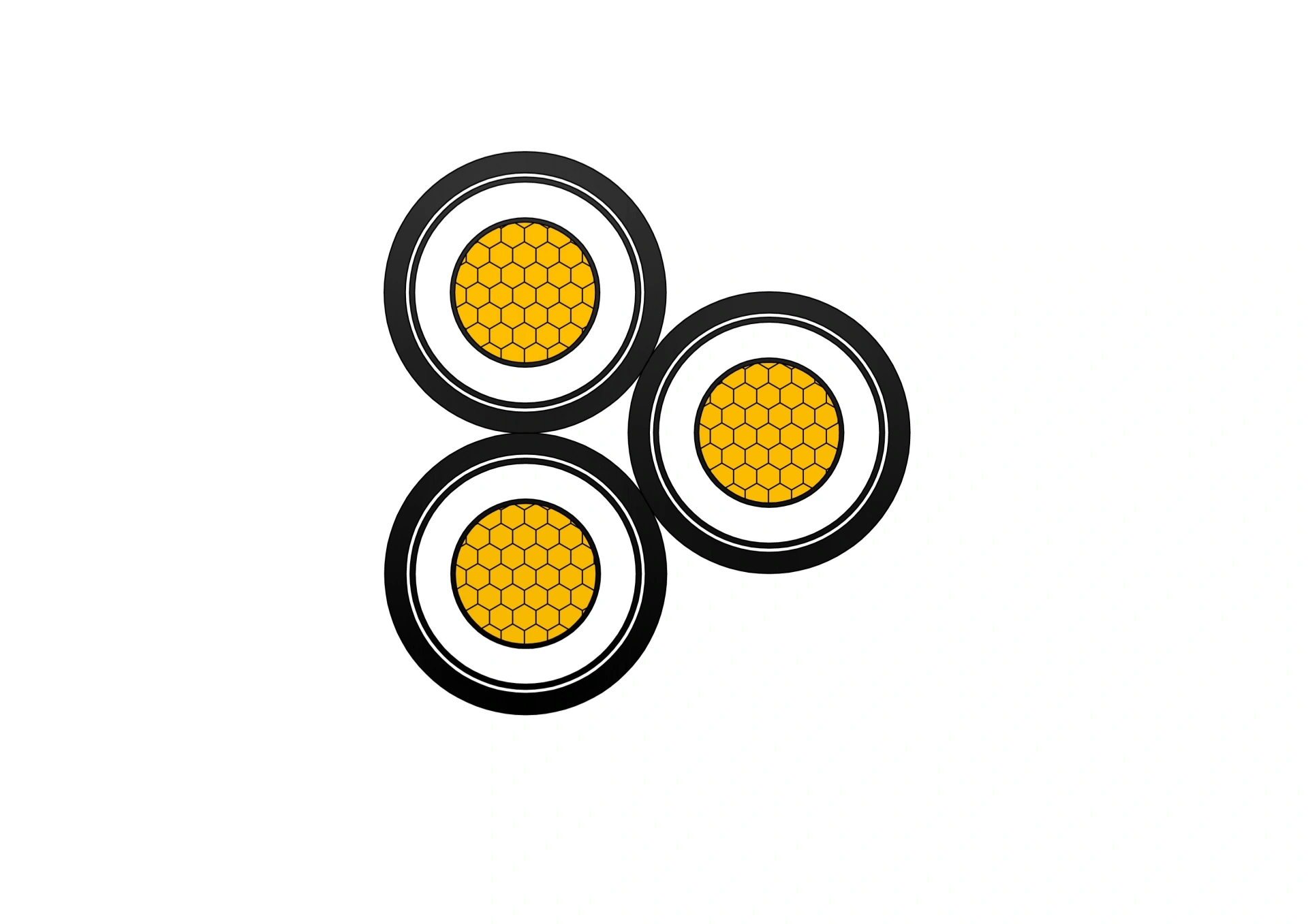

FR-N20XA8E-AR 12/20kV Cable Constrution
Conductor
Class 2 stranded Aluminium
Conductor Screen
Extruded Inner Semi Conductor (Bonded Type)
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Extruded Inner Semi Conductor (Strippable Type)
Waterblocking
Semi Conductive Longitudinal Waterblocking Tape
Aluminium Tape
Applied Longitudinally
Sheath
MDPE (Medium Density Polyethylene)
Sheath Colour
Black
Manufacturer Standard
NF C 33-226, IEC 60502-2, EN 60228
Halogen free
IEC/EN 60754-1
Water resistant
AD7
UV resistant
ISO 4892
Technical Specifications
FR-N20XA8E-AR 12/20kV Cable Gen to NF C 33-226 - AL/XLPE/MDPE
FR-N20XA8E-AR 12/20kV Cable Data Sheet
|
No. of Cores |
Nominal Corss Sectional Area |
Nominal Screen Cross Sectional Area |
Nominal Conductor Screen Thickness |
Nominal Insulation Screen Thickness |
Nominal Sheath Thickness |
Nominal Weight |
| mm² | mm² | mm | mm | mm | kg/km | |
| 1 | 50 | 15 | 0.6 | 0.7 | 1.7 | 614 |
| 1 | 70 | 17 | 0.6 | 0.7 | 1.8 | 731 |
| 1 | 95 | 18 | 0.6 | 0.7 | 1.8 | 833 |
| 1 | 120 | 19 | 0.6 | 0.7 | 1.9 | 953 |
| 1 | 150 | 20 | 0.6 | 0.7 | 1.9 | 1090 |
| 1 | 185 | 21 | 0.6 | 0.7 | 2 | 1212 |
| 1 | 240 | 22 | 0.6 | 0.7 | 2.1 | 1440 |
| 1 | 300 | 24 | 0.6 | 0.7 | 2.1 | 1674 |
| 1 | 400 | 26 | 0.6 | 0.7 | 2.3 | 2027 |
| 1 | 500 | 28 | 0.6 | 0.7 | 2.4 | 2411 |
| 1 | 630 | 31 | 0.7 | 0.7 | 2.5 | 3010 |
| 1 | 800 | 34 | 0.7 | 0.7 | 2.6 | 3718 |
Quality Control
FR-N20XA8E-AR 12/20kV Cable Gen to NF C 33-226 - AL/XLPE/MDPE
Raw Material Test
Raw Material Test for FR-N20XA8E-AR Triplex 12/20kV Cable ensures NF C 33-226 compliance and MV reliability. The rigorous process includes: Supplier Certification Review: Verify stranded aluminium conductors meet NF C 33-226/IEC 60228 class 2 for purity, stranding, and conductivity; XLPE insulation compound certified to IEC 60502-2 for electrical/thermal properties; MDPE sheath compound certified for mechanical and environmental resistance. Conductor Analysis: Test aluminium for tensile strength (>80 MPa), elongation (>10–15%), conductivity (≥61% IACS), and surface quality (no oxidation/cracks). Semi-Conductive Compound Testing: Semi-conductive conductor and insulation screens evaluated for resistivity (≤1000 Ω·m), adhesion, thermal stability, and compatibility to ensure uniform electric field distribution.
Process inspection
Process Inspection during manufacturing of FR-N20XA8E-AR Triplex 12/20kV Cable maintains triplex precision and MV integrity. Steps include: Conductor Stranding: Monitor class 2 stranding for uniform lay length, compactness, and no loose strands. Triple Extrusion: Apply semi-conductive conductor screen, XLPE insulation, and semi-conductive insulation screen in continuous triple extrusion; inline diameter scanners, eccentricity monitors, and spark testers detect voids/defects. Screening Application: Apply copper wire screen with precise coverage for grounding.Triplex Assembly: Twist three insulated cores with controlled lay length for triplex configuration. Outer Sheath Extrusion: Extrude MDPE sheath; real-time checks on thickness, surface finish, adhesion, and sheath integrity.
Finished Product
Finished Product Test confirms the FR-N20XA8E-AR Triplex 12/20kV Cable meets NF C 33-226 standards before shipment. The procedure includes: Visual & Dimensional Inspection: Examine full length for defects, uniformity, markings, and measure outer diameter/weight per meter. Electrical Tests: DC resistance, insulation resistance (>1000 MΩ·km), high-voltage withstand (e.g., 42kV/5 min or per NF C 33-226), partial discharge (<5 pC), and screen continuity. Mechanical Evaluation: Bending radius (15–20× OD), tensile strength, crush resistance, and impact tests. Sheath & Insulation Performance: Thermal aging (135°C/168h), hot set test, environmental stress cracking resistance (ESCR), UV aging, and moisture resistance verified. Thermal & Short-Circuit Validation: Confirm ampacity ratings and short-circuit withstand at 250°C for 1 s.
Application
The FR-N20XA8E-AR Triplex 12/20kV Cable is perfect for 12/20 kV overhead aerial bundled lines, underground MV distribution, rural/urban electrification, substation feeders, renewable energy connections, and harsh environment installations requiring NF C 33-226 compliant, XLPE-insulated, MDPE-sheathed triplex cable with high mechanical and electrical performance.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
