H05V-U H05V-R H05V-K
H05V-K cable is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications. It can be used in and at electronic appliances for measuring, regulating and controlling. The cables are also ideal for laying in pipes, surface wiring and conduit installations. Specifications according to HD 516 apply for respective specific applications.
H05V-U cable is intended for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
H05V-R is preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.Found in electronic and electrical equipment and switch gear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.
- Standard DIN VDE 0281-3, BS 6004, HD 21.3
- Maximum conductor operating temperature +70°C
- Lowest ambient temperature for fixed installation -30°C
- Lowest installation temperature -5°C
- Nominal voltage Uo/U: 300/ 500 V
- Test voltage 2000V
Construction
Technical Specifications
Quality Control
Application

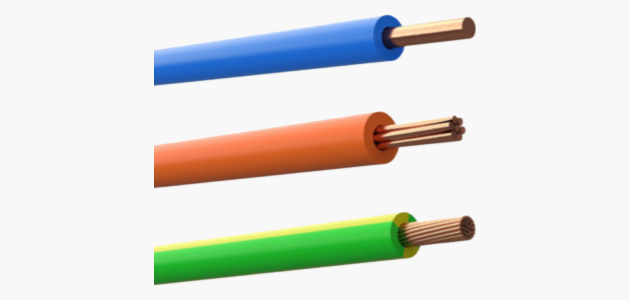

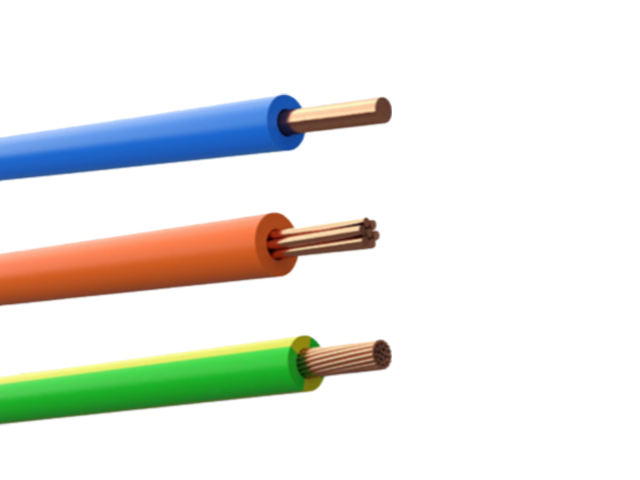

Construction
H05V-U H05V-R H05V-K
Conductor
Annealed copper conductor acc. to EN 60228:
Class 1 solid -H05V-U
Class 2 stranded H05V-R
Class 5 flexible H05V-K
Class 1 solid -H05V-U
Class 2 stranded H05V-R
Class 5 flexible H05V-K
Insulation
PVC compound type TI 1
Color of insulation
Blue, black, brown, green/yellow or other colors
Technical Specifications
H05V-U H05V-R H05V-K
H05V-U
H05V-R
H05V-K
Minimum bending radius
| Nominal Cross Section Area |
Number of wires /Diameter of wires |
Approx. Diameter of Conductor |
Thickness of Insulation |
Approx. Overall Diameter |
Approx. Weight of cable |
Max. Conductor Resistance at 20°C |
Min. Insulation Resistance at 70°C |
| mm2 | No./mm | mm | mm | mm | kg/km | Ω/km | MΩ.km |
| 0.5 | 1/0.80 | 0.80 | 0.6 | 2.1 | 8.9 | 36.0 | 0.014 |
| 0.75 | 1/0.97 | 0.97 | 0.6 | 2.2 | 11.5 | 24.5 | 0.013 |
| 1 | 1/1.13 | 1.13 | 0.6 | 2.4 | 14.3 | 18.1 | 0.011 |
| Nominal Cross Section Area |
Number of wires /Diameter of wires |
Approx. Diameter of Conductor |
Thickness of Insulation |
Approx. Overall Diameter |
Approx. Weight of cable |
Max. Conductor Resistance at 20°C |
Min. Insulation Resistance at 70°C |
| mm2 | No./mm | mm | mm | mm | kg/km | Ω/km | MΩ.km |
| 0.5 | 7/0.30 | 0.90 | 0.6 | 2.1 | 8.9 | 36.0 | 0.014 |
| 0.75 | 7/0.37 | 1.11 | 0.6 | 2.3 | 11.5 | 24.5 | 0.012 |
| 1 | 7/0.43 | 1.29 | 0.6 | 2.5 | 14.4 | 18.1 | 0.011 |
| Nominal Cross Section Area |
Number of wires /Diameter of wires |
Approx. Diameter of Conductor |
Thickness of Insulation |
Approx. Overall Diameter |
Approx. Weight of cable |
Max. Conductor Resistance at 20°C |
Min. Insulation Resistance at 70°C |
| mm2 | No./mm | mm | mm | mm | kg/km | Ω/km | MΩ.km |
| 0.5 | 16/0.20 | 0.91 | 0.6 | 2.2 | 9.2 | 39.0 | 0.013 |
| 0.75 | 24/0.20 | 1.12 | 0.6 | 2.4 | 12.1 | 26.0 | 0.011 |
| 1 | 32/0.20 | 1.29 | 0.6 | 2.6 | 14.9 | 19.5 | 0.010 |
| Minimum bending radius: | For cable diameter D (mm) | |||
| D≤8 | 8<D≤12 | 12<D≤20 | D>20 | |
| Normal use | 4 D | 5 D | 6 D | 6 D |
| Careful bending at termination | 2 D | 3 D | 4 D | 4 D |
Quality Control
H05V-U H05V-R H05V-K

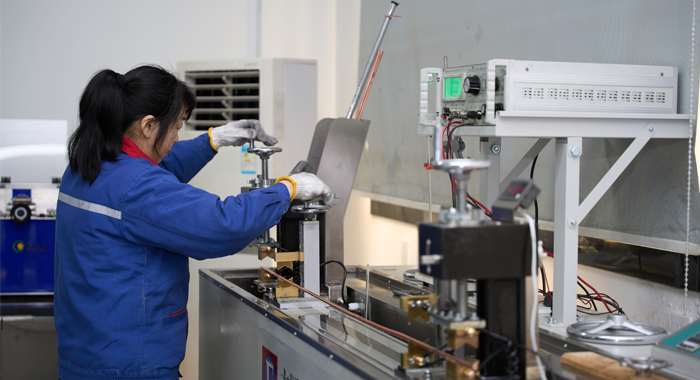

Raw Material Test
At NPC Electric, Raw Material Test for H05V-U, H05V-R, and H05V-K cables ensures consistent quality from the start. Copper conductors are tested for purity, electrical conductivity, tensile strength, and dimensional accuracy. PVC insulation compounds undergo evaluation for thermal stability, mechanical strength, aging resistance, and uniformity. All incoming materials are verified against harmonized standard requirements before production. This strict material control guarantees stable electrical performance, safe insulation properties, and long-term reliability of NPC Electric H05V series wires.

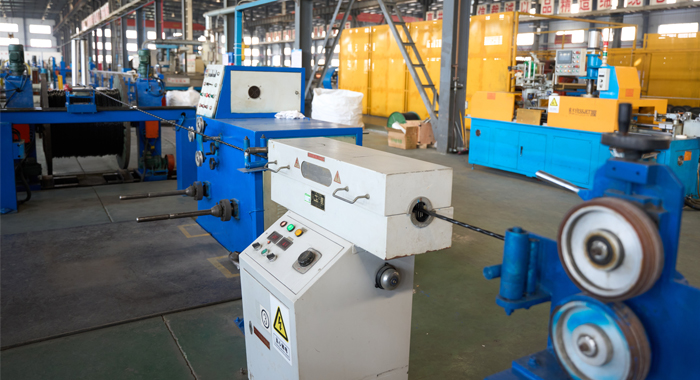

Process inspection
Process Inspection at NPC Electric closely monitors each manufacturing stage of H05V-U, H05V-R, and H05V-K cables. Conductor drawing and stranding processes are inspected for uniform structure and the correct conductor class. Insulation extrusion is checked for thickness consistency, concentricity, and surface quality. Continuous in-process inspections ensure compliance with design specifications and harmonized standards, preventing defects and maintaining consistent quality throughout the production process.

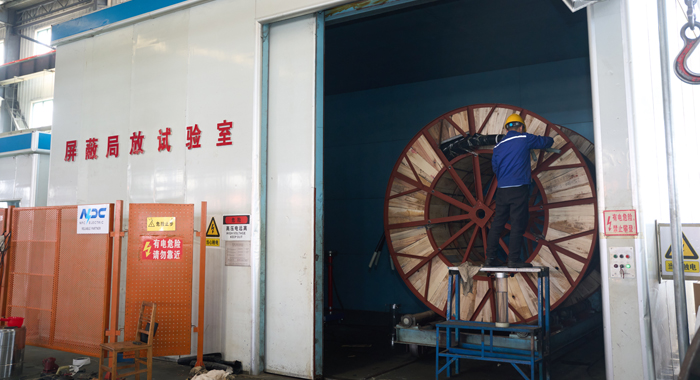

Finished Product
Finished Product Tests at NPC Electric confirm the safety and performance of H05V-U, H05V-R, and H05V-K cables. Electrical tests include resistance measurement, insulation resistance, and voltage withstand tests. Mechanical checks verify flexibility, bending performance, and dimensional compliance. Final visual inspection confirms marking clarity and overall workmanship before shipment.
Application
NPC Electric H05V-U, H05V-R, and H05V-K cables are widely applied in internal wiring for control cabinets, electrical appliances, lighting circuits, and fixed or flexible building installations.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
