A2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable
A2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable is a high-performance single-core aluminum conductor cable designed for medium-to-high voltage power transmission. It features XLPE insulation, extruded semi-conductive conductor and insulation screens, and semi-conductive water-swellable tapes for longitudinal water blocking. A longitudinally applied aluminium tape moisture barrier coated with PE copolymer ensures outstanding moisture resistance and mechanical protection. The HDPE oversheath provides superior abrasion, chemical, and environmental resistance, making it suitable for direct burial, underwater, outdoor, indoor, and duct installations in power stations, industrial sites, and distribution networks. Complying with IEC 60840 standards, it ensures long-term, reliable electrical performance in challenging environments.
- Voltage Rating(Uo/U)(Um) 26/45 kV (52kV)
Construction
Technical Specifications
Quality Control
Application
Construction

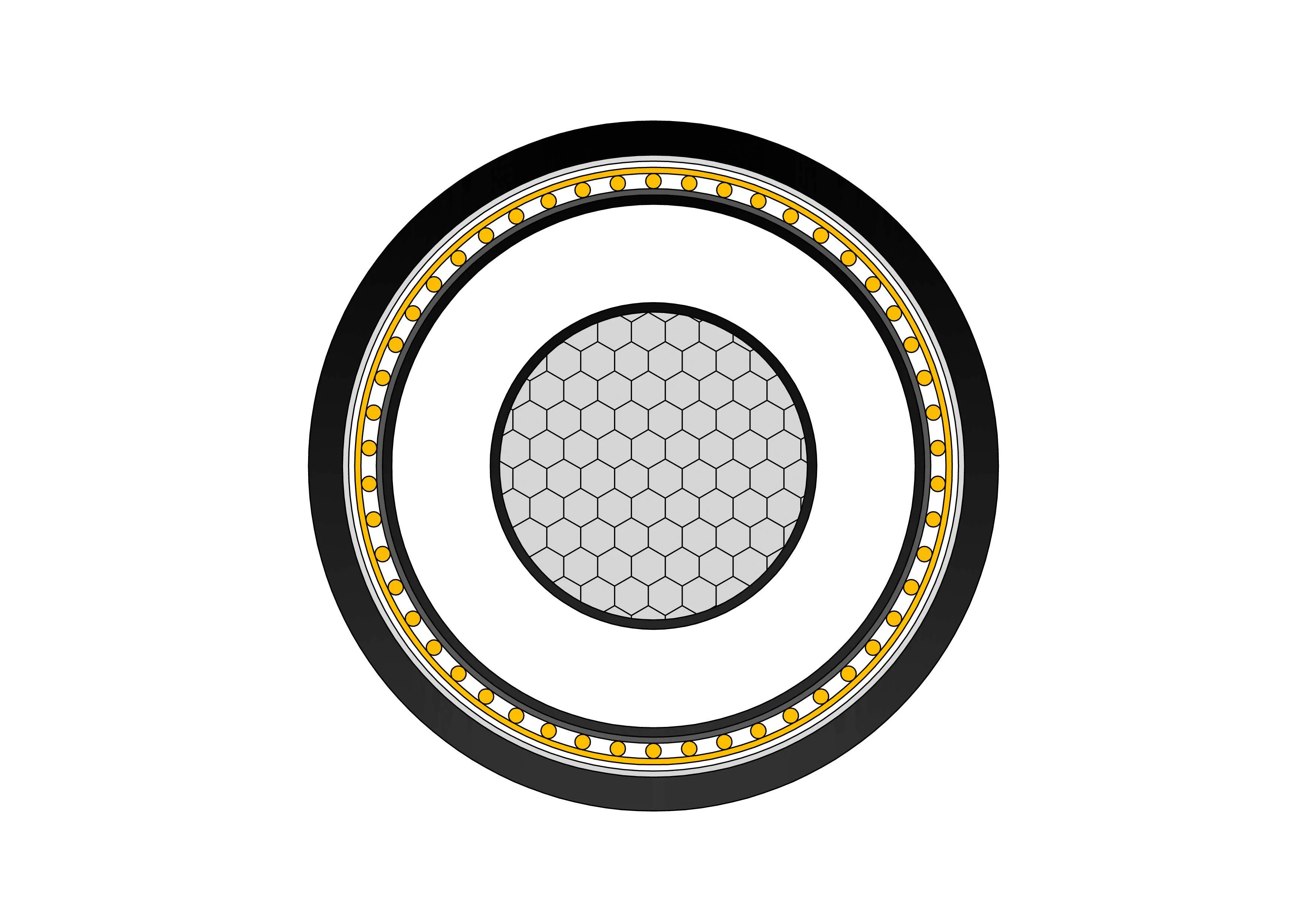

A2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable Constrution
Conductor
Aluminium conductor (optional watertightness – WTC)
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Semi-conductive screen extruded on the phase conductor
Insulation Screen
Semi-conductive screen extruded on insulation
Wrapping
Semi-conductive water swelling tape
Metallic Screen
Copper wires and equalising tape
Sheath
HDPE (High-Density Polyethylene)Optional —semi-conductive layer
Sheath Colour
Black
Manufacturer Standard
IEC 60840
Tape
Longitudinally applied aluminium tape coated with PE copolymer
Application
A2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable is used for distribution networks, as well as for connecting generation units and plant or process facilities. It can be installed directly in the ground, in water, outdoors, indoors, or in cable ducts for power stations, industrial sites, and distribution systems. Its water-blocking tape effectively prevents water propagation inside the cable, ensuring reliable long-term performance.
Technical Specifications
A2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable
A2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable
|
No. Of Cores |
NOMINAL CROSS SECTIONAL AREA mm² |
INSULATION mm |
METALLIC SCREEN |
NOMINAL WEIGHT kg/km |
MAXIMUM PULLING FORCE kN |
||
| Nominal thickness |
Nominal diameter over |
Nominal cross section mm² |
Nominal diameter over mm |
||||
| 1 | 95RM | 9.0 | 30.5 | 35 | 34.3 | 1890 | 3.3 |
| 1 | 120RM | 9.0 | 31.7 | 35 | 35.5 | 1010 | 4.2 |
| 1 | 150RM | 9.0 | 33.3 | 35 | 37.1 | 1940 | 5.3 |
| 1 | 185RM | 9.0 | 35.0 | 35 | 38.8 | 2110 | 6.5 |
| 1 | 240RM | 9.0 | 37.1 | 35 | 40.9 | 2350 | 8.4 |
| 1 | 300RM | 9.0 | 39.2 | 35 | 43.0 | 2590 | 10.5 |
| 1 | 400RM | 9.0 | 42.5 | 35 | 46.7 | 3040 | 14.0 |
| 1 | 500RM | 9.0 | 45.3 | 35 | 49.5 | 3470 | 17.5 |
| 1 | 630RM | 9.0 | 49.1 | 35 | 53.3 | 4030 | 22.1 |
| 1 | 800RM | 9.0 | 52.8 | 35 | 57.0 | 4650 | 28.0 |
| 1 | 1000RM | 9.0 | 58.2 | 35 | 62.6 | 5570 | 35.0 |
| 1 | 1200RM | 9.0 | 62.7 | 50 | 67.3 | 6380 | 42.0 |
| 1 | 1200RMS | 9.0 | 65.2 | 50 | 69.8 | 6640 | 42.0 |
| 1 | 1400RMS | 9.0 | 67.3 | 50 | 71.9 | 7490 | 49.0 |
| 1 | 1600RMS | 9.0 | 70.7 | 50 | 75.3 | 8270 | 56.0 |
| 1 | 1800RMS | 9.0 | 74.9 | 50 | 79.5 | 9170 | 63.0 |
| 1 | 2000RMS | 9.0 | 76.7 | 50 | 81.3 | 9760 | 70.0 |
| 1 | 2500RMS | 9.0 | 82.2 | 50 | 87.2 | 11270 | 87.5 |
| 1 | 3000RMS | 9.0 | 90.2 | 50 | 95.2 | 13690 | 100.0 |
Quality Control
A2XS(FL)2Y HDPE High Voltage 26/45 (52) kV Power Cable
Raw Material Test
Raw Material Test for 2XS(FL)2Y HDPE 26/45 (52) kV Power Cable prioritizes HV-grade quality and water-blocking. Steps include: Certification Check: Copper conductors and XLPE verified to IEC 60228/IEC 60840 standards. Conductor Testing: Tensile, elongation, conductivity analysis. XLPE Evaluation: Tensile, elongation, dielectric strength, water tree resistance, hot set test. Semi-Conductive & Shielding Checks: Resistivity, adhesion, Cu wire/Al foil coverage/conductivity. Water-Blocking Testing: Swellable tapes/powders for longitudinal sealing efficiency. HDPE Sheath Testing: Tensile, ESCR, UV stability, mechanical properties. Batch Rejection: Non-compliant quarantined. Approved materials ensure the 2XS(FL)2Y HDPE 26/45 (52) kV Power Cable's HV performance and water protection.
Process inspection
Process Inspection for 2XS(FL)2Y HDPE 26/45 (52) kV Power Cable enforces HV precision. The procedure features: Stranding Control: Uniform conductor stranding. Triple Extrusion: Conductor screen, XLPE, insulation screen monitored. Water-Blocking: Longitudinal tapes/powders inserted. Screening: Cu wire + Al foil applied precisely. Sheath Extrusion: HDPE sheath with thickness/adhesion checks. Correction: Immediate fixes. This guarantees the 2XS(FL)2Y HDPE 26/45 (52) kV Power Cable excels in HV transmission with water-blocking.
Finished Product
Finished Product Test validates the 2XS(FL)2Y HDPE 26/45 (52) kV Power Cable for deployment. Steps include: Inspection: Visual/dimensional/marking verification. Electrical: Resistance, insulation, withstand (95kV/1h), partial discharge. Water-Blocking: Longitudinal penetration test. Mechanical: Bending, tensile, crush resistance. Performance: Thermal aging, water penetration, UV/ESCR checks. Release: Only passing 2XS(FL)2Y HDPE 26/45 (52) kV Power Cable approved for reliable HV use.
Application
The 2XS(FL)2Y HDPE 26/45 (52) kV Power Cable is suited for 26/45 kV underground transmission lines, river/lake crossings, offshore wind farm connections, direct-buried distribution networks, substation interconnections, and wet environment HV installations requiring XLPE-insulated, longitudinally water-blocked cable with high electrical and mechanical performance.
