Coil End Lead Type 4 BS 6195 Cable
The Coil End Lead Type 4 BS 6195 Cable is a premium, highly flexible high-temperature lead wire engineered for demanding coil and transformer applications. It features fine-stranded tinned copper conductors for superior conductivity and corrosion resistance, high-purity silicone rubber insulation providing excellent dielectric strength, exceptional heat resistance (continuous 180°C, short-term 220°C), and outstanding flexibility even in cold conditions. Compliant with BS 6195 Type 4 standard, it offers flame retardancy, ozone resistance, and long-term thermal stability without cracking or hardening. The cable is lightweight, easy to strip, and suitable for tight bending radii in coil winding, motor connections, and transformer lead-outs. The Coil End Lead Type 4 BS 6195 Cable ensures reliable performance in high-heat environments, reducing downtime and enhancing safety in electrical equipment manufacturing and repair.
-
Voltage Rating(Uo/U)
Type 4A: 300/500V
Type 4C: 0.6/1kV
Type 4D: 1.9/3.3kV
Type 4E: 3.8/6.6kV
Type 4F: 6.35/11kV -
Temperature Rating
Fixed: -40°C to +90°C
Flexed: - 30°C to +90°C -
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction

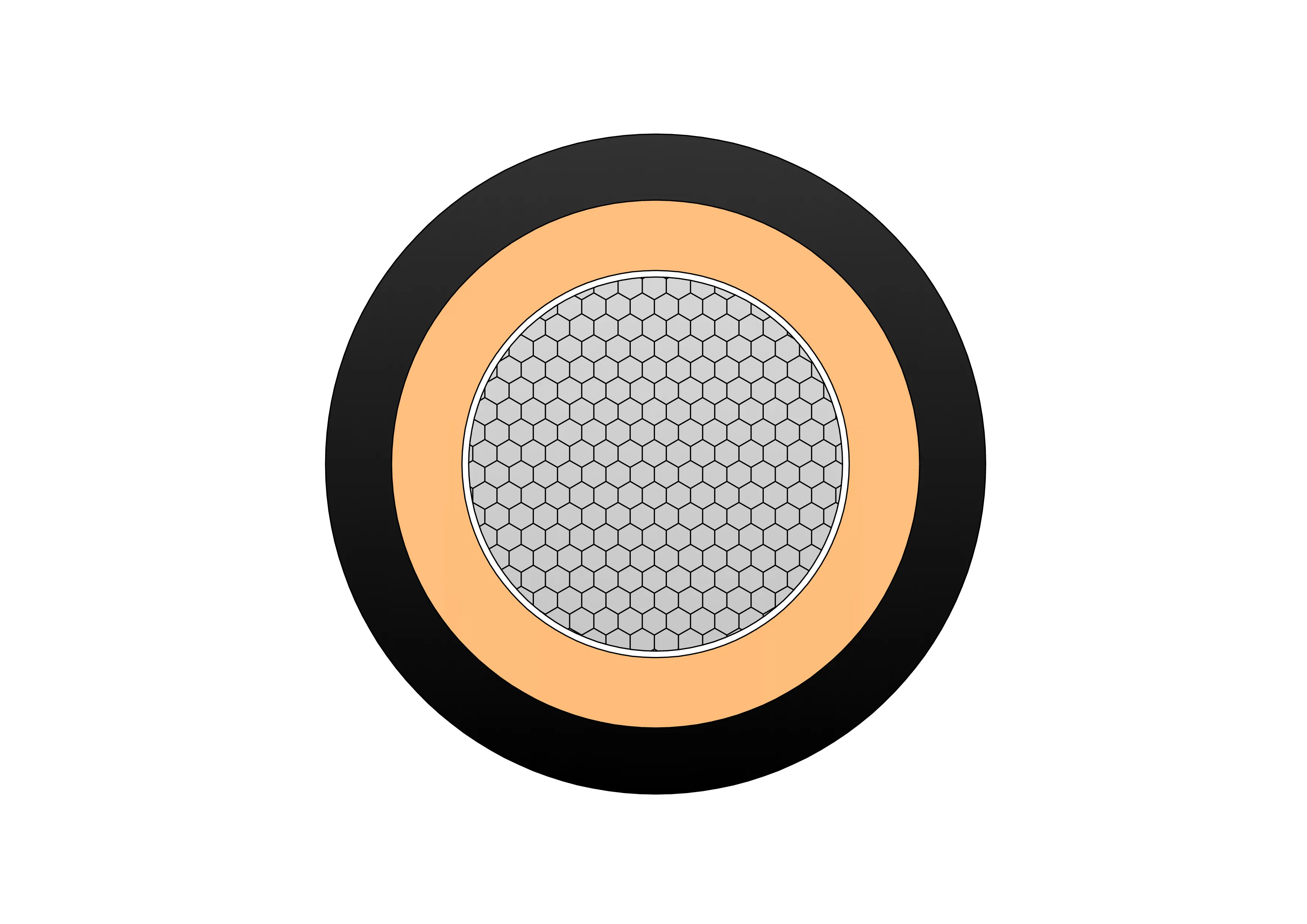

Coil End Lead Type 4 BS 6195 Cable Constrution
Conductor
Class 5 flexible tinned copper conductor
Insulation
4A, 4C: EPR-HOFR (Ethylene Propylene Rubber - Heat and Oil Resistant and Flame Retardant)
4D, 4E, 4F: EPR-HOFR (Ethylene Propylene Rubber - Heat and Oil Resistant and Flame Retardant)
4D, 4E, 4F: EPR-HOFR (Ethylene Propylene Rubber - Heat and Oil Resistant and Flame Retardant)
Outer Sheath
CPE (Chlorinated Polyethylene) rubber compound
Sheath Colour
Black
Manufacturer Standard
BS 6195, EN 60228
Flame retardant
IEC/EN 60332-1-2
Separator
PET (Polyester Tape)
Application
Coil End Lead Cable is primarily used for flexible connections of coil windings in motors, generators, transformers, circuit breakers, and actuators.
Technical Specifications
Coil End Lead Type 4 BS 6195 Cable
Coil End Lead Type 4 BS 6195 Cable Data Sheet
| No of Cores | Voltage Rating KV |
Nominal Cross Sectional Area mm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 1 | 0.3/0.5 | 1.5 | 0.8 | 4 | 29 |
| 1 | 0.3/0.5 | 2.5 | 0.9 | 4.6 | 42 |
| 1 | 0.3/0.5 | 4 | 1 | 5.4 | 61 |
| 1 | 0.3/0.5 | 6 | 1 | 6.5 | 88 |
| 1 | 0.3/0.5 | 10 | 1.2 | 7.9 | 141 |
| 1 | 0.6/1 | 1.5 | 1.4 | 4.3 | 34 |
| 1 | 0.6/1 | 2.5 | 1.4 | 4.8 | 45 |
| 1 | 0.6/1 | 4 | 1.4 | 5.4 | 70 |
| 1 | 0.6/1 | 6 | 1.5 | 6.2 | 97 |
| 1 | 0.6/1 | 10 | 1.5 | 8.5 | 130 |
| 1 | 0.6/1 | 16 | 1.5 | 9.6 | 190 |
| 1 | 0.6/1 | 25 | 1.6 | 11.4 | 290 |
| 1 | 0.6/1 | 35 | 1.6 | 12.8 | 380 |
| 1 | 0.6/1 | 50 | 1.7 | 14.8 | 510 |
| 1 | 0.6/1 | 70 | 1.8 | 17.2 | 750 |
| 1 | 0.6/1 | 95 | 2 | 19.7 | 935 |
| 1 | 0.6/1 | 120 | 2.2 | 21.9 | 1160 |
| 1 | 0.6/1 | 150 | 2.3 | 24.1 | 1450 |
| 1 | 0.6/1 | 185 | 2.4 | 26.3 | 1770 |
| 1 | 0.6/1 | 240 | 2.4 | 28.3 | 2260 |
| 1 | 0.6/1 | 300 | 2.6 | 33 | 2760 |
| 1 | 0.6/1 | 400 | 2.8 | 37.4 | 3880 |
| 1 | 0.6/1 | 500 | 3.2 | 38 | 4650 |
| 1 | 0.6/1 | 630 | 3.3 | 43 | 6220 |
| 1 | 1.9/3.3 | 2.5 | 2.8 | 8.5 | 100 |
| 1 | 1.9/3.3 | 4 | 2.8 | 9.1 | 115 |
| 1 | 1.9/3.3 | 6 | 2.8 | 10.3 | 141 |
| 1 | 1.9/3.3 | 10 | 2.8 | 11.3 | 216 |
| 1 | 1.9/3.3 | 16 | 2.8 | 12.4 | 288 |
| 1 | 1.9/3.3 | 25 | 2.8 | 13.8 | 392 |
| 1 | 1.9/3.3 | 35 | 2.8 | 15.2 | 509 |
| 1 | 1.9/3.3 | 50 | 2.8 | 17.1 | 682 |
| 1 | 1.9/3.3 | 70 | 2.8 | 19.2 | 894 |
Quality Control
Coil End Lead Type 4 BS 6195 Cable
Raw Material Test
Raw Material Test for Coil End Lead Type 4 BS 6195 Cable ensures compliance with BS 6195 Type 4 and high-temperature reliability. The rigorous process includes: Supplier Certification Review: Verify class 5 tinned copper conductors meet BS 6360/EN 60228 for purity (>99.9% Cu), stranding, and tin coating; silicone rubber insulation compound certified to BS 6195 Type 4 for thermal and electrical properties. Conductor Analysis: Test tinned copper for tensile strength (>200 MPa), elongation (>20%), conductivity (≥97% IACS), and tin layer uniformity to ensure corrosion resistance and flexibility. Silicone Insulation Testing: Silicone rubber evaluated for tensile strength (>5 MPa), elongation (>300%), dielectric strength (>20 kV/mm), thermal aging (180°C/168h), hot set test (≤175% elongation after 200°C/15 min), and low smoke/halogen-free properties.
Process inspection
Process Inspection during manufacturing of Coil End Lead Type 4 BS 6195 Cable maintains precision for high-temperature performance. Extrusion Control: Maintain precise temperature and speed to ensure uniform insulation wall thickness and adhesion to conductor. Continuous Monitoring: Track conductor resistance, insulation integrity, overall diameter, and visual surface quality throughout extrusion. Parameter Adjustment & Sampling: Optimize extrusion parameters; frequent samples tested for dielectric strength, thermal stability, and flexibility, deviations corrected immediately. Final Sheath Integrity Check: Verify smooth surface finish and no surface defects for coil winding handling. This ensures the final Coil End Lead Type 4 BS 6195 Cable achieves superior heat resistance (180°C), flexibility, dielectric strength, and consistent quality for transformer and motor lead applications.
Finished Product
Finished Product Test confirms the Coil End Lead Type 4 BS 6195 Cable meets BS 6195 Type 4 standards before shipment. The procedure includes: Thermal Performance Evaluation: Continuous 180°C aging test (168h), short-term 220°C withstand, and hot set test (≤175% elongation after 200°C/15 min). Mechanical Evaluation: Bending radius (4–6× OD), tensile strength, elongation, and flexibility at -60°C tested. Environmental & Flame Validation: Ozone resistance, oil resistance (EN 60811), flame retardancy (IEC 60332-1), and low smoke/toxicity confirmed. Final Approval & Documentation: Generate traceable reports; only 100% compliant Coil End Lead Type 4 BS 6195 Cable labeled and coiled, ensuring heat resistance, flexibility, dielectric reliability, and safe performance in coil winding and high-temperature lead applications.
Application
The Coil End Lead Type 4 BS 6195 Cable is perfect for transformer coil winding, motor lead connections, high-temperature appliance wiring, furnace controls, industrial heating elements, and electrical equipment assembly requiring flexible, heat-resistant, silicone-insulated cable for reliable high-temperature performance.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
