6242Y FLAT TWIN & EARTH

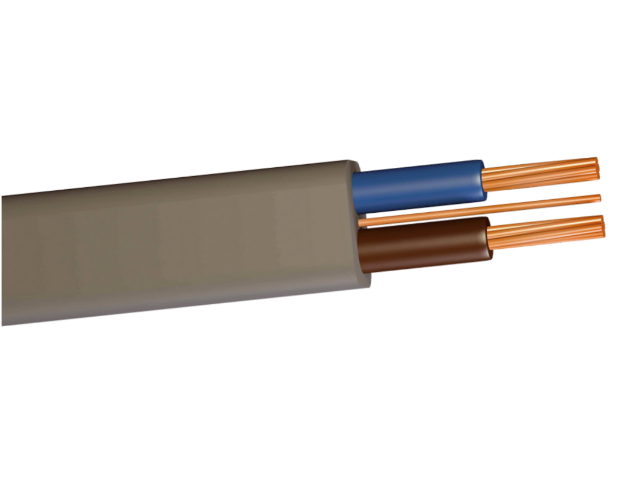

NPC Electric 6242Y Flat Twin & Earth cable is a reliable solution for fixed electrical installations in buildings where safety, neat installation, and consistent performance are required. The cable features two PVC insulated copper conductors and a bare earth conductor, enclosed in a flat PVC sheath that simplifies routing and fixing.
The flat design allows easy concealment in walls and ceilings, while the high-quality materials ensure stable electrical characteristics and resistance to everyday mechanical stress. Manufactured under strict quality control, NPC Electric 6242Y cables provide dependable grounding, smooth insulation finish, and long service life. This product is widely used by electricians for standard low-voltage circuits where proven performance and compliance with installation practices are essential.
- Standard BS 6004
Construction
Technical Specifications
Quality Control
Application

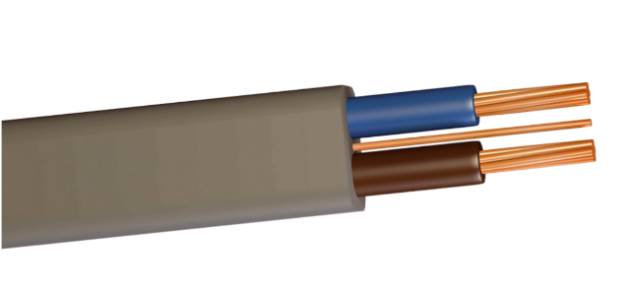

Construction
6242Y FLAT TWIN & EARTH
Phase Conductor
Solid Or Stranded
Insulation
PVC
Earth Conductor
class 1 plain copper, solid, or class 2 plain copper, stranded
Outer Sheath
PVC
Colors For Core Identification
Brown and Blue
Colour Of Sheath
Grey, White, or customized
Operating Temperature
Maximum 70°C, Minimum bending 0 °C
Minimum Bending Radius
Diameter up to 10mm: 3 x overall diameter
Diameter 10mm to 25mm: 4 x overall diameter
Diameter 10mm to 25mm: 4 x overall diameter
Nominal Voltage
Uo/U: 300/ 500 V
Technical Specifications
6242Y FLAT TWIN & EARTH
6242Y FLAT TWIN & EARTH
|
Nominal Cross Section |
Phase Conductor | Insulation | Earth Conductor | Outer Sheath |
Approx. Weight |
|||||
|
No. and Dia. of wire |
Conductor Dia. |
Nominal Thickness |
Insulation Dia. |
No. of wires |
Dia. of wire |
Conductor Dia. |
Nominal Thickness |
Overall Dia. |
||
| mm2 | No./mm | mm | mm | mm | No. | mm | mm | mm | mm | kg/km |
| 2 x 1.0+1.0 | 1/1.13 | 1.13 | 0.6 | 2.33 | 1 | 1.13 | 1.13 | 0.9 | 7.59 x 4.13 | 63.9 |
| 2 x 1.5+1.0 | 1/1.38 | 1.38 | 0.7 | 2.78 | 1 | 1.13 | 1.13 | 0.9 | 8.49 x 4.58 | 80.3 |
| 2 x 2.5+1.5 | 1/1.78 | 1.78 | 0.8 | 3.38 | 1 | 1.38 | 1.38 | 1.0 | 10.14 x 5.38 | 118.5 |
| 2 x 4+1.5 | 7/0.85 | 2.55 | 0.8 | 4.15 | 1 | 1.38 | 1.38 | 1.0 | 11.68 x 6.15 | 157.8 |
| 2 x 6+2.5 | 7/1.04 | 3.12 | 0.8 | 4.72 | 1 | 1.78 | 1.78 | 1.1 | 13.42 x 6.92 | 218.6 |
| 2 x 10+4 | 7/1.35 | 4.05 | 1.0 | 6.05 | 7 | 0.85 | 2.55 | 1.2 | 17.05 x 8.45 | 346.7 |
| 2 x 16+6 | 7/1.70 | 5.10 | 1.0 | 7.10 | 7 | 1.04 | 3.12 | 1.3 | 19.92 x 9.70 | 501.5 |
Quality Control
6242Y FLAT TWIN & EARTH
6242Y FLAT TWIN & EARTH Raw Material Test
NPC Electric performs strict Raw Material Tests for all 6242Y Flat Twin & Earth cables before production. Copper conductors are inspected for conductivity, mechanical strength, dimensional tolerance, and surface cleanliness. PVC insulation and sheath materials are tested for thermal stability, tensile strength, elongation, and aging resistance. The earth conductor is checked to ensure reliable grounding performance. Only qualified materials that meet internal quality standards are approved for use, ensuring consistent safety and electrical reliability of NPC Electric 6242Y cables.
Process inspection
During manufacturing, NPC Electric applies comprehensive Process Inspection controls for 6242Y Flat Twin & Earth cables. Conductor placement and spacing are carefully monitored, while insulation extrusion is checked for thickness accuracy and uniform coverage. The flat sheathing process is inspected to maintain consistent shape and structural integrity. Step-by-step inspections and in-process measurements help ensure stable production quality and compliance with technical requirements.
Finished Product
Finished Product Testing verifies the overall quality of NPC Electric 6242Y Flat Twin & Earth cables. Electrical tests include resistance measurement, insulation integrity, and voltage withstand performance. Mechanical evaluations check flexibility, sheath strength, and durability. Final visual inspection confirms correct marking and workmanship. Only cables that pass all required tests are approved for shipment.
Application
NPC Electric 6242Y Flat Twin & Earth cables are suitable for internal fixed wiring in homes, offices, commercial buildings, lighting systems, and socket circuits requiring safe grounding and stable power delivery.
