High Voltage / 2XS(F)2Y, A2XS(F)2Y 110kV Power Cable
The 2XS(F)2Y / A2XS(F)2Y 110kV High Voltage Power Cable is engineered for underground high-voltage transmission networks with a maximum operating voltage of 110kV (123kV highest). Built with Class 2 copper or aluminum Milliken conductors, extruded semi-conductive XLPE screens, and XLPE insulation, it ensures excellent electrical performance and long service life. Its copper wire screen with counter-helical copper tape offers enhanced shielding, while the water-swellable tapes provide longitudinal water-blocking. The HDPE outer sheath delivers high abrasion resistance and durability, making it ideal for installation in environments with existing mechanical protection. Manufactured to IEC 60840, HRN HD 632, and IEC/EN 60228 standards, this cable is well-suited for high-load and long-distance transmission applications.
- Voltage Rating(Uo/U)(Um) 64/110kV (123kV)
- Highest Network Voltage 123kV
- Operating Temperature -30°C to +90°C
- Short Circuit Temperature +250°C
- Overload Temperature +130°C (100h per year maximum)
- Minimum Installation Tempe -20°C
Construction
Technical Specifications
Quality Control
Application
Construction

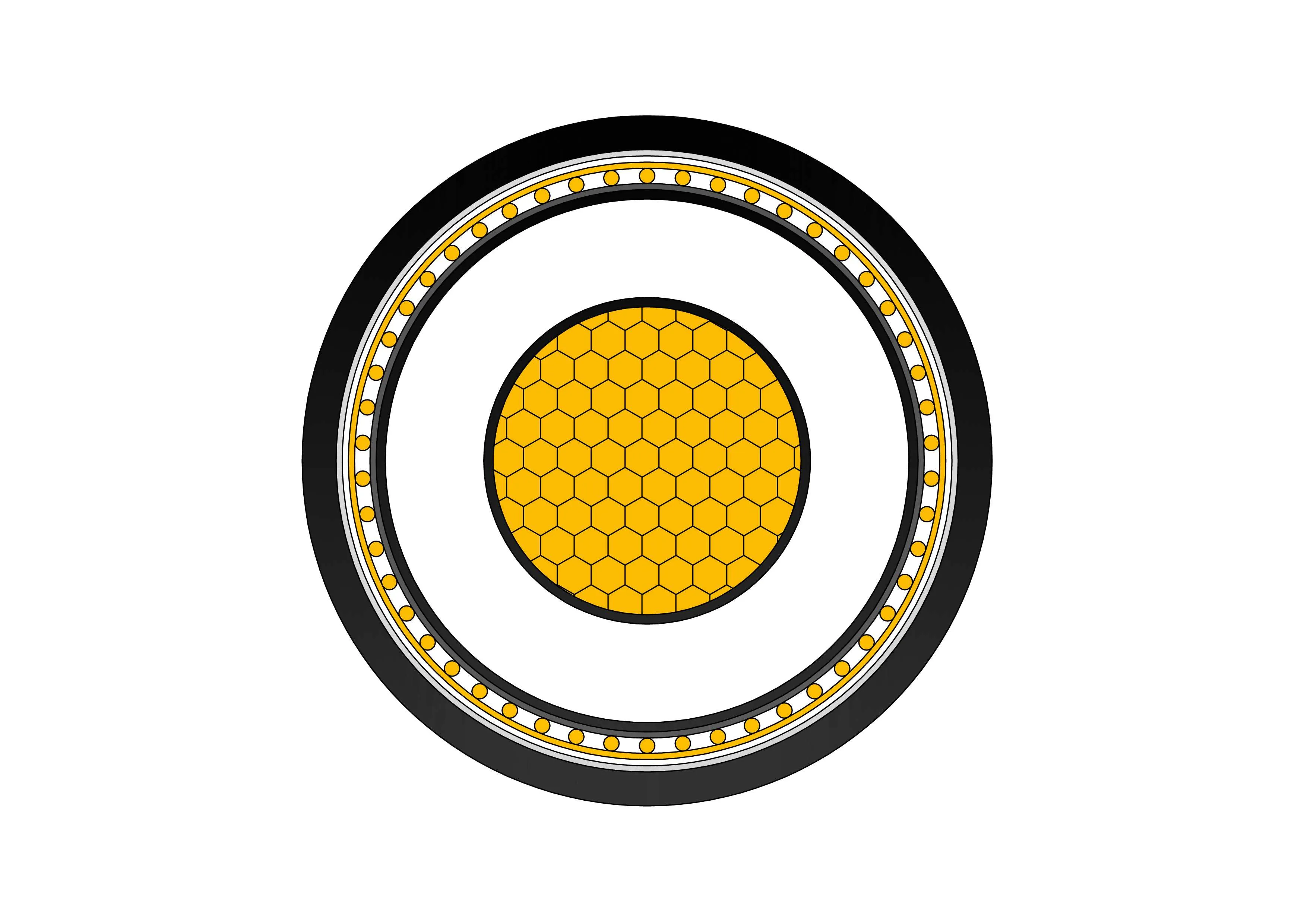

High Voltage / 2XS(F)2Y, A2XS(F)2Y 110kV Power Cable Constrution
Conductor
Class 2 copper or aluminium conductor, compacted or segment strand, Milliken
Insulation
XLPE (Cross-Linked Polyethylene)
Conductor Screen
Extruded semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation Screen
Extruded Semi-conductive XLPE (Cross-Linked Polyethylene)
Separator
Water-swellable semi-conductive tape
Screen
Copper wire screen, with a counter helix of copper tape
Sheath
HDPE (High-Density Polyethylene)
Sheath Colour
Black
Manufacturer Standard
IEC 60840, HRN HD 632, IEC/EN 60228
Application
The 2XS(F)2Y / A2XS(F)2Y 110 kV power cable is suitable for primary distribution systems with a maximum network voltage of 110 kV. It is ideal for installation in locations with existing mechanical protection measures, meeting the reliability and safety requirements of high-voltage power transmission. Its high-density polyethylene outer sheath is both abrasion-resistant and flexible, and can be customized to meet project requirements.
Technical Specifications
High Voltage / 2XS(F)2Y, A2XS(F)2Y 110kV Power Cable
2XS(F)2Y Copper Conductor
A2XS(F)2Y Aluminium Conductor
|
No. Of Cores |
NOMINAL CROSS SECTIONAL AREA mm² |
ELECTRICAL PROTECTION mm² |
NOMINAL DIAMETER OF CONDUCTOR mm |
NOMINAL THICKNESS OF INSULATION mm |
NOMINAL DIAMETER OVER INSULATION mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| 1 | 150 | 95 | 14.1 | 18 | 54.9 | 64.5 | 4910 |
| 1 | 185 | 95 | 15.7 | 17 | 54.5 | 64.1 | 5145 |
| 1 | 240 | 95 | 18 | 16 | 54.8 | 64.4 | 5614 |
| 1 | 300 | 95 | 20.3 | 15 | 55.1 | 64.7 | 6085 |
| 1 | 400 | 95 | 23 | 15 | 57.6 | 67.4 | 7075 |
| 1 | 500 | 95 | 26.5 | 15 | 61.3 | 71.3 | 8185 |
| 1 | 630 | 95 | 30.3 | 15 | 64.5 | 74.8 | 9740 |
| 1 | 800 | 95 | 36.9 | 15 | 71.8 | 82.6 | 11869 |
|
No. Of Cores |
NOMINAL CROSS SECTIONAL AREA mm² |
ELECTRICAL PROTECTION mm² |
NOMINAL DIAMETER OF CONDUCTOR mm |
NOMINAL THICKNESS OF INSULATION mm |
NOMINAL DIAMETER OVER INSULATION mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| 1 | 150 | 95 | 14.1 | 18 | 54.9 | 64.5 | 3995 |
| 1 | 185 | 95 | 15.7 | 17 | 54.5 | 64.1 | 4026 |
| 1 | 240 | 95 | 18 | 16 | 54.8 | 64.4 | 4156 |
| 1 | 300 | 95 | 20.3 | 15 | 55.1 | 64.7 | 4263 |
| 1 | 400 | 95 | 23 | 15 | 57.6 | 67.4 | 4746 |
| 1 | 500 | 95 | 26.5 | 15 | 61.3 | 71.3 | 5287 |
| 1 | 630 | 95 | 30.3 | 15 | 64.5 | 74.8 | 5908 |
| 1 | 800 | 95 | 36.9 | 15 | 71.8 | 82.6 | 6925 |
| 1 | 1000 | 95 | 37.9 | 15 | 72.8 | 84 | 7409 |
| 1 | 1200* | 95 | 44 | 15 | 78 | 90 | 8010 |
Quality Control
High Voltage / 2XS(F)2Y, A2XS(F)2Y 110kV Power Cable
Raw Material Test
Raw Material Test for 2XS(F)2Y & A2XS(F)2Y 110kV Power Cable ensures premium high-voltage quality and long-term reliability. The structured process includes: Supplier Certification Review: Verify stranded copper (2XS(F)2Y) or aluminium (A2XS(F)2Y) conductors meet IEC 60228 class 2 for purity, stranding, and conductivity; XLPE insulation compound certified to IEC 62067/IEC 60840 for electrical and thermal properties. Conductor Analysis: Test copper/aluminium for tensile strength (>200 MPa Cu / >80 MPa Al), elongation (>10–15%), conductivity (≥97% IACS Cu / ≥61% IACS Al), and surface quality (no oxidation/cracks). Semi-Conductive Compound Testing: Semi-conductive conductor and insulation screens evaluated for resistivity (≤1000 Ω·m), adhesion to conductor/insulation, thermal stability, and compatibility to ensure uniform electric field distribution.
Process inspection
Process Inspection during manufacturing of 2XS(F)2Y & A2XS(F)2Y 110kV Power Cable maintains high-voltage integrity and consistency. Steps include: Conductor Stranding: Monitor class 2 stranding for uniform lay length, compactness, and no loose strands. Triple Extrusion: Apply semi-conductive conductor screen, XLPE insulation, and semi-conductive insulation screen in continuous triple extrusion; inline diameter scanners, eccentricity monitors, and spark testers detect voids/defects. Screening Application: Apply concentric copper wire screen and aluminium laminated foil with precise overlap/coverage for effective shielding and grounding. Outer Sheath Extrusion: Extrude PE sheath; real-time checks on thickness, surface finish, adhesion, and sheath integrity. Continuous Monitoring: Track conductor resistance, insulation integrity, screen continuity, overall diameter, and voltage-specific parameters throughout.
Finished Product
Finished Product Test confirms the 2XS(F)2Y & A2XS(F)2Y 110kV Power Cable meets high-voltage standards before shipment. The procedure includes: Visual & Dimensional Inspection: Examine full length for defects, uniformity, markings, and measure outer diameter/weight per meter. Electrical Tests: DC resistance, insulation resistance (>1000 MΩ·km), high-voltage withstand (e.g., 190kV/1h AC or impulse test per IEC 60840), partial discharge (<5 pC), and screen continuity. Mechanical Evaluation: Bending radius (15–20× OD), tensile strength, crush resistance, and impact tests. Sheath & Insulation Performance: Thermal aging (135°C/168h), hot set test, water penetration resistance, environmental stress cracking resistance (ESCR), and UV aging verified. Thermal & Short-Circuit Validation: Confirm ampacity ratings and short-circuit withstand at 250°C for 1 s.
Application
The 2XS(F)2Y & A2XS(F)2Y 110kV Power Cable is perfect for 110 kV high-voltage transmission lines, underground distribution networks, substation interconnections, industrial power supply, wind/solar farm connections, and long-distance power transport requiring XLPE-insulated, screened, moisture-resistant HV cable with high electrical and mechanical performance.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
