NSSHOU O/J, NSSHOU 3E, NSSHOU 3E + ST 0.6/1 kV Cable
The NSSHOU O/J, NSSHOU 3E, and NSSHOU 3E + ST 0.6/1 kV Cables are heavy-duty, flexible rubber-insulated mining cables designed for safe and reliable power transmission in harsh mining and industrial environments. These cables are commonly used for mobile and fixed mining equipment, including conveyors, cutting machines, drilling systems, and underground power distribution. NSSHOU O/J cables provide excellent flexibility and mechanical strength, while NSSHOU 3E cables incorporate a protective earth conductor for enhanced safety. The NSSHOU 3E + ST version includes additional steel tape (ST) reinforcement, offering improved resistance to crushing, impact, and mechanical stress. All cable types feature finely stranded copper conductors, high-performance rubber insulation, and durable outer sheaths resistant to abrasion, oil, moisture, and environmental aging. Manufactured under strict quality control procedures, each NSSHOU cable undergoes raw material testing, process inspection, and finished product testing to ensure compliance with mining standards and long-term operational reliability.
- Voltage Rating Uo/U 0.6/1 kV
- Test Voltage 3 kV
-
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -25°C to +80°C -
Minimum Bending Radius
Fixed: 6 x overall diameter
Flexed: 10 x overall diameter - Maximum Short Circuit Temperature +250°C
- Submersible 100 m
Construction
Technical Specifications
Quality Control
Application
Construction

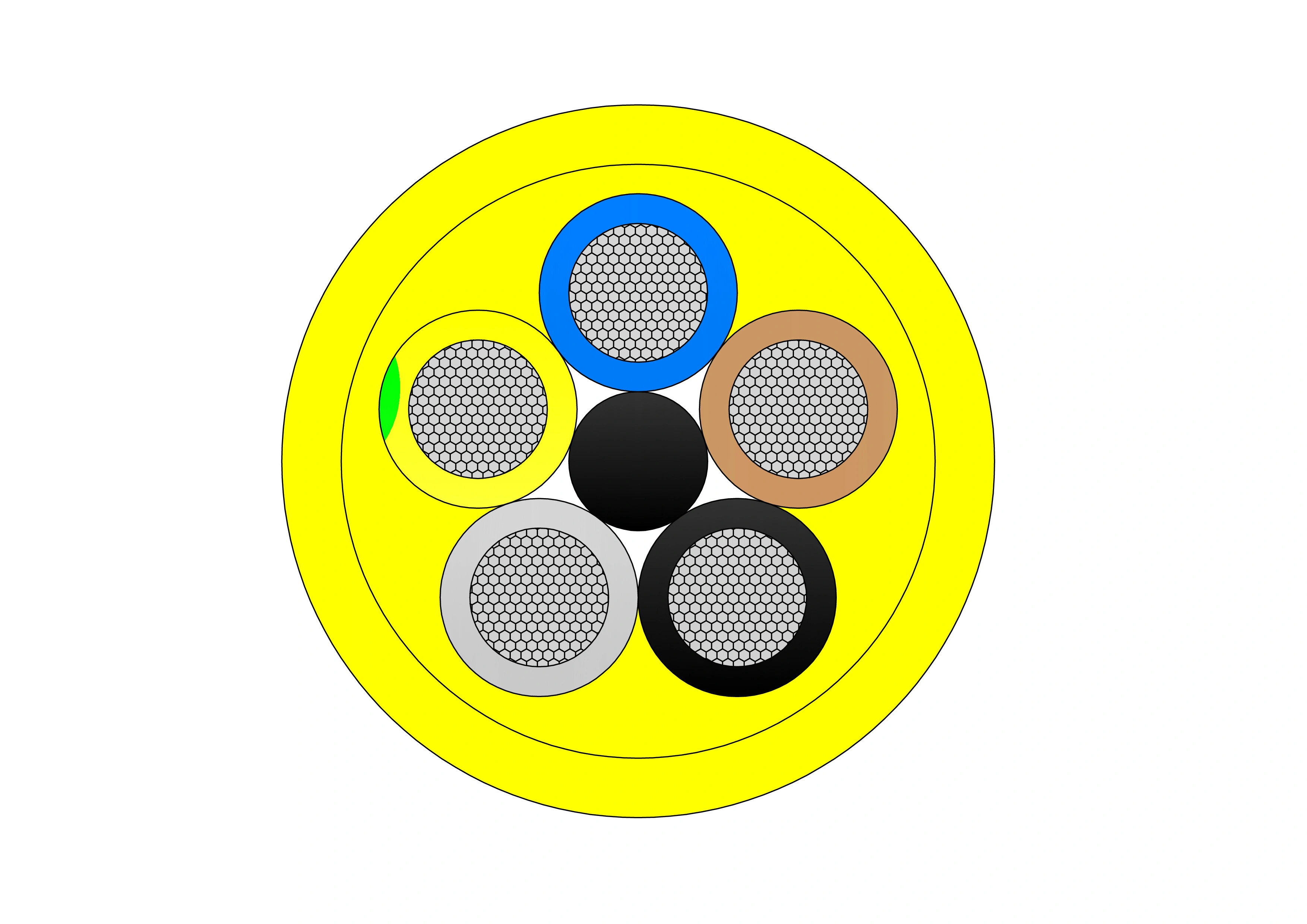

(N)SHOU O/J - 0.6/1kV Cable Constrution
Conductor
Class 5 flexible copper
Insulation
Rubber compound Type 3Gl3
Individual Core Screen
Copper braid up to 10mm², copper wires from 16mm²
Control Conductor
Class 5 flexible tinned copper conductor
Inner Sheath
Rubber compound Type GM1b
Outer Sheath
Rubber compound Type 5GM5
Sheath Colour
Yellow
Manufacturer Standard
VDE 0250 Part 812, VDE 0295, EN 60228
Flame Retardant
IEC/EN 60332-1-2
Note
*Available with control conductors and individual core screen upon request
Application
NSSHOU cables are used for power supply in dynamic or static applications exposed to extreme mechanical stress, including mining, tunneling, and heavy industrial environments. They are suitable for indoor and outdoor use, and can be permanently submerged in various types of water up to 100 meters deep.
Technical Specifications
NSSHOU O/J, NSSHOU 3E, NSSHOU 3E + ST 0.6/1 kV Cable
NSSHOU O/J, NSSHOU 3E, NSSHOU 3E + ST 0.6/1 kV Cable
| No of Cores |
Nominal Cross Section Area |
CONDUCTOR DIAMETER |
MINIMUM OVERALL DIAMETER |
MAXIMUM OVERALL DIAMETER |
NOMINAL WEIGHT |
| 1 | 1.5 | 1.5 | 6.3 | 7 | 60 |
| 1 | 2.5 | 1.9 | 7 | 7.7 | 75 |
| 1 | 4 | 2.4 | 7.6 | 8.3 | 95 |
| 1 | 6 | 2.9 | 8.2 | 8.9 | 120 |
| 1 | 10 | 3.8 | 9.5 | 10.2 | 180 |
| 1 | 16 | 4.8 | 10.5 | 11.2 | 245 |
| 1 | 25 | 6.1 | 13 | 13.7 | 375 |
| 1 | 35 | 7.2 | 14.1 | 14.8 | 480 |
| 1 | 50 | 8.9 | 16.2 | 16.9 | 660 |
| 1 | 70 | 10.6 | 18.3 | 19 | 875 |
| 1 | 95 | 12.5 | 20.5 | 21.7 | 1150 |
| 1 | 120 | 14.2 | 22.8 | 24 | 1430 |
| 1 | 150 | 15.9 | 25 | 26.2 | 1750 |
| 1 | 185 | 17.7 | 28.2 | 29.4 | 2180 |
| 1 | 240 | 20.1 | 31.1 | 32.3 | 2770 |
| 1 | 300 | 22.5 | 34.9 | 36.1 | 3510 |
| 3 | 1.5 | 1.5 | 11.7 | 12.3 | 190 |
| 3 | 2.5 | 1.9 | 13.1 | 13.7 | 255 |
| 3 | 4 | 2.4 | 15.6 | 16.2 | 375 |
| 3 | 6 | 2.9 | 16.8 | 17.4 | 465 |
| 3 | 10 | 3.8 | 20.2 | 21.3 | 710 |
| 3 | 16 | 4.8 | 22.3 | 23.4 | 930 |
| 3 | 25 | 6.1 | 26.9 | 28 | 1390 |
| 3 | 35 | 7.2 | 30.2 | 31.4 | 1880 |
| 3 | 50 | 8.9 | 35.8 | 37 | 2590 |
| 3 | 70 | 10.6 | 39.3 | 40.5 | 3460 |
| 3 | 95 | 12.5 | 45.7 | 47.4 | 4570 |
| 3 | 120 | 14.2 | 48.2 | 49.9 | 5220 |
| 3 | 150 | 15.9 | 52.6 | 54.4 | 6460 |
| 3 | 185 | 17.7 | 58.7 | 61 | 7980 |
| 4 | 1.5 | 1.5 | 12.5 | 13.1 | 225 |
| 4 | 2.5 | 1.9 | 15.3 | 15.9 | 350 |
| 4 | 4 | 2.4 | 16.7 | 17.3 | 440 |
| 4 | 6 | 2.9 | 18.1 | 18.7 | 550 |
| 4 | 10 | 3.8 | 21.9 | 23 | 860 |
| 4 | 16 | 4.8 | 25.2 | 26.3 | 1210 |
| 4 | 25 | 6.1 | 30.6 | 31.8 | 1810 |
| 4 | 35 | 7.2 | 32.8 | 34 | 2330 |
| 4 | 50 | 8.9 | 39 | 40.2 | 3300 |
| 4 | 70 | 10.6 | 42.8 | 44.5 | 4300 |
| 4 | 95 | 12.5 | 49.9 | 51.7 | 5680 |
| 4 | 120 | 14.2 | 55.6 | 57.4 | 6820 |
| 4 | 150 | 15.9 | 60.6 | 62.9 | 8270 |
| 4 | 185 | 17.7 | 67.4 | 69.7 | 10350 |
| 5 | 1 | 1.5 | 13.4 | 14 | 270 |
| 5 | 2 | 1.9 | 16.4 | 17 | 410 |
| 5 | 4 | 2.4 | 18 | 18.6 | 525 |
Quality Control
NSSHOU O/J, NSSHOU 3E, NSSHOU 3E + ST 0.6/1 kV Cable
Raw Material Test
Raw material testing is the foundation of quality assurance for NSSHOU O/J, NSSHOU 3E, and NSSHOU 3E + ST 0.6/1 kV Cables. Copper conductors are tested for electrical conductivity, tensile strength, elongation, and flexibility to ensure stable current transmission and resistance to repeated bending during mining operations. Rubber insulation and sheath compounds are evaluated through tensile strength, elongation, tear resistance, abrasion resistance, and hardness tests. These tests confirm that the materials can withstand heavy mechanical stress and continuous movement. Thermal aging tests assess long-term stability under elevated operating temperatures. Oil resistance and chemical resistance tests ensure that insulation and sheath materials maintain performance when exposed to lubricants, fuels, and mining chemicals.
Process inspection
Process inspection ensures consistent manufacturing quality of NSSHOU O/J, NSSHOU 3E, and NSSHOU 3E + ST 0.6/1 kV Cables throughout all production stages. During conductor stranding, inspections verify strand structure, compactness, conductor diameter, and flexibility. During rubber insulation extrusion and vulcanization, temperature, pressure, and curing time are continuously monitored. Insulation thickness, concentricity, and surface quality are measured in real time. Spark testing is applied to detect insulation defects and ensure electrical integrity. For NSSHOU 3E + ST cables, steel tape armoring is inspected for overlap consistency, coverage rate, and mechanical stability. Outer sheath extrusion is monitored for thickness uniformity, adhesion strength, and surface smoothness.
Finished Product
Finished product testing validates the overall quality and safety of NSSHOU O/J, NSSHOU 3E, and NSSHOU 3E + ST 0.6/1 kV Cables prior to shipment. Electrical tests include conductor resistance measurement and voltage withstand testing to confirm compliance with rated voltage requirements. Mechanical tests assess tensile strength, bending performance, impact resistance, and abrasion resistance. For armored NSSHOU 3E + ST cables, additional crushing and impact tests verify reinforcement effectiveness. Thermal aging tests confirm long-term stability, while oil and moisture resistance tests simulate real mining conditions. Dimensional inspections verify conductor size, insulation thickness, armor structure, and sheath thickness. Flame propagation tests are conducted to meet mining safety standards.
Application
NSSHOU O/J, NSSHOU 3E, and NSSHOU 3E + ST 0.6/1 kV cables are used for power supply to mining machinery in underground mines, tunnels, open-pit mines, and heavy industrial environments requiring flexible and reinforced rubber cables.
Technical Advantages
● 30+ years of manufacturing experience
● ISO and UL certified production
● Customized cable and transformer solutions
Product Packaging
Wires and Cables packaging (1)
Wires and Cables packaging (2)
Wires and Cables packaging (3)
Wires and Cables packaging (4)
Wires and Cables packaging (5)
Wires and Cables packaging (6)
Wires and Cables packaging (7)
Wires and Cables packaging (8)
