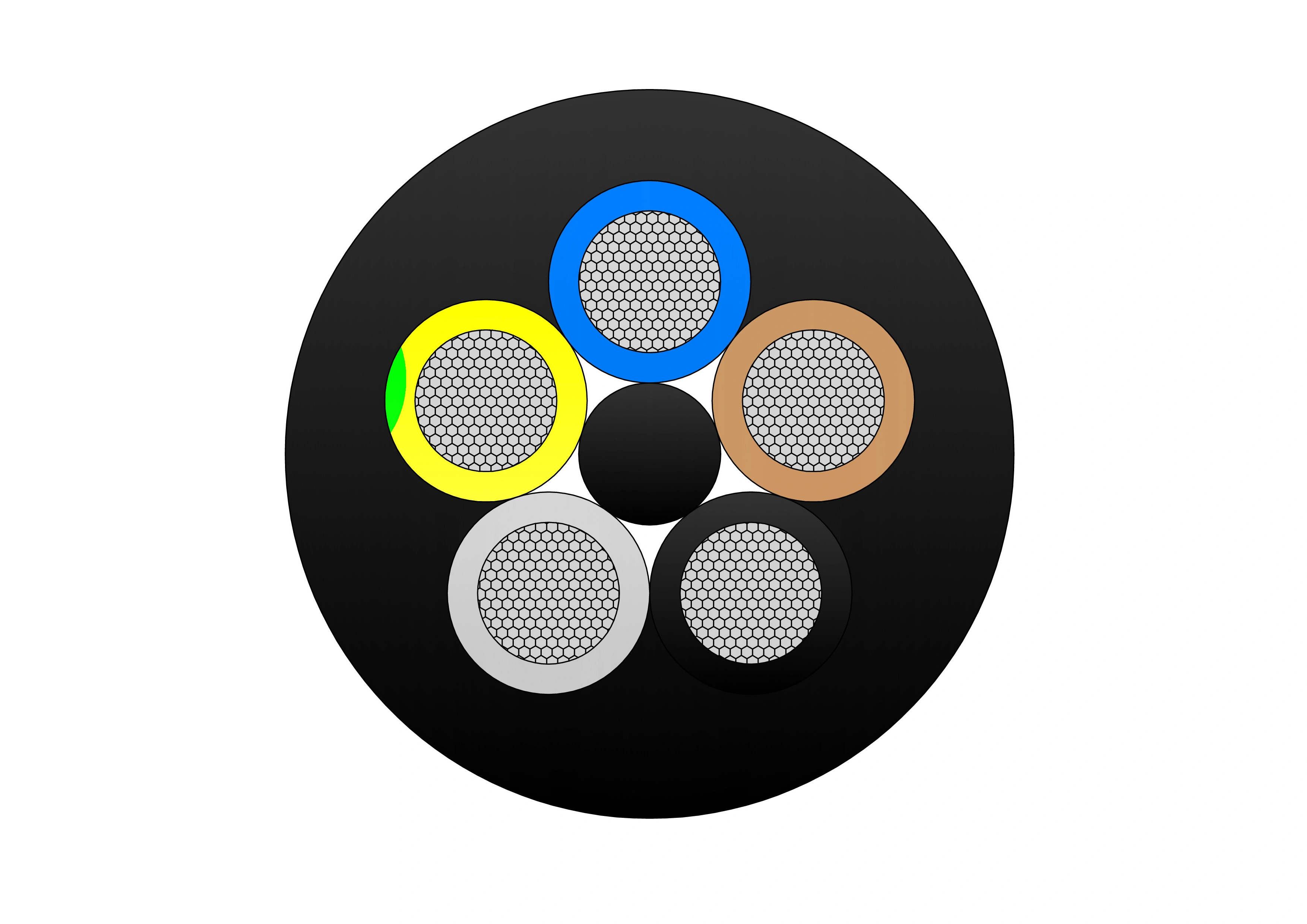

(N)SHTOU-O/J PUR 0.6/1kV Cable
(N)SHTOU-O/J PUR 0.6/1kV cable is a flexible, rubber-insulated low voltage power and control cable manufactured according to VDE 0250 standards. Designed for harbour cranes, conveyors, mining equipment, and other heavy-duty mobile machinery, it offers exceptional mechanical strength, oil resistance, flame retardancy, and flexibility under high dynamic loads. Its halogen-free polyurethane (PUR) sheath ensures outstanding abrasion resistance, long service life, and reliable performance in demanding indoor and outdoor environments. Capable of withstanding torsional stress, high tensile loads, and fast operating speeds, this cable is ideal for applications requiring durability and operational safety.
- Voltage Rating Uo/U 0.6/1 kV
- Test Voltage 4 kV
- Maximum Torsional Stress ± 25°/m
- Maximum Tensile Load 30 N/m㎡
- Maximum Working Speed 180 m/min
-
Temperature Rating
Flexing: -40°C to 90°C
Flexed: -50°C to 90°C -
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Construction
Technical Specifications
Quality Control
Application
Construction
(N)SHTOU-O/J PUR 0.6/1kV Cable Constrution
SHTOU-mining-cable-standard.webp)
Conductor
Class 5 Flexible Tinned Copper
Insulation
Rubber compound
Inner Sheath
Halogen free PUR (Polyurethane)
Outer Sheath
Halogen free PUR (Polyurethane)
Sheath Colour
Black
Manufacturer Standard
VDE 0240 Part 814, VDE 0295, IEC 60228, VDE 0250, VDE 0293, VDE 0207, VDE 0298, IEC 60811-404,IEC 60811-403, ISO 4892-2
Flame Retardant
IEC/EN 60332-1-2
Core Identification
3 Core: Green/Yellow ● Blue ● Brown
4 Core: Green/Yellow ● Brown ● Black ● Grey
5 Core: Green/Yellow ● Blue ● Brown ● Black Grey
Note:
(N)SHTOU-O is available without a Green/Yellow core
4 Core: Green/Yellow ● Brown ● Black ● Grey
5 Core: Green/Yellow ● Blue ● Brown ● Black Grey
Note:
(N)SHTOU-O is available without a Green/Yellow core
Application
(N)SHTOU-O/J PUR 0.6/1kV cable is used for power and control connections in heavy-duty mobile equipment such as harbour cranes, conveyors, and mining machinery. Its halogen-free polyurethane sheath ensures excellent mechanical strength, flexibility, and abrasion resistance under high mechanical stress.
Technical Specifications
(N)SHTOU-O/J PUR 0.6/1kV Cable
(N)SHTOU-O/J PUR 0.6/1kV Cable
| No of Cores |
Nominal Cross Section Area mm² |
NOMINAL DIAMETER OF CONDUCTOR mm |
NOMINAL OVERALL DIAMETER mm |
MAXIMUM TENSILE LOAD N |
NOMINAL WEIGHT kg/km |
| 3 | 25+16 | 6.9 | 27.3 | 2250 | 1390 |
| 3 | 35+16 | 7.8 | 29.8 | 3150 | 1740 |
| 3 | 50+25 | 9.3 | 35 | 4500 | 2470 |
| 3 | 70+35 | 11.1 | 38.9 | 6300 | 3290 |
| 3 | 95+50 | 12.7 | 43.2 | 8550 | 4090 |
| 3 | 120+70 | 14.5 | 47.1 | 10800 | 5220 |
| 3 | 150+70 | 16.7 | 53.7 | 13500 | 6460 |
| 3 | 185+95 | 17.6 | 57.3 | 16650 | 7720 |
| 4G | 1.5 | 1.5 | 11.7 | 2180 | 170 |
| 4G | 2.5 | 1.9 | 19.9 | 2300 | 220 |
| 4G | 4 | 2.4 | 16.7 | 480 | 380 |
| 4G | 6 | 2.9 | 18.2 | 720 | 490 |
| 4G | 10 | 3.8 | 21.5 | 1200 | 720 |
| 4G | 16 | 4.8 | 24 | 1920 | 990 |
| 4G | 25 | 6.9 | 30.7 | 3000 | 1610 |
| 4G | 35 | 7.8 | 33.7 | 4200 | 2090 |
| 4G | 50 | 9.3 | 38.2 | 6000 | 2830 |
| 4G | 70 | 11.1 | 43.6 | 8400 | 3720 |
| 4G | 95 | 12.7 | 47.5 | 11400 | 4770 |
| 4G | 120 | 14.5 | 52.7 | 14400 | 6040 |
| 4G | 150 | 16.7 | 59 | 18000 | 7520 |
| 5G | 1.5 | 1.5 | 12.3 | 225 | 190 |
| 5G | 2.5 | 1.9 | 13.7 | 2375 | 260 |
| 5G | 4 | 2.4 | 18 | 600 | 460 |
| 5G | 6 | 2.9 | 19.6 | 900 | 590 |
| 5G | 10 | 3.8 | 23.4 | 1500 | 870 |
| 5G | 16 | 4.8 | 36 | 2400 | 1200 |
| 5G | 25 | 6.9 | 33.4 | 3750 | 1970 |
| 5G | 35 | 7.8 | 36.5 | 5250 | 2560 |
| 7G | 1.5 | 1.5 | 14.1 | 2315 | 260 |
| 7G | 2.5 | 1.9 | 15.8 | 2525 | 360 |
| 12G | 1.5 | 1.5 | 17.9 | 2540 | 450 |
| 12G | 2.5 | 1.9 | 20.4 | 2900 | 590 |
| 18G | 1.5 | 1.5 | 18.3 | 2810 | 480 |
| 18G | 2.5 | 1.9 | 20.8 | 3350 | 660 |
| 24G | 1.5 | 1.5 | 20.9 | 3080 | 630 |
| 24G | 2.5 | 1.9 | 24 | 3800 | 910 |
| 30G | 1.5 | 1.5 | 22.9 | 3350 | 770 |
| 30G | 2.5 | 1.9 | 26.4 | 4250 | 1120 |
| 36G | 1.5 | 1.5 | 23.3 | 3620 | 800 |
| 36G | 2.5 | 1.9 | 26.8 | 4700 | 1170 |
| 42G | 1.5 | 1.5 | 24.8 | 3890 | 910 |
| 42G | 2.5 | 1.9 | 29.3 | 5150 | 1390 |
Quality Control
(N)SHTOU-O/J PUR 0.6/1kV Cable
Raw Material Test
Raw Material Test for 0.6/1kV (N)SHTOU-O/J PUR Crane Reeling Cable prioritizes quality for dynamic use. Steps include: Certification Verification: Tinned copper and rubber/PUR compounds meet VDE/IEC standards. Conductor Testing: Tensile, elongation, conductivity, and tin coating analysis. Compound Evaluation: Rubber insulation for dielectric/thermal properties; PUR for abrasion, tear, oil resistance, halogen-free. Braid Check: Polyester anti-torsion braid strength verified. Dimensional & Chemical Tests: Sizes measured; aging/oil/ozone resistance confirmed. Batch Rejection: Non-compliant quarantined. Approved materials ensure the 0.6/1kV (N)SHTOU-O/J PUR Crane Reeling Cable's flexibility and toughness.
Process inspection
Process Inspection for 0.6/1kV (N)SHTOU-O/J PUR Crane Reeling Cable enforces precision. The procedure features: Stranding Control: Uniform class 5 copper.Extrusion Monitoring: Rubber insulation and PUR sheath with defect sensors. Braid Embedding: Precise anti-torsion integration. Ongoing Checks: Resistance, diameter, integrity. Optimization: Extrusion parameters adjusted. Correction: Immediate fixes. This guarantees the 0.6/1kV (N)SHTOU-O/J PUR Crane Reeling Cable excels in torsional and mechanical demands.
Finished Product
Finished Product Test validates the 0.6/1kV (N)SHTOU-O/J PUR Crane Reeling Cable for deployment. Steps include: Inspection: Visual/dimensional/marking verification. Electrical: Resistance, insulation, withstand tests.Mechanical: Bending, tensile, torsional, abrasion checks. Sheath Durability: Oil, chemical, UV resistance.Dynamic Simulation: Reeling cycle and temperature validation. Release: Only passing 0.6/1kV (N)SHTOU-O/J PUR Crane Reeling Cable approved for reliable heavy-duty use.
Application
Ideal for (N)SHTOU-O/J PUR 0.6/1kV Cable in harbour cranes, container handling, festoon systems, drum reeling on conveyors, mining/tunneling machinery, and mobile equipment requiring torsion-resistant, abrasion-proof cable for safe, long-term operation in harsh industrial settings.
