(N)SHOU O/J - 0.6/1kV Mining Cable
The (N)SHOU O/J - 0.6/1kV flexible rubber-insulated cable is engineered according to VDE 0250 standards for reliable power supply in harsh environments such as underground mining, tunneling, and heavy-duty industrial sites. Its robust construction features Class 5 flexible copper conductors, durable rubber insulation, and a heavy-duty rubber outer sheath, delivering excellent mechanical strength, oil resistance, and flame retardancy. Designed for both fixed and flexible installations, the cable operates within a wide temperature range (-40°C to +80°C fixed) and withstands short-circuit temperatures up to +250°C. It is ideal for powering mobile equipment, submersible pumps, and industrial machinery in mining operations, particularly where abrasion resistance and safety are essential.
- Voltage Rating Uo/U 0.6/1 kV
- Test Voltage 3 kV
-
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -25°C to +80°C -
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter - Maximum Short Circuit Temperature +250°C
Construction
Technical Specifications
Quality Control
Application
Construction

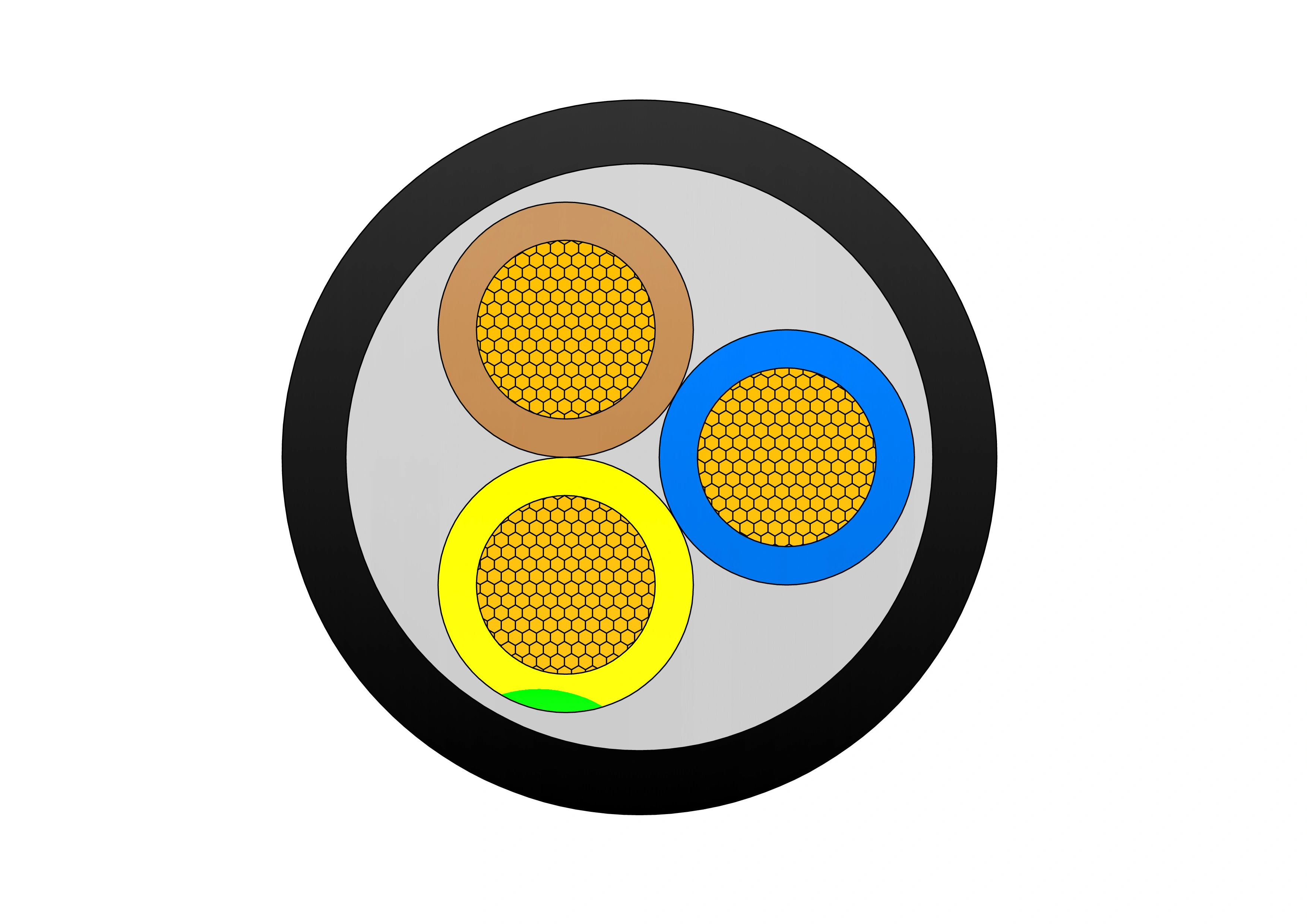

(N)SHOU O/J - 0.6/1kV Cable Constrution
SHOUOJ-mining-cable-standard.webp)
Conductor
Class 5 flexible copper
Insulation
Rubber compound
Inner Sheath
Rubber compound
Outer Sheath
Heavy duty rubber compound
Sheath Colour
Black
Manufacturer Standard
VDE 0250 Part 812, VDE 0295, EN 60228
Flame Retardant
IEC/EN 60332-1-2
Application
(N)SHOU O/J - 0.6/1kV cable is used for energy supply to mobile equipment, industrial machinery, and submersible pumps in mining environments, especially alongside conveyor systems. It is suitable for both indoor and outdoor use, offering resistance to abrasion, oils, and flames.
Technical Specifications
(N)SHOU O/J - 0.6/1kV Mining Cable
(N)SHOU O/J - 0.6/1kV Cable
| NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA |
CONDUCTOR DIAMETER |
MINIMUM OVERALL DIAMETER |
MAXIMUM OVERALL DIAMETER |
MAXIMUM TENSILE LOAD |
NOMINAL WEIGHT |
| mm2 | mm | mm | mm | N | kg/km | |
| 3 | 1.5 | 1.5 | 9.7 | 10.3 | 68 | 141 |
| 3 | 2.5 | 1.9 | 11.1 | 11.7 | 113 | 200 |
| 3 | 4 | 2.4 | 13.2 | 13.8 | 180 | 297 |
| 3 | 6 | 2.9 | 14.4 | 15 | 270 | 381 |
| 3 | 10 | 3.8 | 17.4 | 18.5 | 450 | 590 |
| 3 | 16 | 4.8 | 19.5 | 20.6 | 720 | 797 |
| 3 | 25 | 6.1 | 23.7 | 24.8 | 1125 | 1206 |
| 3 | 35 | 7.2 | 26.6 | 27.7 | 1575 | 1649 |
| 3 | 50 | 8.9 | 31.8 | 33 | 2250 | 2195 |
| 3 | 70 | 10.6 | 35.3 | 36.5 | 3150 | 3124 |
| 3 | 95 | 12.3 | 40.9 | 42.6 | 4275 | 4100 |
| 3 | 120 | 13.8 | 43.4 | 45.1 | 5400 | 4723 |
| 3 | 150 | 15.5 | 47.8 | 49.5 | 6750 | 5916 |
| 3 | 185 | 17 | 53.1 | 55.4 | 8325 | 7271 |
| 4 | 1.5 | 1.5 | 10.5 | 11.1 | 90 | 173 |
| 4 | 2.5 | 1.9 | 12.9 | 13.5 | 150 | 274 |
| 4 | 4 | 2.4 | 14.3 | 14.9 | 240 | 356 |
| 4 | 6 | 2.9 | 15.7 | 16.3 | 360 | 459 |
| 4 | 10 | 3.8 | 19.1 | 20.2 | 600 | 729 |
| 4 | 16 | 4.8 | 22 | 23.1 | 960 | 1038 |
| 4 | 25 | 6.1 | 27 | 28.1 | 1500 | 1576 |
| 4 | 35 | 7.2 | 29.2 | 30.4 | 2100 | 2078 |
| 4 | 50 | 8.9 | 35 | 36.2 | 3000 | 2967 |
| 4 | 70 | 10.6 | 38.8 | 40.5 | 4200 | 3931 |
| 4 | 95 | 12.3 | 45.1 | 46.8 | 5700 | 5165 |
| 4 | 120 | 13.8 | 50 | 51.8 | 7200 | 6152 |
| 4 | 150 | 15.5 | 55 | 57.3 | 9000 | 7537 |
| 4 | 185 | 17 | 61 | 63.3 | 11100 | 9420 |
| 5 | 1.5 | 1.5 | 11.4 | 12 | 113 | 214 |
| 5 | 2.5 | 1.9 | 14 | 14.6 | 188 | 328 |
| 5 | 4 | 2.4 | 15.6 | 16.2 | 300 | 434 |
| 5 | 6 | 2.9 | 17.5 | 18.6 | 450 | 594 |
| 5 | 10 | 3.8 | 20.9 | 22 | 750 | 898 |
| 5 | 16 | 4.8 | 24.1 | 25.2 | 1200 | 1283 |
| 5 | 25 | 6.1 | 29.6 | 30.8 | 1875 | 1965 |
| 7 | 1.5 | 1.5 | 14.5 | 15.1 | 158 | 313 |
| 7 | 2.5 | 1.9 | 16.8 | 17.4 | 263 | 461 |
| 12 | 1.5 | 1.5 | 16.8 | 17.4 | 270 | 422 |
| 12 | 2.5 | 1.9 | 19.5 | 20.6 | 450 | 653 |
| 18 | 1.5 | 1.5 | 19.4 | 20.5 | 405 | 613 |
| 18 | 2.5 | 1.9 | 23.3 | 24.4 | 675 | 922 |
| 24 | 1.5 | 1.5 | 20.9 | 22 | 540 | 752 |
| 24 | 2.5 | 1.9 | 25.2 | 26.3 | 900 | 1147 |
Quality Control
(N)SHOU O/J - 0.6/1kV Mining Cable
Raw Material Test
NPC has always chosen raw material suppliers who have a good reputation, possess stable supply capabilities and have passed international quality system certifications (such as ISO 9001). And establish a long-term cooperative relationship with it, forming a stable and reliable raw material supply chain.
We will ensure that all raw materials are subject to strict inspection procedures upon entry to the factory, and can only be stored in the warehouse after they have been confirmed to meet the standards.
Process inspection
NPC has strict quality control procedures for each process in the cable production process.
Process documents: Develop detailed process flow and operation instructions to clarify the operating specifications and quality standards of each process.
Equipment calibration: Regularly calibrate key equipment such as wire drawing machines, stranding machines, extruders, and diameter gauges to ensure that the accuracy meets the requirements.
First piece confirmation: Before each batch of production, the first piece is trial-produced to confirm that the process parameters, product dimensions, electrical performance, etc. meet the standards before mass production can be carried out.
Finished Product
Inspectors conduct ex-factory inspections on cables according to relevant standards and corresponding product inspection specifications to ensure that each ex-factory product complies with the process regulations.
Application
(N)SHOU O/J - 0.6/1kV cable is used for energy supply to mobile equipment, industrial machinery, and submersible pumps in mining environments, especially alongside conveyor systems. It is suitable for both indoor and outdoor use, offering resistance to abrasion, oils, and flames.
